JZX100-BTPSF (1996)

Toyota Chaser

Production Sep 1996 - Aug 1998
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

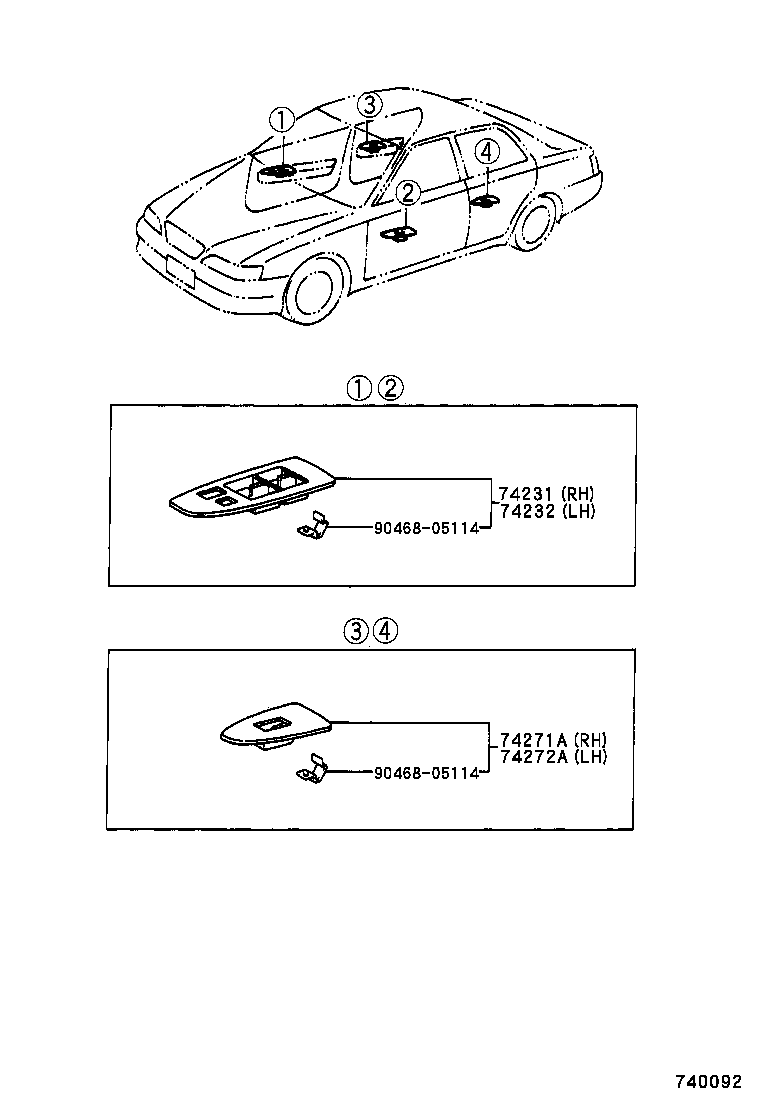

ILLUST NO. 1 OF 2(9609- )

Click highlighted areas on diagram

diagram 74231 74232 74271A 74272A 9046805114 9046805114
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-22320

GX100,JZX100..TOU,TOUS,TOUV

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-22250

GX100,JZX100..TOU,TOUS,TOUV

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-22190

GX100,JZX100..TOU,TOUS,TOUV

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-22190

GX100,JZX100..TOU,TOUS,TOUV

 1
Common parts
90468-05114

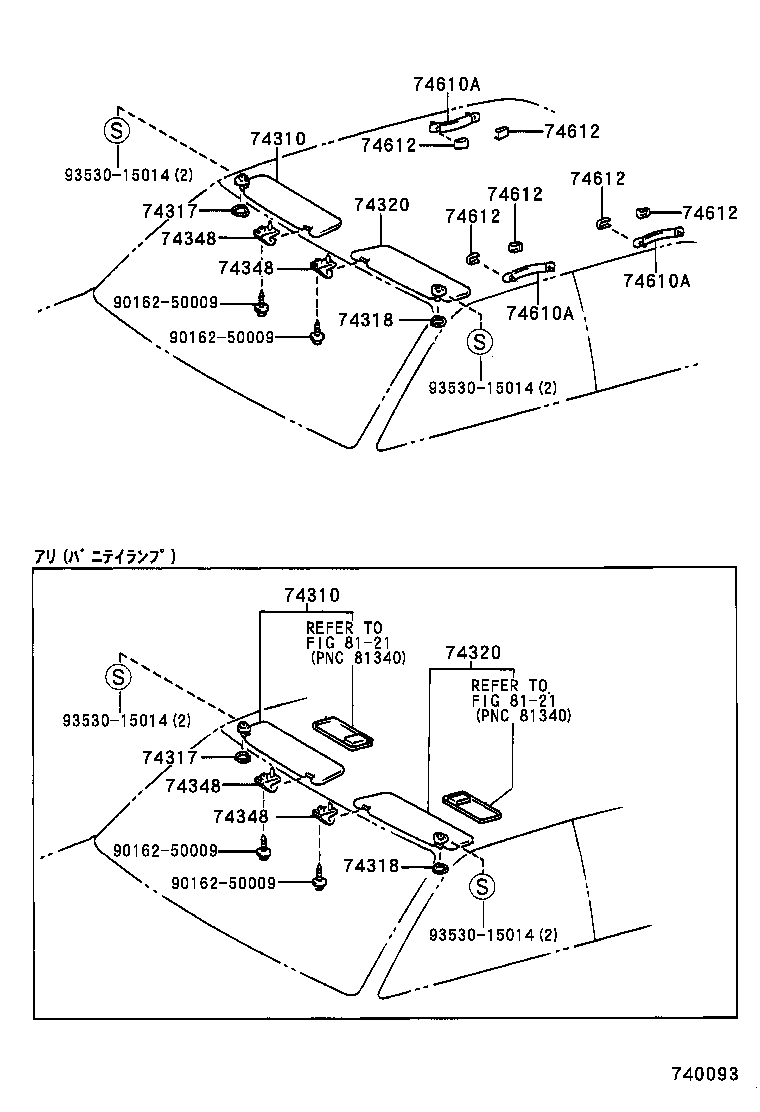

ILLUST NO. 2 OF 2(9609- )

Click highlighted areas on diagram

diagram 74310 74310 74317 74317 74318 74318 74320 74320 74348 74348 74348 74348 74610A 74610A 74610A 74612 74612 74612 74612 74612 74612 8121 8121 9016250009 9016250009 9016250009 9016250009 9353015014 9353015014 9353015014 9353015014
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-22531B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74310-22530B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-22531B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74310-22530B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74317 - COVER, VISOR BRACKET, RH
74317-22030B1

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74317 - COVER, VISOR BRACKET, RH
74317-22030B1

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74318 - COVER, VISOR BRACKET, LH
74317-22030B1

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74318 - COVER, VISOR BRACKET, LH
74317-22030B1

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-22710B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74320-22711B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-22710B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74320-22711B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-30020B1

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 2
74348 - HOLDER, VISOR
74348-30020B1

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 2
74348 - HOLDER, VISOR
74348-30020B1

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 2
74348 - HOLDER, VISOR
74348-30020B1

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-22110B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-22110B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-22110B0

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 3
74612 - COVER, ASSIST GRIP
74612-22050B5

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 6
74612 - COVER, ASSIST GRIP
74612-22050B5

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 6
74612 - COVER, ASSIST GRIP
74612-22050B5

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 6
74612 - COVER, ASSIST GRIP
74612-22050B5

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 6
74612 - COVER, ASSIST GRIP
74612-22050B5

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 6
74612 - COVER, ASSIST GRIP
74612-22050B5

GX100,JZX100..TOU,TOUS,TOUV

BLUE GRAY,TRIM1#

 6
Common parts
90162-50009
93530-15014
Linked diagrams
8121
