JZX100-BTPSF (1996)
Toyota Chaser
(9609- )JZX10# ; (9908- )GX10#..4FC..AVT
ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ)

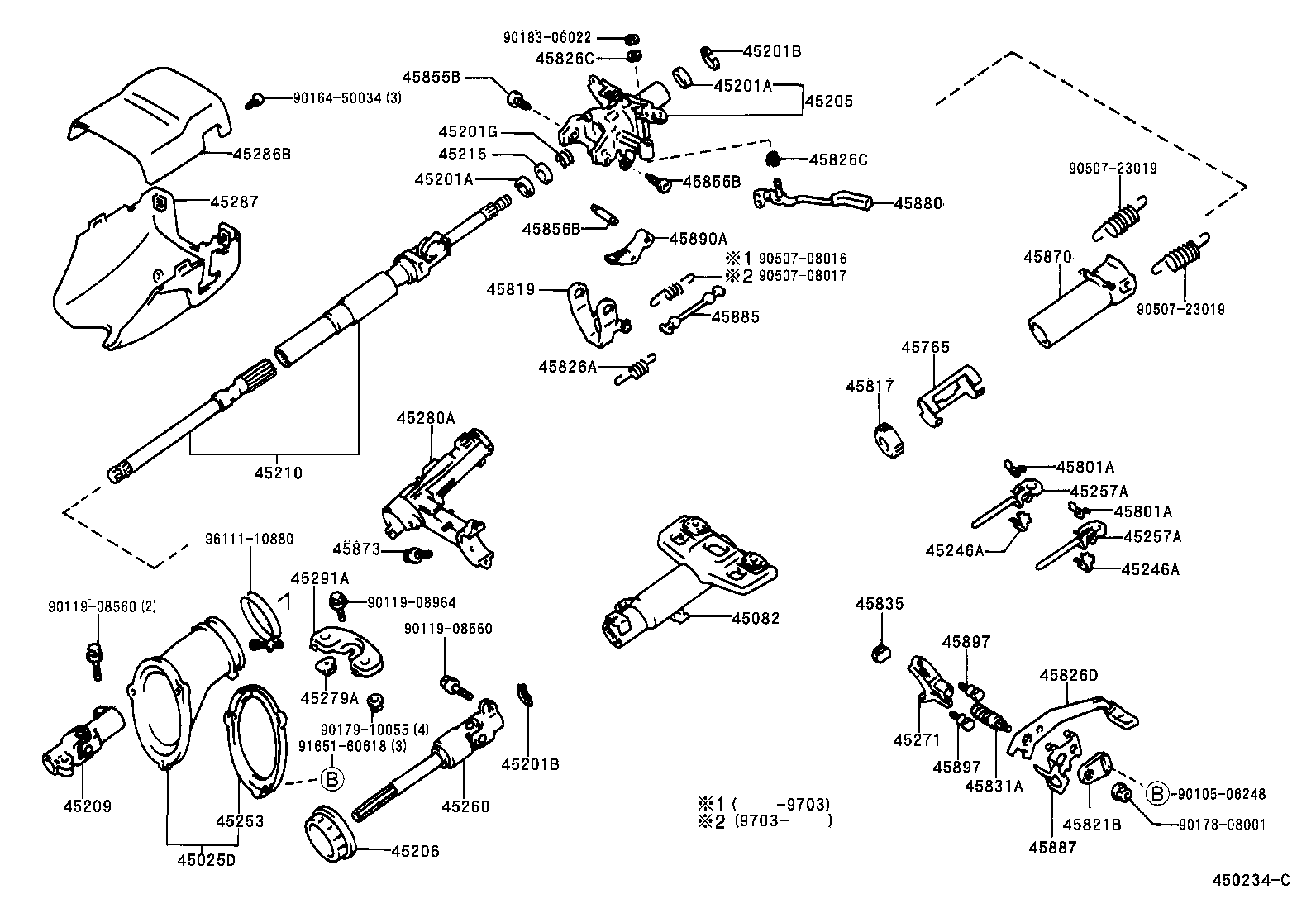

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-22120 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-22120 |
JZX10# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
GX100,JZX100,101,LX100,SX100 |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
GX100,JZX100,101,LX100,SX100 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-16005 |
JZX10# 厚さ=2.00 |
1 | ||
| 90905-20003 |
JZX10# 厚さ=0.5 |
1 | ||
| 90520-17042 |
GX100,JZX10#,LX100,SX100 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-16005 |
JZX10# 厚さ=2.00 |
1 | ||
| 90905-20003 |
JZX10# 厚さ=0.5 |
1 | ||
| 90520-17042 |
GX100,JZX10#,LX100,SX100 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-33120 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45026-22010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-22020 |
JZX100,105,LX100..AVT,AVTG,TOUS,XL |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22200 |
JZX10# ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-22250 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-22210 |
JZX100..AVT,AVTG,TOUS |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-22010 |
JZX10# ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-33030 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-22550 |
JZX10#..ATM ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-22490B0 |
JZX100..TOUS,TOUV DK.BLUE GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-22440B0 |
JZX100..TOUS,TOUV DK.BLUE GRAY,TRIM1# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-33020 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-22010 |
JZX10# |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-22010 |
JZX10# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-33010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-22030 |
JZX10# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90905-07010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45826D - LEVER, STEERING TELESCOPIC | ||||
| 45826-22120 |
JZX10# |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-22030 |
JZX10# |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-22050 |
JZX10# |
1 | ||
| 45855B - SHAFT, T1LT STEERING, NO.1 | ||||
| 45855-26010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45855B - SHAFT, T1LT STEERING, NO.1 | ||||
| 45855-26010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-26010 |
GX10#,JZX10#,LX100,SX100 ﾎﾜｲﾄ |
1 | ||
| 45856-26020 |
GX10#,JZX10#,LX100,SX100 ｲｴﾛｰ |
1 | ||
| 45856-26030 |
GX10#,JZX10#,LX100,SX100 ﾌﾞﾗｯｸ |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-22320 |
JZX10#..4FC,5F ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-50020 |
JZX10# |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-22030 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45885 - LINK, TILT LEVER | ||||
| 45885-35010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45887 - CLIP, STEERING TELESCOPIC LEVER | ||||
| 45887-22010 |
JZX10# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-26010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| Common parts | ||||
| 90105-06248 | ||||
| 90119-08560 | ||||
| 90119-08964 | ||||
| 90164-50034 | ||||
| 90178-08001 | ||||
| 90179-10055 | ||||
| 90183-06022 | ||||
| 90507-08016 | ||||
| 90507-08017 | ||||
| 90507-23019 | ||||
| 91651-60618 | ||||
| 96111-10880 | ||||
