JZX100-BTPQF (1996)

Toyota Chaser

Production Sep 1996 - Jun 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )AVT,AVTG,RAF

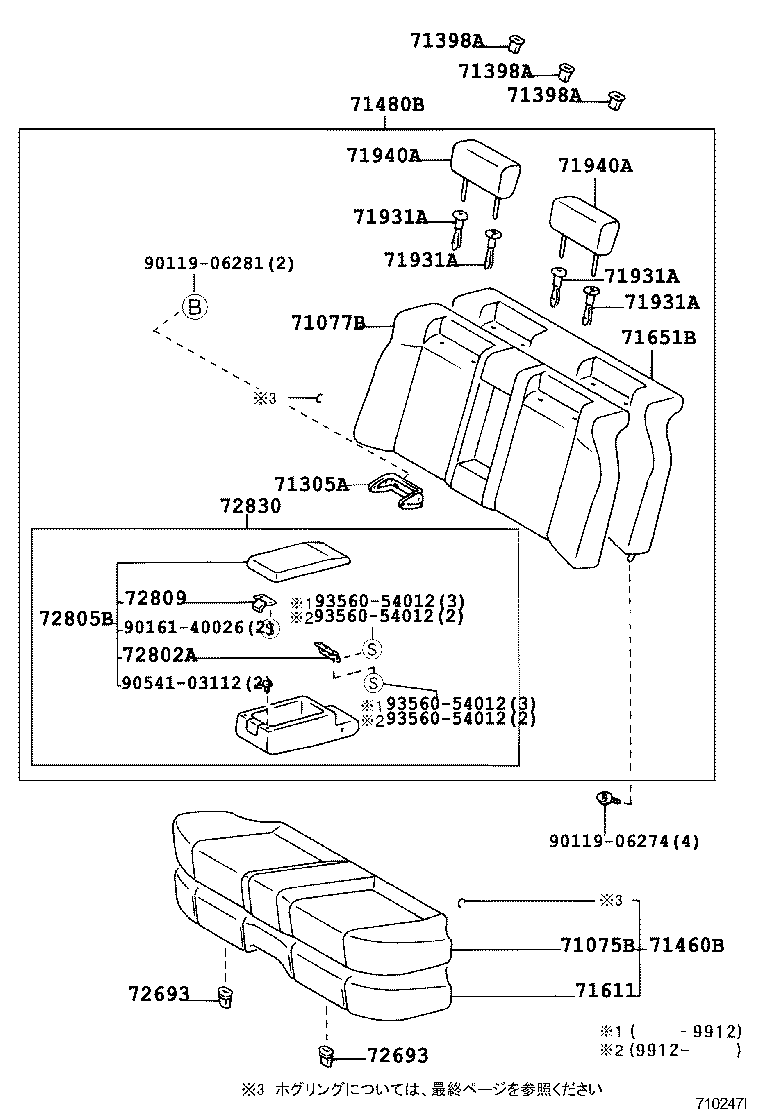

Click highlighted areas on diagram

diagram 71075B 71077B 71305A 71398A 71398A 71398A 71460B 71480B 71611 71651B 71931A 71931A 71931A 71931A 71940A 71940A 72693 72693 72802A 72805B 72809 72830 9011906274 9011906281 9016140026 9054103112 9356054012 9356054012 9356054012 9356054012
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-22630E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
71065-22520E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

ORCHID,TRIM4#

 1
71065-22520G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

SAGE,TRIM6#

 1
71065-22630E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM4#

 1
71065-22580G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
71065-22580E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
71065-22500E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2A700G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

SAGE,TRIM6#

 1
71077-2A760G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
71077-2A820E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
71077-2A820E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
71077-2A700E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

ORCHID,TRIM4#

 1
71077-2A760E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-22020B0

GX10#,JZX10#,LX100,SX100

DK.BLUE GRAY,TRIM20

 1
71281-22080

GX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV

 1
71305-22020G0

GX10#,JZX10#,LX100,SX100

SAGE,TRIM60

 1
71305-22020E0

GX10#,JZX10#,LX100,SX100

ORCHID,TRIM40

 1
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100,SX100

 3
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100,SX100

 3
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100,SX100

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-22760E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

***,ORCHID,TRIM4#

 1
71560-22730E0

GX10#,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
71560-22760G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

***,SAGE,TRIM6#

 1
71560-22730E0

GX10#,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
71560-22790E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
71560-22790G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

***,ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2A770G0

GX100,JZX100..4FC..AVT

ﾛ-ﾄﾞﾘ- ｵ-ﾃﾞｲｵﾚｽ *(C),DK.SAGE,TRIM6#

 1
71480-2C040E0

GX10#,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
71480-2C040E0

GX10#,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
71480-2A830G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

***,SAGE,TRIM6#

 1
71480-2A830E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

***,ORCHID,TRIM4#

 1
71480-2A770G0

GX100,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ- *(E),SAGE,TRIM6#

 1
71480-2A880E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
71480-2A880G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

***,ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
71611 - PAD, REAR SEAT CUSHION
71503-22070

GX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22430

GX10#,JZX100,105,LX100,SX100..AVT,RAF

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

GX10#,JZX10#,LX100,SX100

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

GX10#,JZX10#,LX100,SX100

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-22500E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

ORCHID,TRIM4#

 1
72830-22530G0

GX100,JZX100..4FC..AVT

ﾛ-ﾄﾞﾘ- ｵ-ﾃﾞｲｵﾚｽ *(C),DK.SAGE,TRIM6#

 1
72830-22530G0

GX100,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ- *(E),SAGE,TRIM6#

 1
72830-22560G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
72830-22620E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
72830-22500G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

SAGE,TRIM6#

 1
72830-22620E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
72830-22560E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
Common parts
90119-06274
90119-06281
90161-40026
90541-03112
93560-54012

(9609- )AVT,TOU,TOUS,TOUV,XL

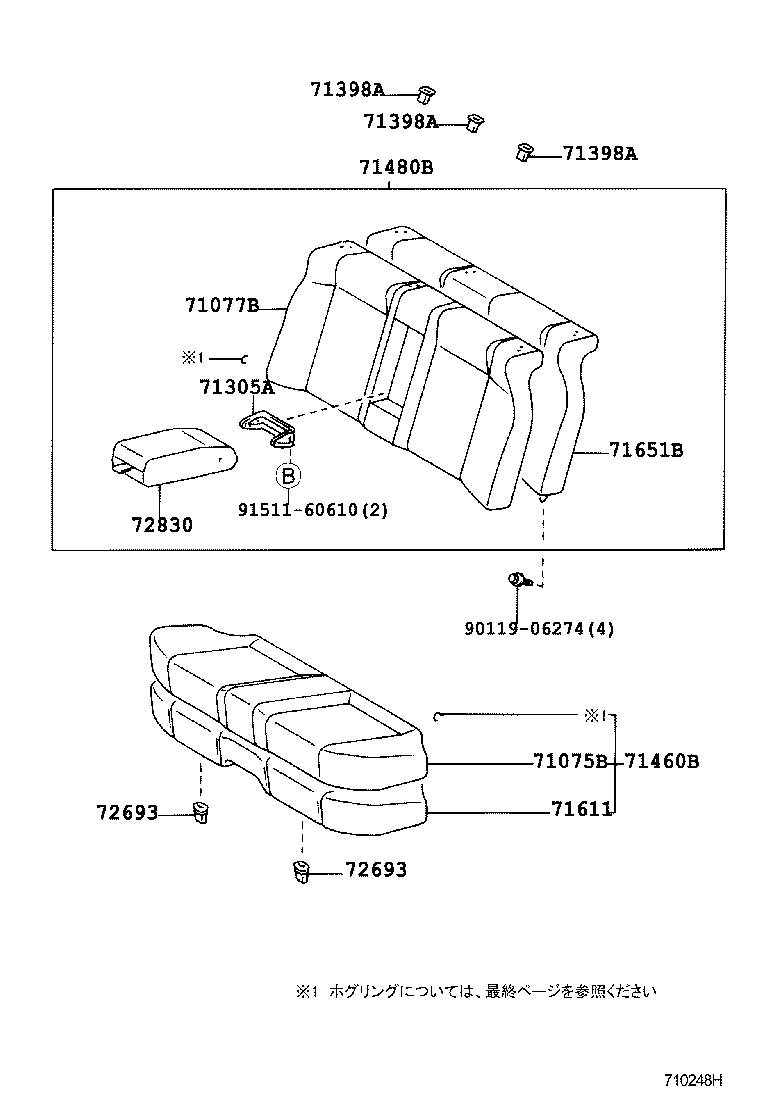

Click highlighted areas on diagram

diagram 71075B 71077B 71305A 71398A 71398A 71398A 71460B 71480B 71611 71651B 72693 72693 72830 9011906274 9151160610
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-22630E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
71065-22520E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

ORCHID,TRIM4#

 1
71065-22520G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

SAGE,TRIM6#

 1
71065-22630E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM4#

 1
71065-22580G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
71065-22580E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
71065-22500E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2A700G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

SAGE,TRIM6#

 1
71077-2A760G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
71077-2A820E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
71077-2A820E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
71077-2A700E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

ORCHID,TRIM4#

 1
71077-2A760E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-22020B0

GX10#,JZX10#,LX100,SX100

DK.BLUE GRAY,TRIM20

 1
71281-22080

GX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV

 1
71305-22020G0

GX10#,JZX10#,LX100,SX100

SAGE,TRIM60

 1
71305-22020E0

GX10#,JZX10#,LX100,SX100

ORCHID,TRIM40

 1
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100,SX100

 3
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100,SX100

 3
71398A - HOLDER, REAR SEAT BACK
71398-22010

GX10#,JZX10#,LX100,SX100

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-22760E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

***,ORCHID,TRIM4#

 1
71560-22730E0

GX10#,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
71560-22760G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

***,SAGE,TRIM6#

 1
71560-22730E0

GX10#,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
71560-22790E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
71560-22790G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

***,ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2A770G0

GX100,JZX100..4FC..AVT

ﾛ-ﾄﾞﾘ- ｵ-ﾃﾞｲｵﾚｽ *(C),DK.SAGE,TRIM6#

 1
71480-2C040E0

GX10#,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
71480-2C040E0

GX10#,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
71480-2A830G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

***,SAGE,TRIM6#

 1
71480-2A830E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

***,ORCHID,TRIM4#

 1
71480-2A770G0

GX100,JZX100..4FC..AVT

***,ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ- *(E),SAGE,TRIM6#

 1
71480-2A880E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
71480-2A880G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

***,ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
71611 - PAD, REAR SEAT CUSHION
71503-22070

GX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22430

GX10#,JZX100,105,LX100,SX100..AVT,RAF

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

GX10#,JZX10#,LX100,SX100

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

GX10#,JZX10#,LX100,SX100

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-22500E0

GX100,JZX100,105,LX100,SX100..AVT,RAF

ORCHID,TRIM4#

 1
72830-22530G0

GX100,JZX100..4FC..AVT

ﾛ-ﾄﾞﾘ- ｵ-ﾃﾞｲｵﾚｽ *(C),DK.SAGE,TRIM6#

 1
72830-22530G0

GX100,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ- *(E),SAGE,TRIM6#

 1
72830-22560G1

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6#

 1
72830-22620E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(E),ORCHID BROWN,TRIM4#

 1
72830-22500G0

GX100,JZX100,105,LX100,SX100..AVT,RAF

SAGE,TRIM6#

 1
72830-22620E0

GX10#,JZX100..4FC..AVT

ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,FOUR ﾛ-ﾄﾞﾘ- *(X),ORCHID BROWN,TRIM40

 1
72830-22560E0

GX10#,JZX100,105,LX100,SX100..AVT,XL

ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4#

 1
Common parts
90119-06274
91511-60610

(9609- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
