JZX100-BTPQF (1996)
Toyota Chaser

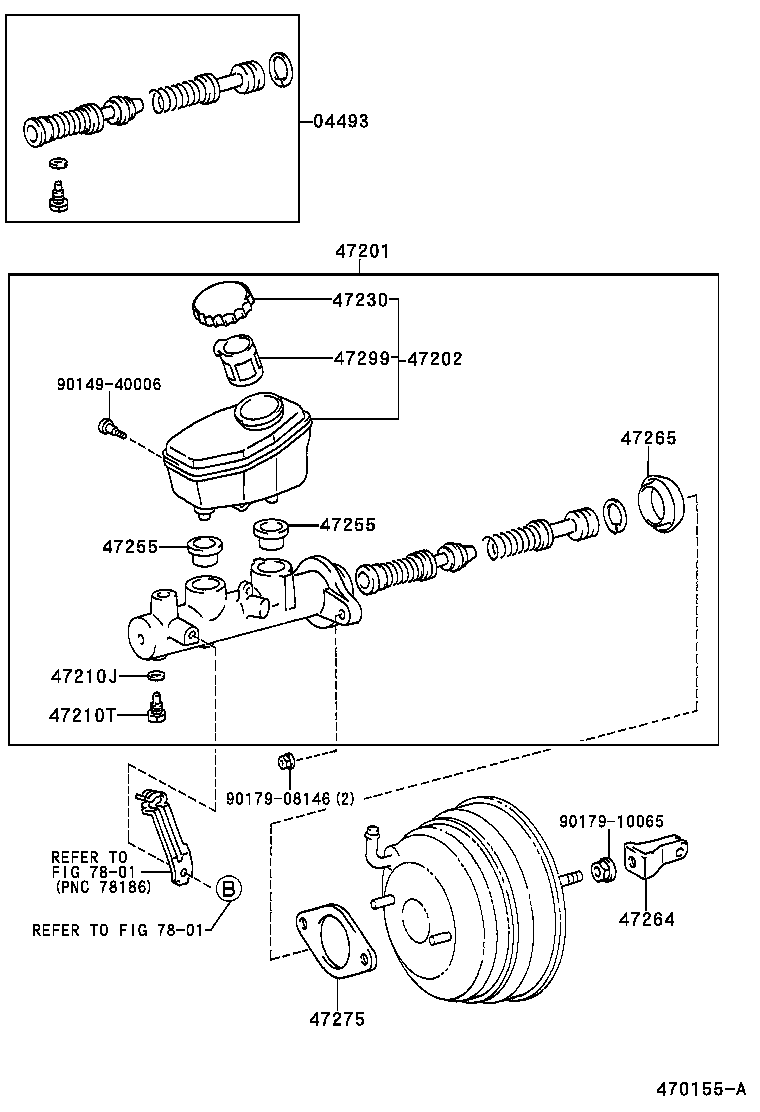

(9609- )GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-22240 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 04493-30232 |
GX10#,JZX100,105,SX100 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-22850 |
JZX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47201-22870 |
GX10#,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 47201-2A020 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-22080 |
JZX100,LX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47220-30120 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 47220-22090 |
GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
JZX100,101,LX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90430-06104 |
GX100,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 90029-43001 |
GX10#,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 90029-43001 |
JZX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 90109-06077 |
JZX100,LX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-24010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47230-24010 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-30050 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47264-30050 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47265-20050 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47275-12020 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
JZX100,LX100..AVT,AVTG,TOUS,XL ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47299-24010 |
GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 47299-20060 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 7801 | ||||

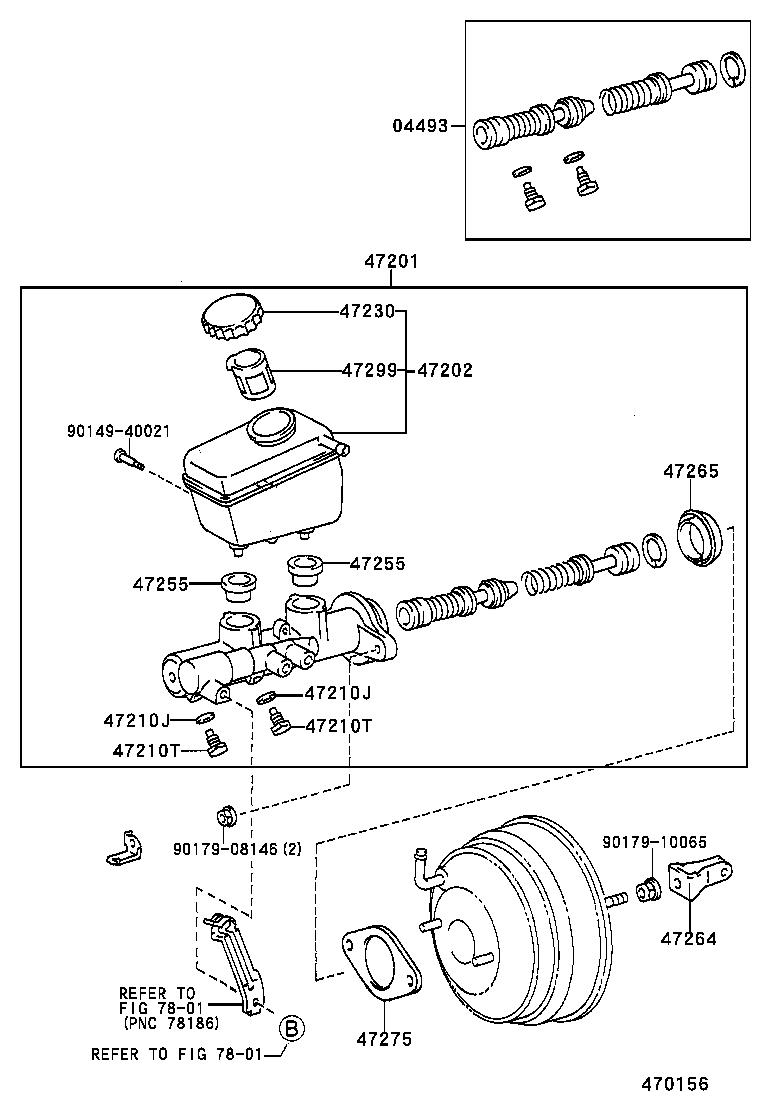

(9609- )JZX100,101,LX100
ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛｰﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-22240 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 04493-30232 |
GX10#,JZX100,105,SX100 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-22850 |
JZX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47201-22870 |
GX10#,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 47201-2A020 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-22080 |
JZX100,LX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47220-30120 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 47220-22090 |
GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
JZX100,101,LX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90430-06104 |
GX100,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 90029-43001 |
GX10#,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 90029-43001 |
JZX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
JZX100,101,LX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 90430-06104 |
GX100,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 90029-43001 |
GX10#,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 90029-43001 |
JZX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 90109-06077 |
JZX100,LX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 90109-06077 |
JZX100,LX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-24010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47230-24010 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-30050 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47264-30050 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47265-20050 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47275-12020 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
JZX100,LX100..AVT,AVTG,TOUS,XL ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47299-24010 |
GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 47299-20060 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| Common parts | ||||
| 90149-40021 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 7801 | ||||

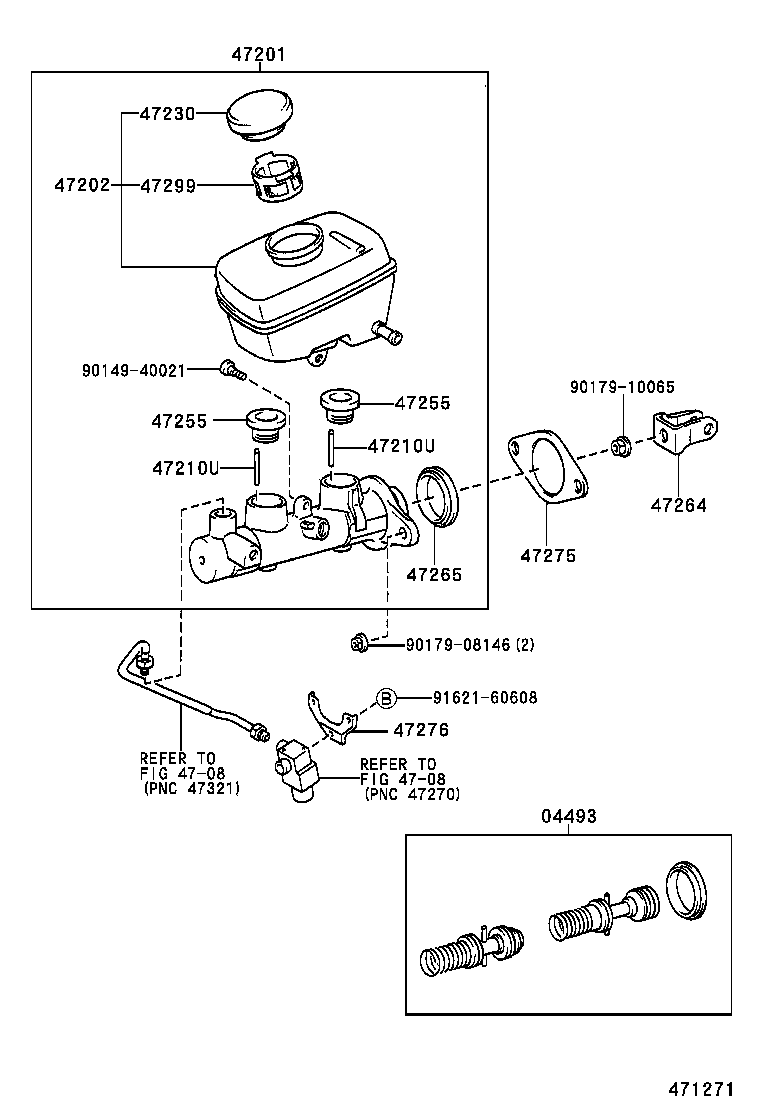

(9808- )JZX100,101..AVT,AVTG
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-22240 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 04493-30232 |
GX10#,JZX100,105,SX100 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-22850 |
JZX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47201-22870 |
GX10#,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 47201-2A020 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-22080 |
JZX100,LX100 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47220-30120 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 47220-22090 |
GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
JZX100,101..AVT,AVTG |
2 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
JZX100,101..AVT,AVTG |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-24010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47230-24010 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-30050 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47264-30050 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47265-20050 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
GX100,JZX100,105,LX100,SX100 |
1 | ||
| 47275-12020 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-30030 |
JZX100,101..AVT,AVTG |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
JZX100,LX100..AVT,AVTG,TOUS,XL ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 47299-24010 |
GX10#,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 47299-20060 |
JZX100..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| Common parts | ||||
| 90149-40021 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 91621-60608 | ||||
| Linked diagrams | ||||
| 4708 | ||||
