JZX100-BTMVZ (1996)
Toyota Chaser

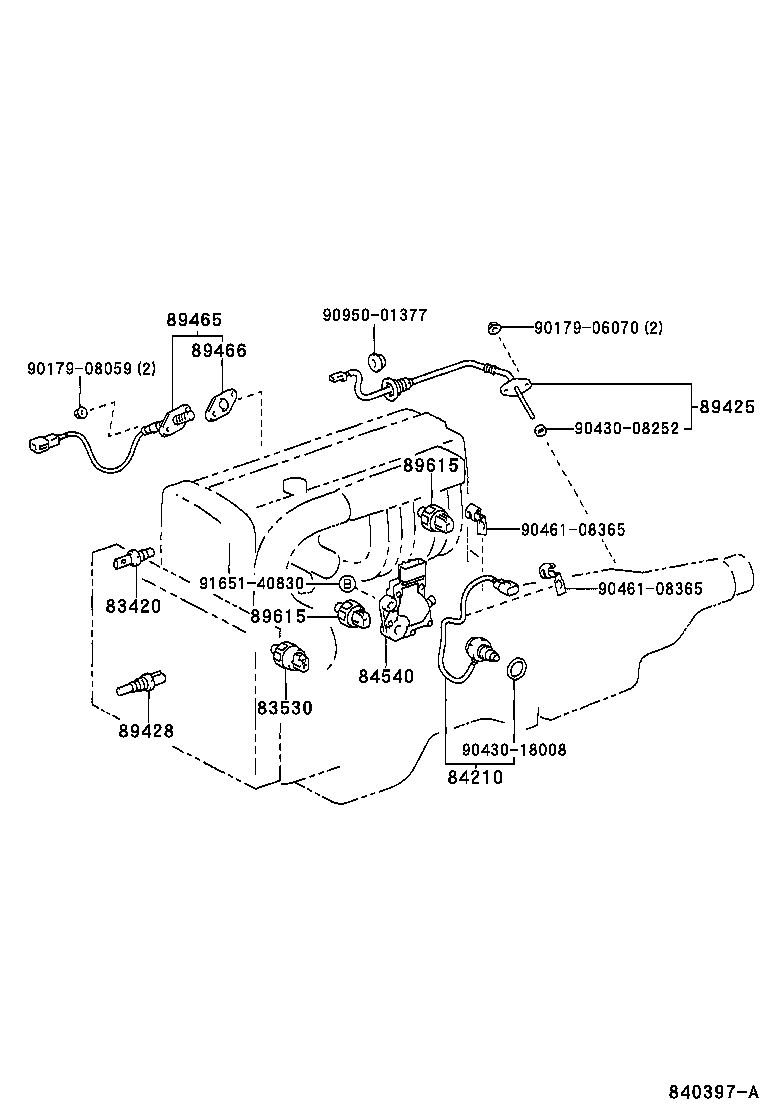

ILLUST NO. 1 OF 6(9609- )TOUV
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
GX100,JZX10#,LX100 |
1 | ||
| 83420-16040 |
JZX10#,LX100 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
JZX10# |
1 | ||
| 83530-30090 |
GX100,JZX10#,SX100 |
1 | ||
| 83530-28020 |
GX10#,JZX10#,SX100 DENSO |
1 | ||
| 83530-60020 |
GX10#,JZX10#,SX100 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-35030 |
JZX100..5F |
1 | ||
| 84210-53010 |
JZX100..5F |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-80041 |
JZX101;JZX100..TOUV |
1 | ||
| 89425-29695 |
GX100,JZX100..AVT,AVTG,TOU,TOUS |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-24010 |
JZX101;JZX100..TOUV |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-80015 |
JZX100..TOUV |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
GX10#;JZX100..TOUV |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
JZX100..TOUV MATSUSHITA |
2 | ||
| 89615-22040 |
JZX100..TOUV DENSO |
2 | ||
| 89615-52020 |
JZX100..TOUV DENSO |
2 | ||
| 89615-52010 |
JZX100..TOUV MATSUSHITA |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
JZX100..TOUV MATSUSHITA |
2 | ||
| 89615-22040 |
JZX100..TOUV DENSO |
2 | ||
| 89615-52020 |
JZX100..TOUV DENSO |
2 | ||
| 89615-52010 |
JZX100..TOUV MATSUSHITA |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 90430-18008 | ||||
| 90461-08365 | ||||
| 90950-01377 | ||||
| 91651-40830 | ||||

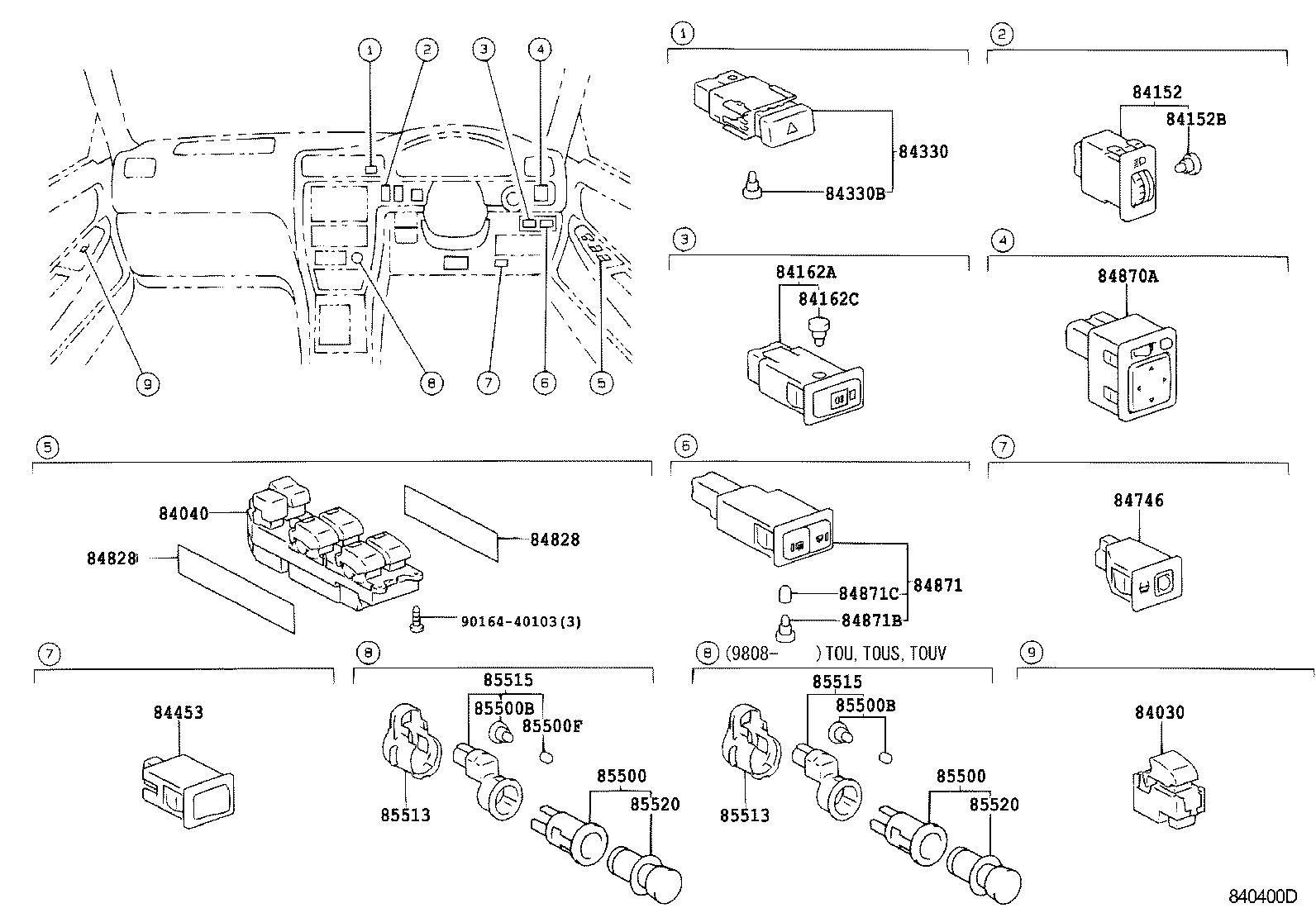

ILLUST NO. 3 OF 6(9609- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GX10#,JZX10#,LX100,SX100 |
3 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-22040 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 84040-22010 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-20030 |
JZX100..TOUS,TOUV |
1 | ||
| 84152-22010 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 84152-20030 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
JZX100..TOUS,TOUV 14V 40MA,ｸﾞﾘｰﾝ |
1 | ||
| 90010-08100 |
GX100,JZX100..TOU,TOUS,TOUV 14V 40MA,ｸﾞﾘｰﾝ |
1 | ||
| 90010-08101 |
GX100,JZX100..TOU,TOUS,TOUV 14V40MA,ｵﾚﾝｼﾞ |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-22010 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 84165-22020 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-20120 |
GX100,JZX10#,LX100,SX100 14V 0.7W |
1 | ||
| 90010-09009 |
GX100,JZX100..TOU,TOUS,TOUV 14V 40MA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-22130 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GX10#,JZX10#,LX100,SX100 14V 0.91W |
1 | ||
| 84828 - COVER, POWER WINDOW SWITCH | ||||
| 84828-22050 |
GX10#,JZX10#,LX100,SX100 右側 |
1 | ||
| 84828-22060 |
GX10#,JZX10#,LX100,SX100 左側 |
1 | ||
| 84828 - COVER, POWER WINDOW SWITCH | ||||
| 84828-22050 |
GX10#,JZX10#,LX100,SX100 右側 |
1 | ||
| 84828-22060 |
GX10#,JZX10#,LX100,SX100 左側 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22210 |
GX105;GX100,JZX100..(5F,5FC)..(TOU,TOUS) |
1 | ||
| 84870-22210 |
GX100..4FC;GX100..5F..AVT;JZX10#,LX100,SX100..4FC,5F ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-22050 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 84871-22040 |
GX100,JZX10#,LX100 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 84871B - BULB, OUTER MIRROR HEATER SWITCH | ||||
| 84999-10700 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 84999-10560 |
GX100,JZX10#,LX100 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 84871C - CAP | ||||
| 84998-10010 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17050 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17050 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GX100,JZX10#,LX100,SX100 14V 1.4W |
1 | ||
| 90010-01030 |
GX100,JZX100..TOU,TOUS,TOUV 14V1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GX100,JZX10#,LX100,SX100 14V 1.4W |
1 | ||
| 90010-01030 |
GX100,JZX100..TOU,TOUS,TOUV 14V1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ付き |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-48010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85513-28010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-48010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85513-28010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22030 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 85515-22040 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22030 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 85515-22040 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||

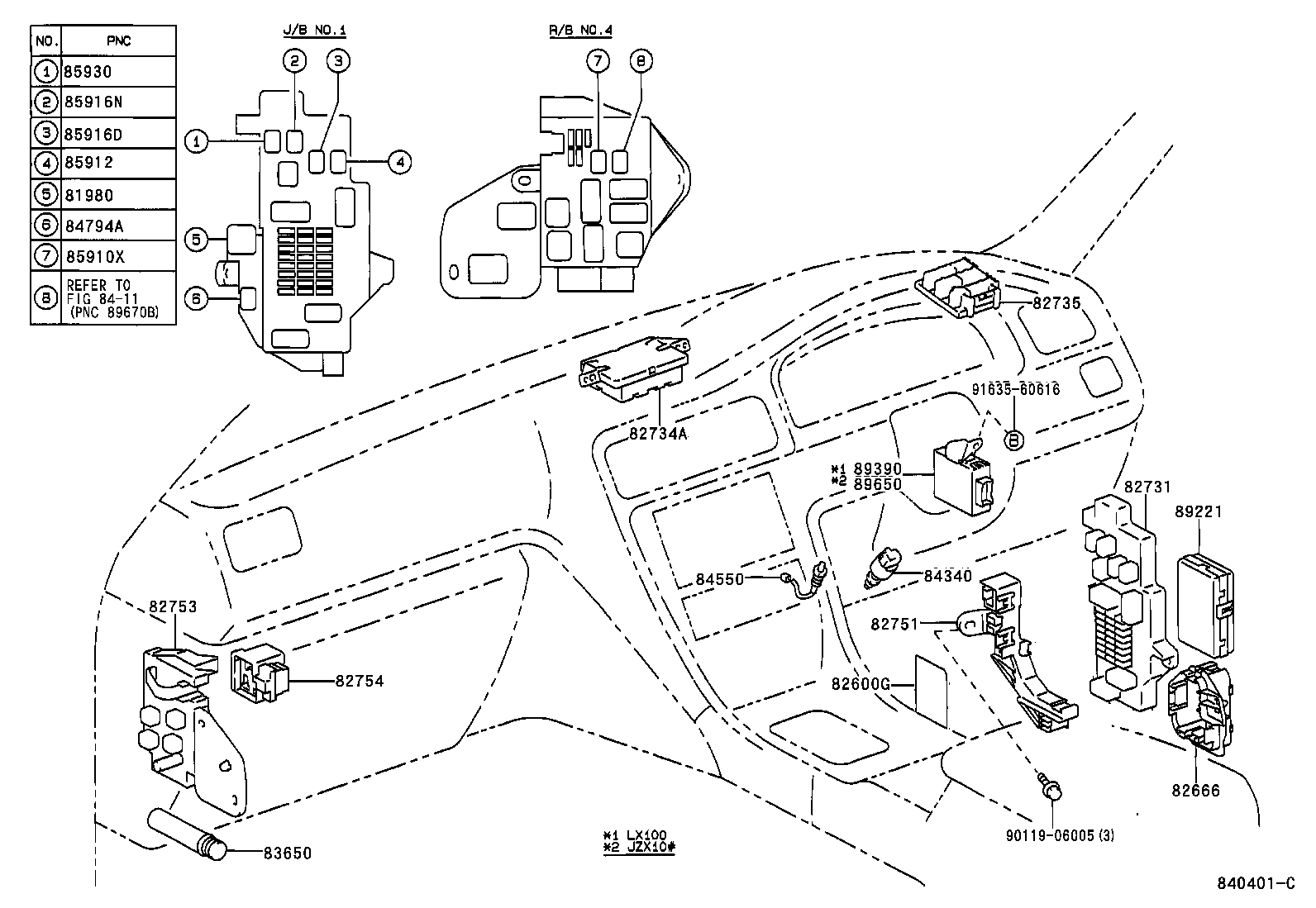

ILLUST NO. 4 OF 6(9609- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-22120 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-22090 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-22010 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 82731-22020 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-22010 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 82734-22010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82735 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82735-22010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82751 - BLOCK, DRIVER SIDE RELAY | ||||
| 82751-22010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82753 - BLOCK, PASSENGER SIDE RELAY | ||||
| 82753-22010 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82754 - BLOCK, PASSENGER SIDE RELAY, NO.2 | ||||
| 82754-22010 |
GX100,JZX10#,LX100,SX100 ｱﾘ(VSC) |
1 | ||
| 82754-22020 |
GX10#,JZX100,105,LX100,SX100 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
GX100..5F..AVT;GX100,JZX100,LX100,SX100..TOU,TOUS,TOUV,XL |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02012 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02012 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-22030 |
GX100,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV ｱﾘ(ﾄﾞｱ ﾛﾂｸ ｺﾝﾄﾛ-ﾙ),NIPPONDENSO |
1 | ||
| 89221-22090 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 89221-22070 |
GX100,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV ｱﾘ(ﾄﾞｱ ﾛﾂｸ ｺﾝﾄﾛ-ﾙ),TOYOTA |
1 | ||
| 89221-22100 |
GX10#,JZX10#,LX100 DENSO |
1 | ||
| 89221-22140 |
GX10#,JZX10#,LX100 TOYOTA |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-22240 |
JZX100..TOUS,TOUV |
1 | ||
| 89650-22241 |
JZX100..TOUS,TOUV |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 8411 | ||||

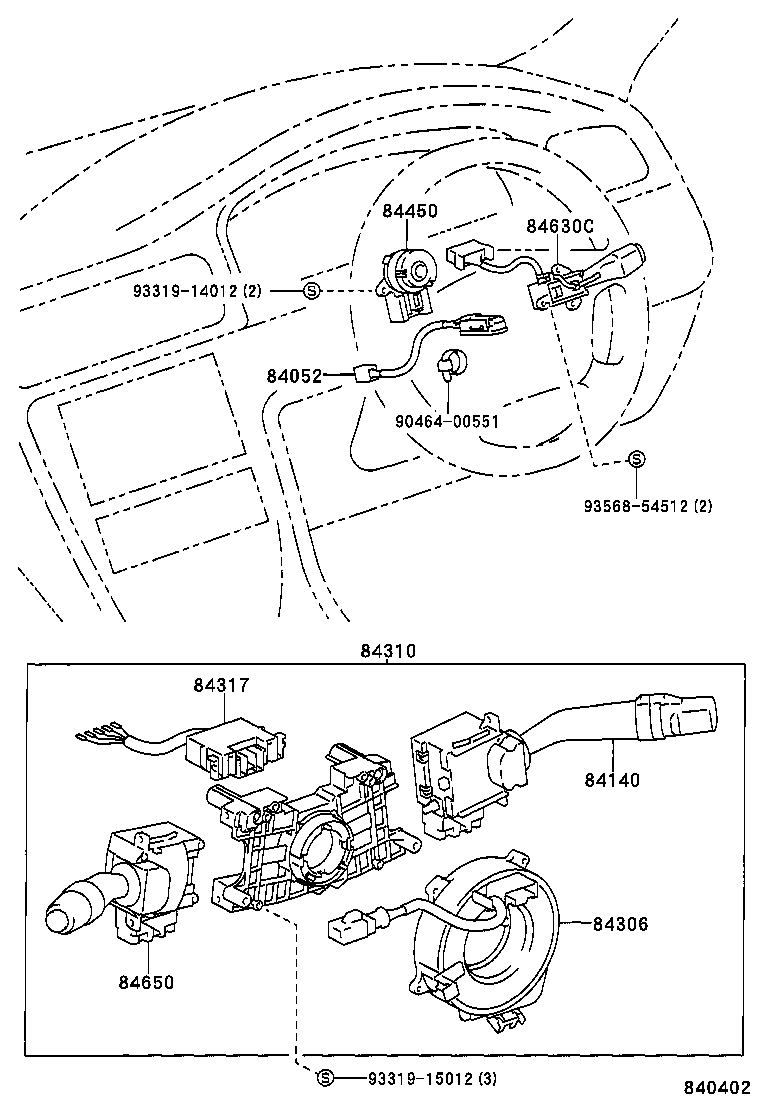

ILLUST NO. 5 OF 6(9609- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22050 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-22170 |
GX100,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV |
1 | ||
| 84140-22160 |
GX100,JZX100,LX100,SX100..RAF,TOU,TOUS,TOUV,XL |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-35010 |
GX100,JZX10#,LX100 |
1 | ||
| 84306-12070 |
GX100,JZX100..TOU,TOUS,TOUV ｸﾞﾗﾝﾄﾞ ﾊﾟﾂｹ-ｼﾞ *(V) |
1 | ||
| 84306-30170 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 84306-35011 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2A580 |
GX100,JZX100,LX100,SX100..RAF,TOU,TOUS,TOUV,XL |
1 | ||
| 84310-2A590 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-2A610 |
GX100,JZX100,LX100..AVT,TOU,TOUS,TOUV ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-2A600 |
GX100,JZX100,LX100..AVT,TOU,TOUS,TOUV |
1 | ||
| 84310-2A700 |
JZX100..TOUS,TOUV ｸﾞﾗﾝﾄﾞ ﾊﾟﾂｹ-ｼﾞ *(V) |
1 | ||
| 84310-2A780 |
JZX100..TOUS,TOUV ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-2A770 |
JZX100..TOUS,TOUV |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-22840 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 84652-22850 |
GX100,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-22860 |
JZX10# |
1 | ||
| 84652-22870 |
JZX10# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93568-54512 | ||||

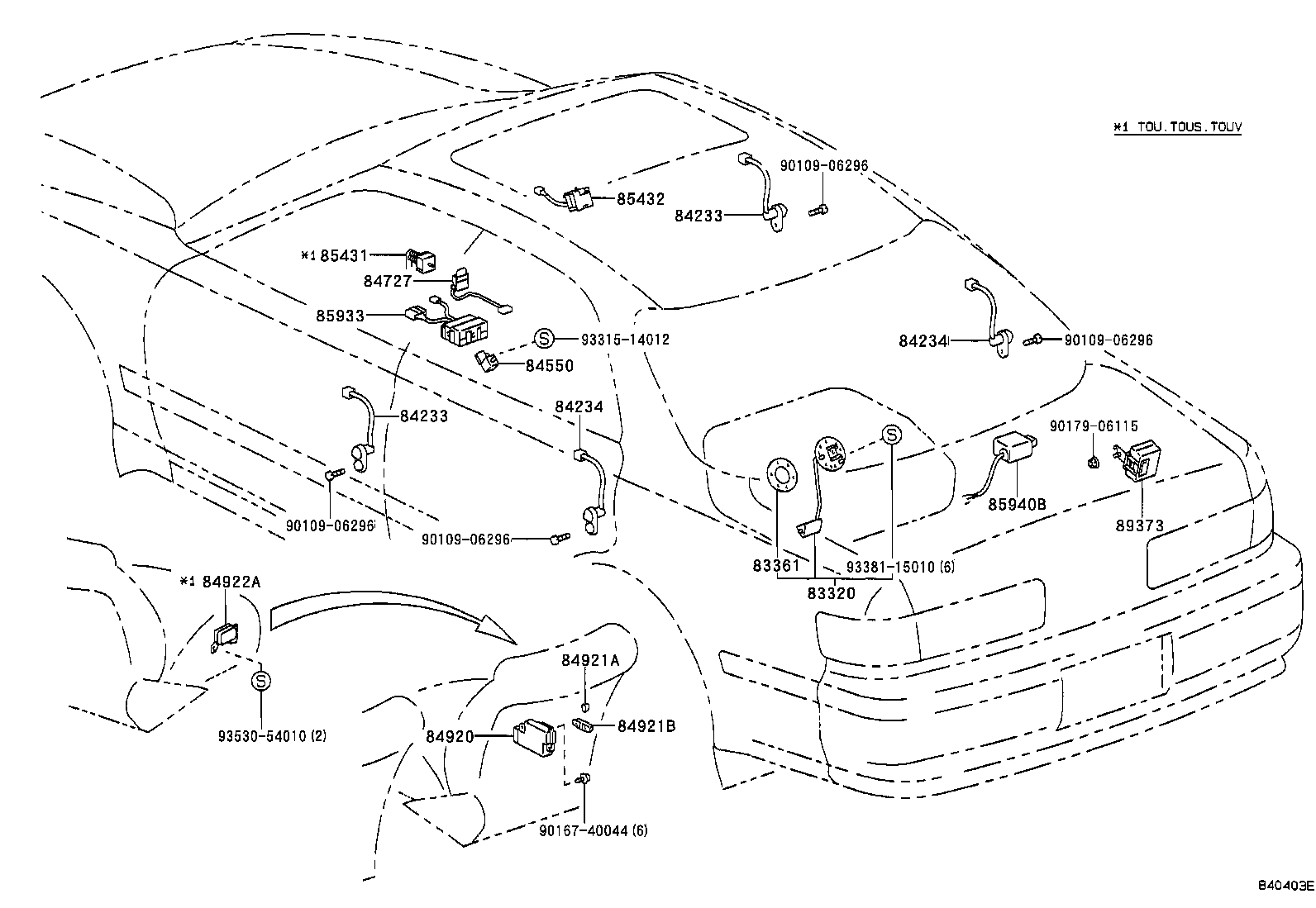

ILLUST NO. 6 OF 6(9609- )
ﾙ-ﾌ,ﾄﾞｱ,ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80257 |
GX10#,JZX100,105,SX100..AVT,RAF,TOU,TOUS,TOUV,XL |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22120 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22120 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GX10#,JZX10#,SX100 |
2 | ||
| 84231-33071 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GX10#,JZX10#,SX100 |
2 | ||
| 84231-33071 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
GX100..5F..AVT;GX100,JZX100,LX100,SX100..TOU,TOUS,TOUV,XL |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-24010C0 |
GX100,JZX100..TOU,TOUS,TOUV BLACK,TRIM2# |
1 | ||
| 84920-24010B1 |
GX100,JZX100..TOU,TOUS,TOUV DK.BLUE GRAY,TRIM1# |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-22230 |
GX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89370-22230 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 89370-22180 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(LEDﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 89370-22240 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(LEDﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 89370-22250 |
GX10#,JZX10#,LX100,SX100 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 89370-22200 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(LEDﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 89370-22190 |
GX100,JZX10#,LX100,SX100 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 89370-22170 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 89370-22260 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(LEDﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90167-40044 | ||||
| 90179-06115 | ||||
| 93315-14012 | ||||
| 93381-15010 | ||||
| 93530-54010 | ||||

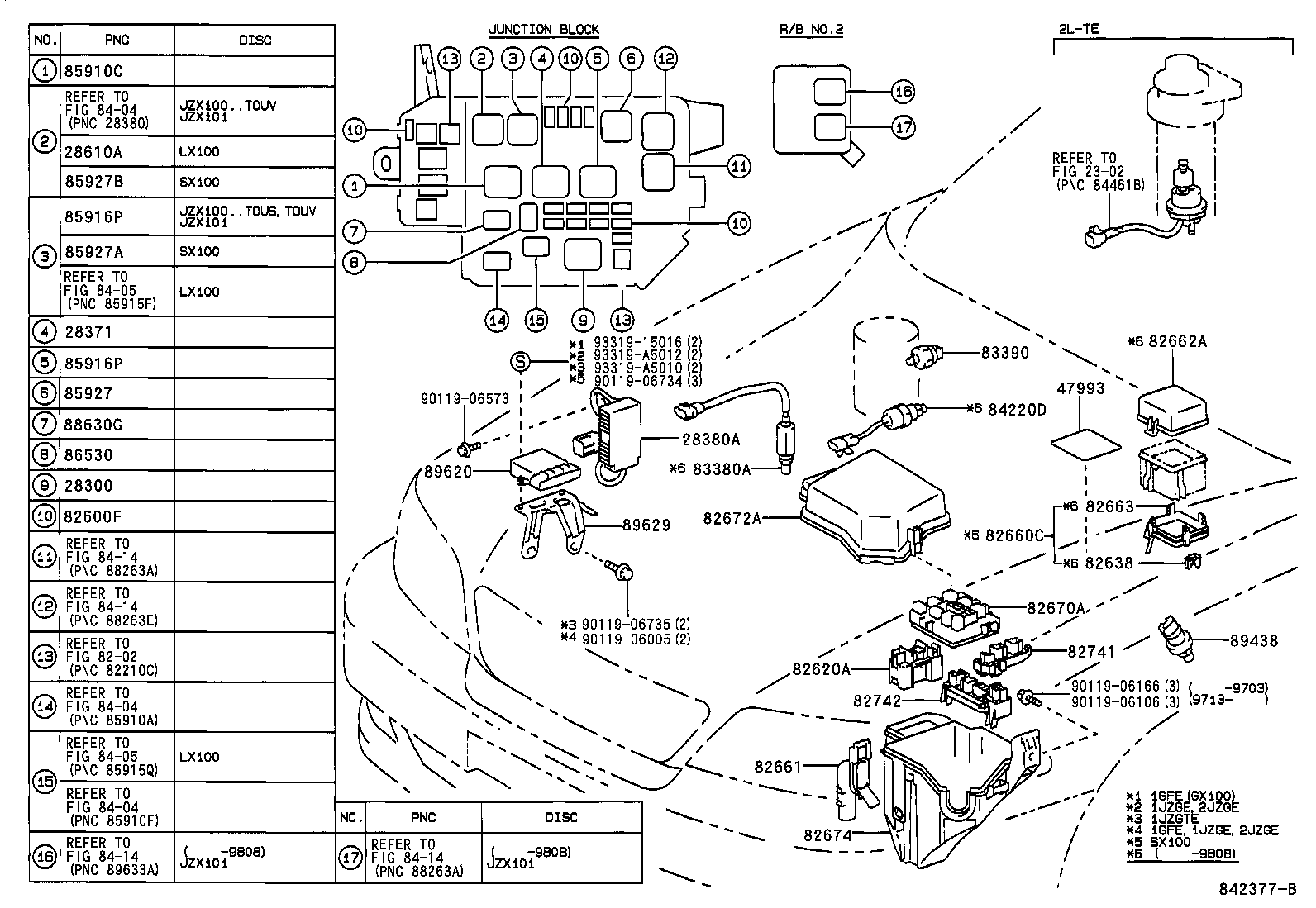

ILLUST NO. 2 OF 6(9609- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
2LTE..LX100;1JZ#,2JZGE,4SFE..JZX100,101,SX100..AVTG,RAF,TOUV,XL |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-46020 |
1JZGTE,2JZGE..JZX100,101 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GX100,JZX10#,LX100,SX100 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
GX100,JZX10#,LX100,SX100 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
GX100,JZX10#,LX100,SX100 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09009 |
GX10#,JZX10#,LX100,SX100 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
GX10#,JZX10#,LX100,SX100 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GX100,JZX10#,LX100,SX100 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09011 |
GX10#,JZX10#,LX100,SX100 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
GX10#,JZX10#,LX100,SX100 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09013 |
GX10#,JZX10#,LX100,SX100 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GX100,JZX10#,LX100,SX100 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GX10#,JZX10#,LX100,SX100 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
GX100,JZX10#,LX100,SX100 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-22040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22230 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82721-22010 |
GX10#,JZX10#,SX100 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22270 |
JZX100..TOUS,TOUV |
1 | ||
| 82672-22250 |
GX100,JZX100..AVT,TOU |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-22040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 82674-22030 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-22010 |
GX10#,JZX100,105,LX100,SX100 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-22020 |
JZX100..TOUS,TOUV |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
JZX100..TOUS,TOUV |
2 | ||
| 90987-02006 |
GX100,JZX100..TOU,TOUS,TOUV |
2 | ||
| 90987-02006 |
GX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,XL |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
JZX100..TOUS,TOUV |
2 | ||
| 90987-02006 |
GX100,JZX100..TOU,TOUS,TOUV |
2 | ||
| 90987-02006 |
GX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,XL |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
JZX101;JZX100,SX100..RAF,TOUV,XL |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-30020 |
JZX101;JZX100..TOUV |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-22210 |
JZX100..TOUV |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06106 | ||||
| 90119-06166 | ||||
| 90119-06573 | ||||
| 90119-06734 | ||||
| 90119-06735 | ||||
| 93319-15016 | ||||
| 93319-A5010 | ||||
| 93319-A5012 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
