JZX100-BTMVZ (1996)

Toyota Chaser

Production Sep 1996 - Jun 2001
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

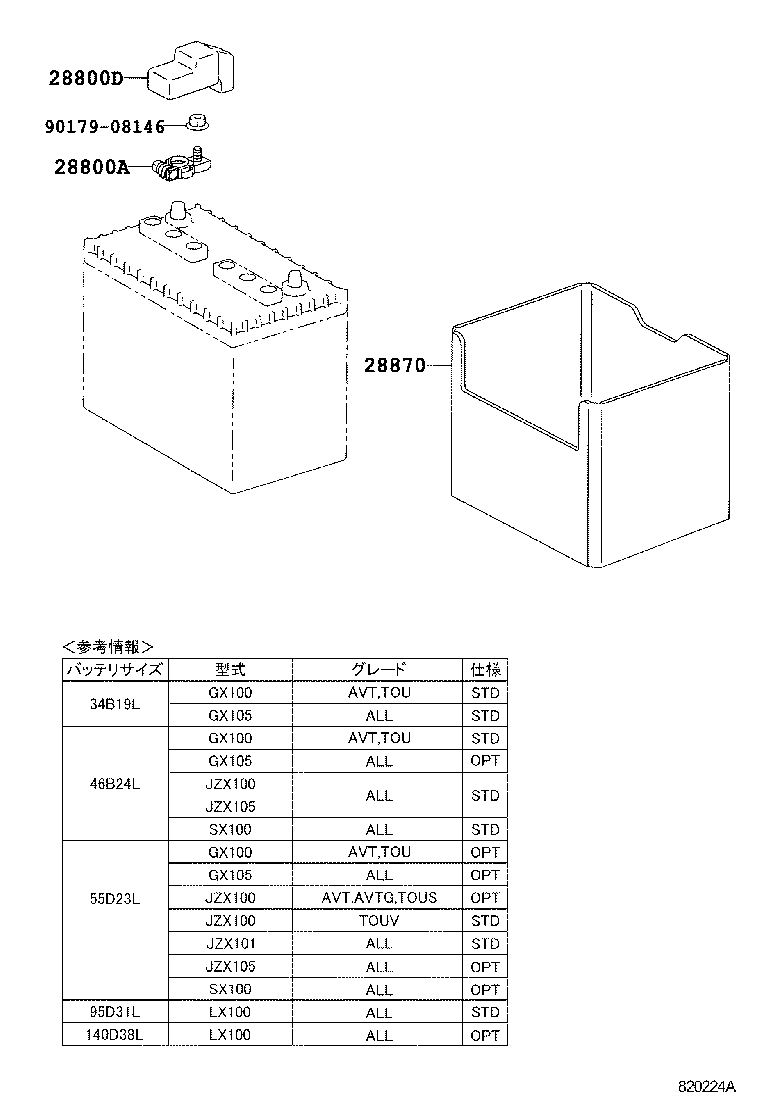

Click highlighted areas on diagram

diagram 28800A 28800D 28870 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

1GFE,1JZ#,2JZGE,4SFE..GX10#,JZX10#,SX100

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23L)

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100

 1
28870 - INSULATOR ASSY, BATTERY
28899-46080

1GFE,1JZ#,2JZGE,4SFE..GX10#,JZX10#,SX100

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23L)

 1
Common parts
90179-08146
