JZX100-BTMVZ (1996)

Toyota Chaser

Production Sep 1996 - Jun 2001
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

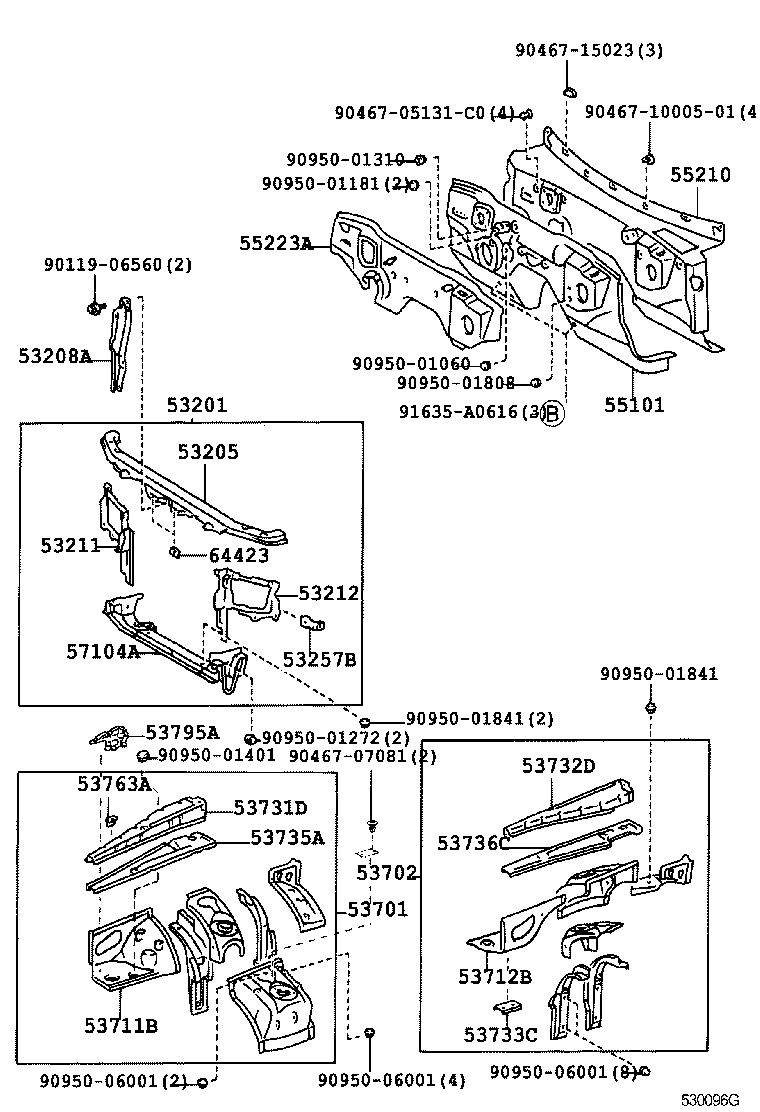

Click highlighted areas on diagram

diagram 53201 53205 53208A 53211 53212 53257B 53701 53702 53711B 53712B 53731D 53732D 53733C 53735A 53736C 53763A 53795A 55101 55210 55223A 57104A 64423 9011906560 9046705131C0 9046707081 904671000501 9046715023 9095001060 9095001181 9095001272 9095001310 9095001401 9095001808 9095001841 9095001841 9095006001 9095006001 9095006001 91635A0616
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-22580

GX10#,JZX10#,LX100,SX100

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-22210

GX10#,JZX10#,LX100,SX100

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53215-22160

GX10#,JZX10#,LX100,SX100

 1
53211 - SUPPORT, RADIATOR, RH
53202-22210

GX10#,JZX10#,LX100,SX100

 1
53212 - SUPPORT, RADIATOR, LH
53203-22190

GX10#,JZX10#,LX100,SX100

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-22030

GX10#,JZX10#,LX100,SX100

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-22690

GX100,JZX100,101,LX100,SX100

 1
53701-22690

JZX100,101,LX100,SX100

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-22650

GX100,JZX100,101,LX100,SX100

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-22430

JZX10#,LX100,SX100

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-22360

GX10#,JZX10#,LX100,SX100

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-22901

GX10#,JZX10#,LX100,SX100

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-22901

GX10#,JZX10#,LX100,SX100

 1
53733C - PATCH, FRONT FENDER APRON
53733-22080

GX10#,JZX10#,LX100,SX100

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-22070

GX10#,JZX10#,LX100,SX100

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-22060

GX10#,JZX10#,LX100,SX100

 1
53763A - BRACKET, AIR CLEANER INLET MOUNTING
53763-22020

GX10#,JZX10#,LX100,SX100

 1
53763-22020

JZX10#,LX100,SX100

 1
55101 - PANEL SUB-ASSY, DASH
55101-2A360

GX100,JZX100..5F

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-22330

GX100,JZX10#,LX100,SX100

 1
55210-22331

SX100..XL;JZX100..5FC;GX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUV

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-22110

GX10#,JZX10#,LX100

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-22230

GX10#,JZX10#,LX100,SX100

 1
64423 - PLATE, SUPPORT RADIATOR, UPPER
64423-20030

GX10#,JZX10#,LX100,SX100

 2
Common parts
90119-06560
90467-05131C0
90467-07081
90467-1000501
90467-15023
90950-01060
90950-01181
90950-01272
90950-01310
90950-01401
90950-01808
90950-01841
90950-06001
91635-A0616
