JZX100-BTMVZ (1996)

Toyota Chaser

Production Sep 1996 - Jun 2001
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

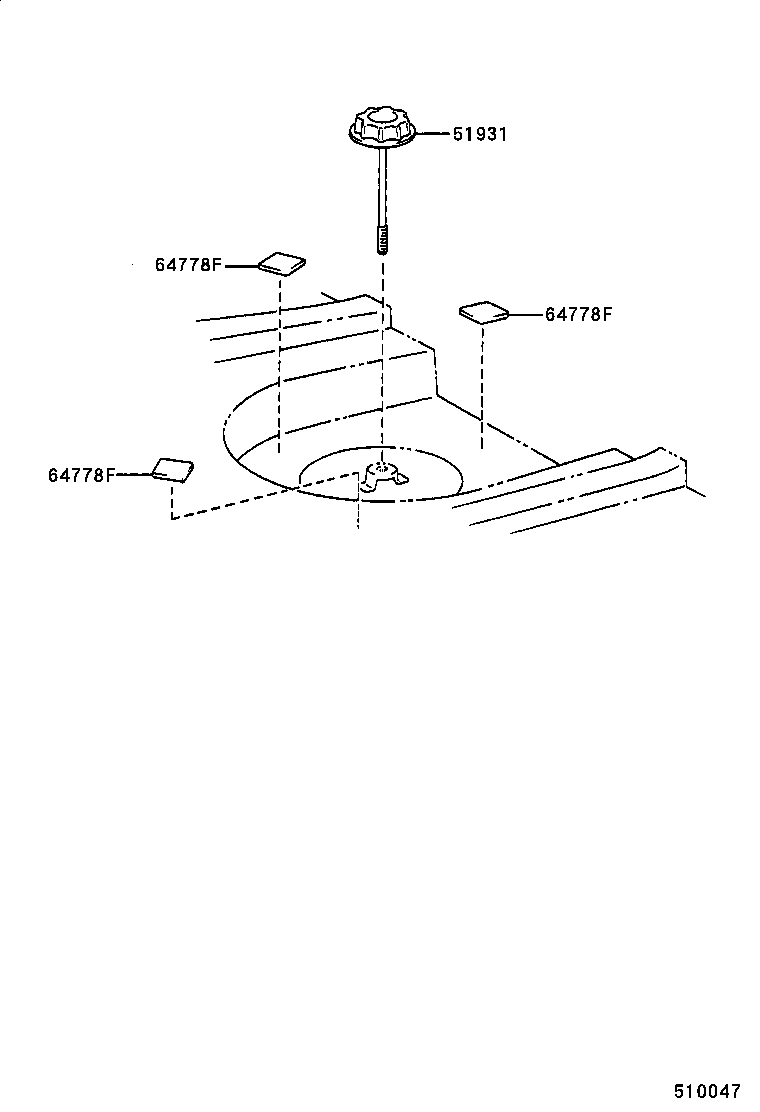

Click highlighted areas on diagram

diagram 51931 64778F 64778F 64778F
Part # Description Qty Price
51931 - CARRIER, SPARE WHEEL, NO.1
51931-12020

GX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,XL

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ

 1
51900-22030

JZX100..(4FC,5F)..(TOUS,TOUV)

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ

 1
51900-22030

GX100,JZX100..TOU,TOUS

ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ

 1
51931-22040

GX100,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL

ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ

 1
51931-22040

GX10#,JZX10#,LX100,SX100..AVT,AVTG,TOU,TOUS,XL

ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ

 1
64778F - PROTECTOR, SPARE WHEEL
64778-22030

GX10#,JZX10#,LX100,SX100

 3
64778F - PROTECTOR, SPARE WHEEL
64778-22030

GX10#,JZX10#,LX100,SX100

 3
64778F - PROTECTOR, SPARE WHEEL
64778-22030

GX10#,JZX10#,LX100,SX100

 3
