JZX100-BTMVZ (1996)

Toyota Chaser

Production Sep 1996 - Jun 2001
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1JZ#,2JZGE

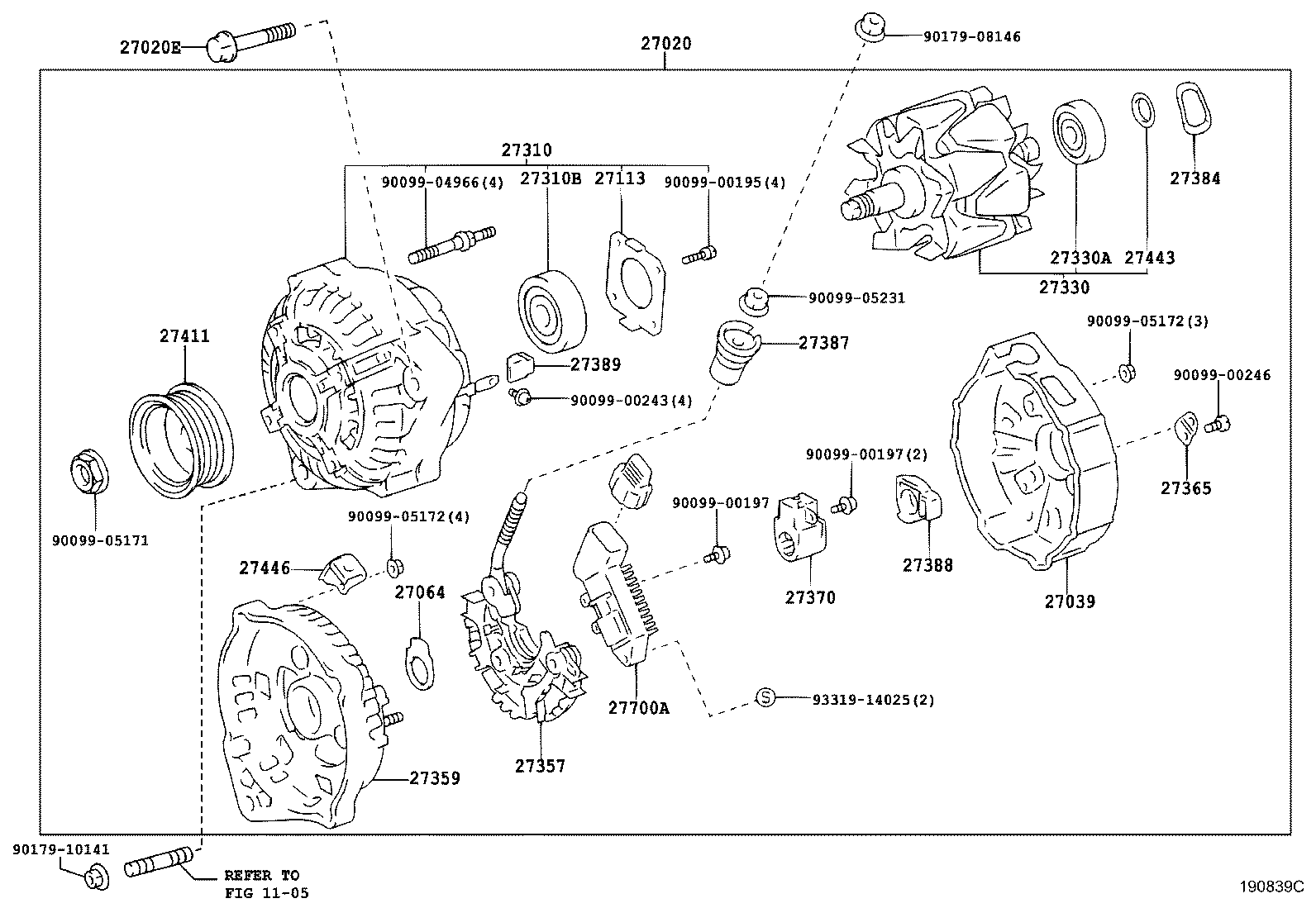

Click highlighted areas on diagram

12V 100A

diagram 1105 27020 27020E 27039 27064 27113 27310 27310B 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27446 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905171 9009905172 9009905172 9009905231 9017908146 9017910141 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-46170

1JZGTE..JZX100..5F;1JZGE,2JZGE..JZX100,101

12V 100A

 1
27020E - BOLT(FOR ALTERNATOR)
91512-61050

1JZ#,2JZGE..JZX10#

 1
27039 - COVER, ALTERNATOR REAR END
27039-46310

1JZ#,2JZGE..JZX100,101

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
27039-46170

1JZ#,2JZGE..JZX100,101..4FC,5F

12V 100A

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010

1GFE,1JZ#,2JZGE,4SFE..GX10#,JZX10#,SX100

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46090

1JZGTE..JZX100..5F;1JZGE,2JZGE..JZX100,101..4FC

12V 100A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

1GFE,1JZ#,2JZGE,4SFE..GX10#,JZX10#,SX100

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-46090

1JZGTE..JZX100..5F;1JZGE,2JZGE..JZX100,101

12V 100A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10194

1JZ#,2JZGE..JZX10#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-46180

1JZ#,2JZGE..JZX100,101

12V 100A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-46100

1JZ#,2JZGE..JZX100,101

12V 100A

 1
27365 - PLATE, TERMINAL
27365-55080

1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100

 1
27384 - WASHER
27384-50030

1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100

 1
27387 - INSULATOR, TERMINAL
27387-42040

1JZ#,2JZGE..JZX10#

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100

 1
27388-42010

1GFE,1JZGTE,2JZGE,2LTE,4SFE..GX100,JZX100,101,LX100,SX100

 1
27388-42010

1GFE,1JZ#,2JZGE,2LTE,4SFE..GX100,JZX10#,LX100,SX100

 1
27389 - INSULATOR, TERMINAL
27389-42010

1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100

 4
27411 - PULLEY, ALTERNATOR
27411-46090

1JZ#,2JZGE..JZX100,101

12V 100A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100

 1
27446 - CLIP, ALTERNATOR CORD
27446-46160

1JZ#,2JZGE..JZX100,101

12V 100A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-20050

1JZ#,2JZGE..JZX10#

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05231
90179-08146
90179-10141
93319-14025
Linked diagrams
1105
