JZX100-BTASF (1998)

Toyota Chaser

Production Aug 1998 - Jun 2001
Engine 1JZGE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )

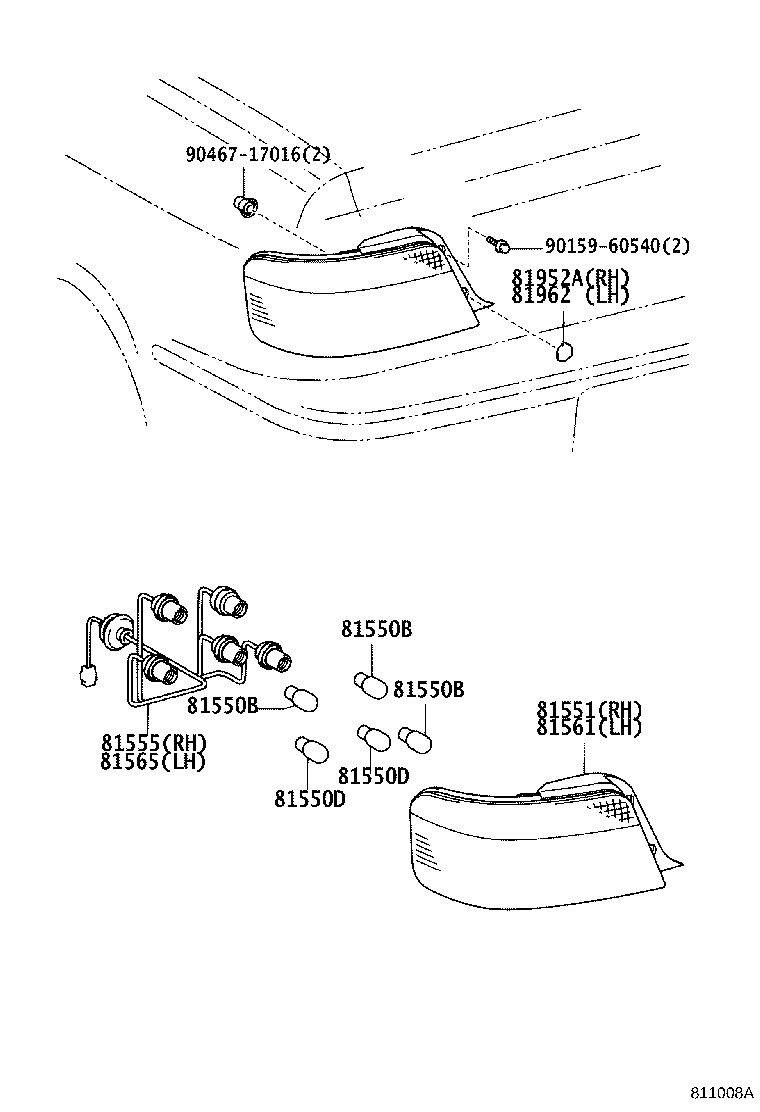

Click highlighted areas on diagram

diagram 81550B 81550B 81550B 81550D 81550D 81551 81555 81561 81565 81952A 81962 9015960540 9046717016
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042

GX10#,JZX10#,LX100,SX100

12V 21W

 4
90981-11042

GX10#,JZX10#,LX100,SX100

12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042

GX10#,JZX10#,LX100,SX100

12V 21W

 4
90981-11042

GX10#,JZX10#,LX100,SX100

12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11042

GX10#,JZX10#,LX100,SX100

12V 21W

 4
90981-11042

GX10#,JZX10#,LX100,SX100

12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 6
81550D - BULB(FOR REAR COMBINATION LAMP)
90981-11043

GX100,JZX10#,LX100,SX100

12V 21/5W

 6
90981-11043

GX10#,JZX10#,LX100,SX100

12V 21/5W

 4
81550D - BULB(FOR REAR COMBINATION LAMP)
90981-11043

GX100,JZX10#,LX100,SX100

12V 21/5W

 6
90981-11043

GX10#,JZX10#,LX100,SX100

12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-22870

GX100,JZX100..TOU,TOUS,TOUV

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81551-22860

GX100,JZX100..TOU,TOUS,TOUV

 1
81551-2A040

GX100,JZX100..TOU,TOUS,TOUV

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81551-2A030

GX100,JZX100..TOU,TOUS,TOUV

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2A010

GX10#,JZX10#,LX100,SX100

 1
81555-22820

GX100,JZX10#,LX100,SX100

 1
81555-2A030

GX100,JZX100..TOU,TOUS,TOUV

 1
81555-2A020

GX10#,JZX10#,LX100,SX100

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81555-2A040

GX100,JZX100..TOU,TOUS,TOUV

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81555-22830

GX100,JZX10#,LX100,SX100

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-2A030

GX100,JZX100..TOU,TOUS,TOUV

 1
81561-22860

GX100,JZX100..TOU,TOUS,TOUV

 1
81561-22870

GX100,JZX100..TOU,TOUS,TOUV

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81561-2A040

GX100,JZX100..TOU,TOUS,TOUV

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-22820

GX100,JZX10#,LX100,SX100

 1
81555-22830

GX100,JZX10#,LX100,SX100

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81555-2A020

GX10#,JZX10#,LX100,SX100

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81555-2A030

GX100,JZX100..TOU,TOUS,TOUV

 1
81555-2A040

GX100,JZX100..TOU,TOUS,TOUV

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81555-2A010

GX10#,JZX10#,LX100,SX100

 1
81952A - COVER, REAR LAMP, RH
81952-22010

GX10#,JZX10#,LX100,SX100

 2
81962 - COVER, REAR LAMP, LH
81952-22010

GX10#,JZX10#,LX100,SX100

 2
Common parts
90159-60540
90467-17016
