GX90-BTPQK (1992)
Toyota Chaser

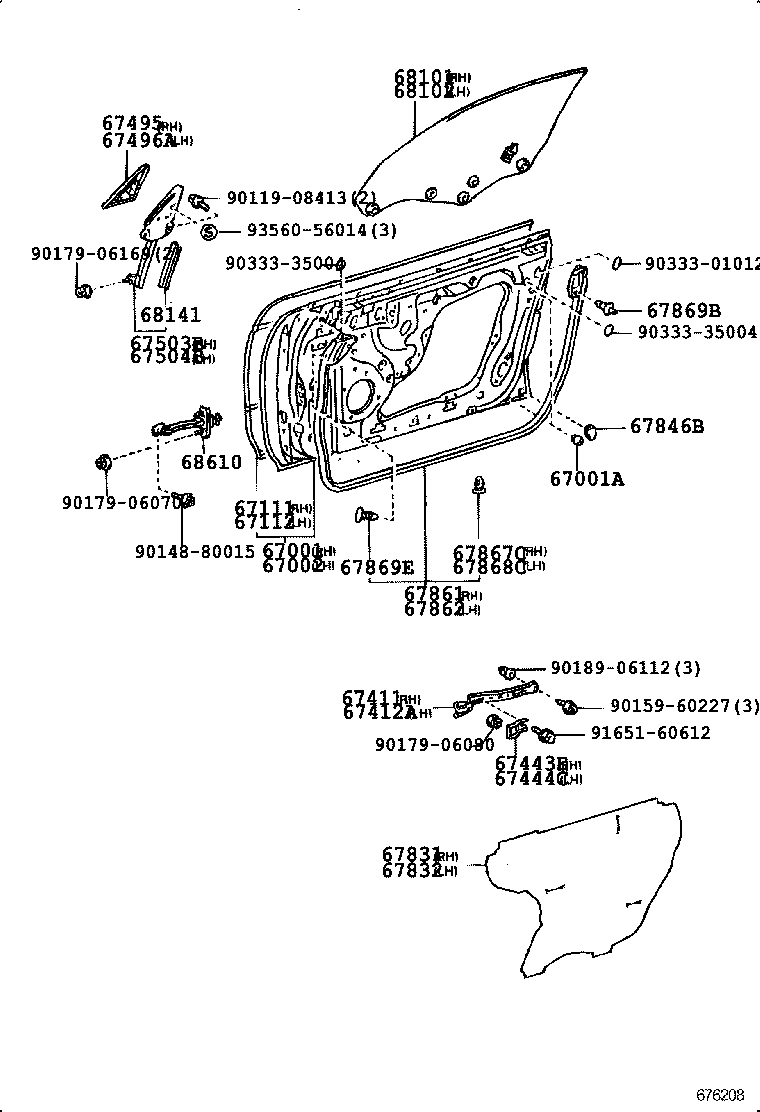

ILLUST NO. 1 OF 2(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-22380 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09054 |
GX90,JZX9#,LX90,SX90 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
4 | ||
| 90541-09006 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 90541-09054 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-22370 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-22210 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-22210 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-22090 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-22090 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67443E - PLATE, FRONT DOOR INSIDE PANEL, RH | ||||
| 67443-32030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67444C - PLATE, FRONT DOOR INSIDE PANEL, LH | ||||
| 67443-32030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67503B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, RH | ||||
| 67503-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67504B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, LH | ||||
| 67504-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-22250 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-22140 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67846B - SUB-SHEET, FRONT DOOR SERVICE HOLE | ||||
| 90950-01832 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 67845-32010 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 90950-01832 |
GX90,JZX9#,LX90,SX90 ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾌｴﾝﾀﾞ ﾐﾗ-) |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-22270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-22270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GX90,JZX9#,LX90,SX90 |
17 | ||
| 67868-22020 |
GX90,JZX9#,LX90,SX90 |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
GX90,JZX9#,LX90,SX90 |
17 | ||
| 67867-12150 |
GX90,JZX9#,LX90,SX90 |
17 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-22050 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-22030 |
GX90,JZX9#,LX90,SX90 |
6 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-22280 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-22310 |
GX90,JZX9#,LX90,SX90 *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 68101-22320 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-22250 |
GX90,JZX9#,LX90,SX90 *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-22320 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-22310 |
GX90,JZX9#,LX90,SX90 *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 68102-22280 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-22250 |
GX90,JZX9#,LX90,SX90 *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-22200 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-22020 |
GX90,JZX9#,LX90,SX90 左側 |
1 | ||
| 68610-22060 |
GX90,JZX9#,LX90,SX90 右側 |
1 | ||
| Common parts | ||||
| 90119-08413 | ||||
| 90148-80015 | ||||
| 90159-60227 | ||||
| 90179-06070 | ||||
| 90179-06080 | ||||
| 90179-06169 | ||||
| 90189-06112 | ||||
| 90333-01012 | ||||
| 90333-35004 | ||||
| 91651-60612 | ||||
| 93560-56014 | ||||
ILLUST NO. 2 OF 2(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-22100 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-22100 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-22100 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-22100 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2A450E1 |
GX90,JZX93..AVT BEIGE,TRIM4# |
1 | ||
| 67650-2A450J1 |
GX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-2A450G1 |
GX90,JZX93..AVT JADE,TRIM6# |
1 | ||
| 67650-2A520E1 |
GX90,JZX93..AVT ｱﾘ(7 ｽﾋﾟ-ｶ),BEIGE,TRIM4# |
1 | ||
| 67650-2A520G1 |
GX90,JZX93..AVT ｱﾘ(7 ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67650-2A522E3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67650-2A520J1 |
GX90 ｱﾘ(7 ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-2A760E0 |
GX90..ATM 2.0ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
1 | ||
| 67650-2A522G3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67650-2A452E3 |
GX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 67650-2A452G3 |
GX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 67650-2A522G3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67610-2C100E0 |
GX90..ATM 2.0 ｱﾊﾞﾝﾃﾘﾐﾃﾂﾄﾞ,SABLE,SABLE,TRIM4# |
1 | ||
| 67610-2C100G0 |
GX90..ATM 2.0 ｱﾊﾞﾝﾃﾘﾐﾃﾂﾄﾞ,JADE,JADE,TRIM6# |
1 | ||
| 67650-2A522E3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2A450E1 |
GX90,JZX93..AVT BEIGE,TRIM4# |
1 | ||
| 67650-2A450J1 |
GX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-2A450G1 |
GX90,JZX93..AVT JADE,TRIM6# |
1 | ||
| 67650-2A520E1 |
GX90,JZX93..AVT ｱﾘ(7 ｽﾋﾟ-ｶ),BEIGE,TRIM4# |
1 | ||
| 67650-2A520G1 |
GX90,JZX93..AVT ｱﾘ(7 ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67650-2A522E3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67650-2A520J1 |
GX90 ｱﾘ(7 ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-2A760E0 |
GX90..ATM 2.0ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
1 | ||
| 67650-2A522G3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67650-2A452E3 |
GX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 67650-2A452G3 |
GX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 67650-2A522G3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67610-2C100E0 |
GX90..ATM 2.0 ｱﾊﾞﾝﾃﾘﾐﾃﾂﾄﾞ,SABLE,SABLE,TRIM4# |
1 | ||
| 67610-2C100G0 |
GX90..ATM 2.0 ｱﾊﾞﾝﾃﾘﾐﾃﾂﾄﾞ,JADE,JADE,TRIM6# |
1 | ||
| 67650-2A522E3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066J1 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
2 | ||
| 90467-07066E1 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
2 | ||
| 90467-07066G1 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066J1 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
2 | ||
| 90467-07066E1 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
2 | ||
| 90467-07066G1 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800J1 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
4 | ||
| 90950-01800G1 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
4 | ||
| 90950-01800E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800J1 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
4 | ||
| 90950-01800G1 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
4 | ||
| 90950-01800E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
4 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28030 |
GX90,JZX9#,LX90,SX90 |
3 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28030 |
GX90,JZX9#,LX90,SX90 |
3 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2C790E1 |
GX90,JZX93..AVT BEIGE,TRIM4# |
1 | ||
| 67620-2C860E1 |
GX90,JZX93..AVT ｱﾘ(7 ｽﾋﾟ-ｶ),BEIGE,TRIM4# |
1 | ||
| 67620-2C790J1 |
GX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-2C860J1 |
GX90 ｱﾘ(7 ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-2C790G1 |
GX90,JZX93..AVT JADE,TRIM6# |
1 | ||
| 67620-2C860G1 |
GX90,JZX93..AVT ｱﾘ(7 ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67620-2C862E3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67620-2C862G3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67620-2C792G3 |
GX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 67620-2C792E3 |
GX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 67050-22010E0 |
GX90..ATM 2.0ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
1 | ||
| 67620-2C862E3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67050-22240E0 |
GX90..ATM 2.0 ｱﾊﾞﾝﾃﾘﾐﾃﾂﾄﾞ,SABLE,SABLE,TRIM4# |
1 | ||
| 67050-22240G0 |
GX90..ATM 2.0 ｱﾊﾞﾝﾃﾘﾐﾃﾂﾄﾞ,JADE,JADE,TRIM6# |
1 | ||
| 67620-2C862G3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2C790E1 |
GX90,JZX93..AVT BEIGE,TRIM4# |
1 | ||
| 67620-2C860E1 |
GX90,JZX93..AVT ｱﾘ(7 ｽﾋﾟ-ｶ),BEIGE,TRIM4# |
1 | ||
| 67620-2C790J1 |
GX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-2C860J1 |
GX90 ｱﾘ(7 ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-2C790G1 |
GX90,JZX93..AVT JADE,TRIM6# |
1 | ||
| 67620-2C860G1 |
GX90,JZX93..AVT ｱﾘ(7 ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67620-2C862E3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67620-2C862G3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67620-2C792G3 |
GX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 67620-2C792E3 |
GX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 67050-22010E0 |
GX90..ATM 2.0ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
1 | ||
| 67620-2C862E3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67050-22240E0 |
GX90..ATM 2.0 ｱﾊﾞﾝﾃﾘﾐﾃﾂﾄﾞ,SABLE,SABLE,TRIM4# |
1 | ||
| 67050-22240G0 |
GX90..ATM 2.0 ｱﾊﾞﾝﾃﾘﾐﾃﾂﾄﾞ,JADE,JADE,TRIM6# |
1 | ||
| 67620-2C862G3 |
GX90 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),JADE,TRIM6# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28030 |
GX90,JZX9#,LX90,SX90 |
3 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28030 |
GX90,JZX9#,LX90,SX90 |
3 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-22040E0 |
GX90,JZX90..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040J0 |
GX90,JZX90..AVT,TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX90..AVT,TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22030E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22030J0 |
GX90,LX90,SX90..AVT,RAF GRAYISH BLUE,TRIM8#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040E0 |
GX90,JZX93 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040J0 |
GX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
JZX90..TOUS;GX90,JZX93..AVT JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22030G0 |
GX90,JZX93,LX90,SX90..AVT,RAF JADE,TRIM6#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22030E0 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040G0 |
GX90,JZX93;JZX90..TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
GX90;JZX90..TOUS JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-22040E0 |
GX90,JZX90..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040J0 |
GX90,JZX90..AVT,TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX90..AVT,TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22030E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22030J0 |
GX90,LX90,SX90..AVT,RAF GRAYISH BLUE,TRIM8#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040E0 |
GX90,JZX93 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040J0 |
GX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
JZX90..TOUS;GX90,JZX93..AVT JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22030G0 |
GX90,JZX93,LX90,SX90..AVT,RAF JADE,TRIM6#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22030E0 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040G0 |
GX90,JZX93;JZX90..TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
GX90;JZX90..TOUS JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-22040E0 |
GX90,JZX90..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040J0 |
GX90,JZX90..AVT,TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX90..AVT,TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22030E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22030J0 |
GX90,LX90,SX90..AVT,RAF GRAYISH BLUE,TRIM8#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040E0 |
GX90,JZX93 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040J0 |
GX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
JZX90..TOUS;GX90,JZX93..AVT JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22030G0 |
GX90,JZX93,LX90,SX90..AVT,RAF JADE,TRIM6#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22030E0 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040G0 |
GX90,JZX93;JZX90..TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
GX90;JZX90..TOUS JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-22040E0 |
GX90,JZX90..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040J0 |
GX90,JZX90..AVT,TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX90..AVT,TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22030E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22030J0 |
GX90,LX90,SX90..AVT,RAF GRAYISH BLUE,TRIM8#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040E0 |
GX90,JZX93 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040J0 |
GX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
JZX90..TOUS;GX90,JZX93..AVT JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22030G0 |
GX90,JZX93,LX90,SX90..AVT,RAF JADE,TRIM6#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22030E0 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040G0 |
GX90,JZX93;JZX90..TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
GX90;JZX90..TOUS JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-22040J0 |
GX90,JZX90..AVT,TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX90..AVT,TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040E0 |
GX90,JZX90..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67652-22030G0 |
GX90,JZX93..AVT JADE,TRIM6#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67652-22030J0 |
GX90 GRAYISH BLUE,TRIM8#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67652-22030E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040J0 |
GX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX93;JZX90..TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040E0 |
GX90,JZX93 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
JZX90..TOUS;GX90,JZX93..AVT JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67652-22030E0 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22050E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
GX90;JZX90..TOUS JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-22040J0 |
GX90,JZX90..AVT,TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX90..AVT,TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040E0 |
GX90,JZX90..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67652-22030G0 |
GX90,JZX93..AVT JADE,TRIM6#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67652-22030J0 |
GX90 GRAYISH BLUE,TRIM8#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67652-22030E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040J0 |
GX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX93;JZX90..TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040E0 |
GX90,JZX93 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
JZX90..TOUS;GX90,JZX93..AVT JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67652-22030E0 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22050E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
GX90;JZX90..TOUS JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-22040J0 |
GX90,JZX90..AVT,TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX90..AVT,TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040E0 |
GX90,JZX90..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67652-22030G0 |
GX90,JZX93..AVT JADE,TRIM6#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67652-22030J0 |
GX90 GRAYISH BLUE,TRIM8#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67652-22030E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040J0 |
GX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX93;JZX90..TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040E0 |
GX90,JZX93 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
JZX90..TOUS;GX90,JZX93..AVT JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67652-22030E0 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22050E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
GX90;JZX90..TOUS JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-22040J0 |
GX90,JZX90..AVT,TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX90..AVT,TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040E0 |
GX90,JZX90..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67652-22030G0 |
GX90,JZX93..AVT JADE,TRIM6#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67652-22030J0 |
GX90 GRAYISH BLUE,TRIM8#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67652-22030E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22040J0 |
GX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040G0 |
GX90,JZX93;JZX90..TOUS,TOUV JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22040E0 |
GX90,JZX93 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
JZX90..TOUS;GX90,JZX93..AVT JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67652-22030E0 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL SABLE,TRIM4#,ﾄﾞｱ ｽﾋﾟｰｶ |
1 | ||
| 67651-22050E0 |
GX90,JZX93..AVT SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050E0 |
GX90 SABLE,TRIM4#,ﾂｲｰﾀｰ |
1 | ||
| 67651-22050G0 |
GX90;JZX90..TOUS JADE,TRIM6#,ﾂｲｰﾀｰ |
1 | ||
| 67661C - BASE, DOOR SPEAKER GRILLE, RH | ||||
| 67661-22010 |
GX90,JZX9# |
1 | ||
| 67661C - BASE, DOOR SPEAKER GRILLE, RH | ||||
| 67661-22010 |
GX90,JZX9# |
1 | ||
| 67662A - BASE, DOOR SPEAKER GRILLE, LH | ||||
| 67661-22010 |
GX90,JZX9# |
1 | ||
| 67662A - BASE, DOOR SPEAKER GRILLE, LH | ||||
| 67661-22010 |
GX90,JZX9# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-22200G0 |
GX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 67770-22210G0 |
GX90,JZX9# JADE,TRIM6# |
1 | ||
| 67770-22210E0 |
GX90,JZX9#..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 67770-22200E0 |
GX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 67770-22210J0 |
GX90,JZX90,91 GRAYISH BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-22200G0 |
GX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 67770-22210G0 |
GX90,JZX9# JADE,TRIM6# |
1 | ||
| 67770-22210E0 |
GX90,JZX9#..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 67770-22200E0 |
GX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 67770-22210J0 |
GX90,JZX90,91 GRAYISH BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-22210E0 |
GX90,JZX9#..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 67780-22210J0 |
GX90,JZX90,91 GRAYISH BLUE,TRIM8# |
1 | ||
| 67780-22200E0 |
GX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 67780-22200G0 |
GX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 67780-22210G0 |
GX90,JZX9# JADE,TRIM6# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-22210E0 |
GX90,JZX9#..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 67780-22210J0 |
GX90,JZX90,91 GRAYISH BLUE,TRIM8# |
1 | ||
| 67780-22200E0 |
GX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 67780-22200G0 |
GX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 67780-22210G0 |
GX90,JZX9# JADE,TRIM6# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90159-40223 | ||||
| 90164-40105 | ||||
| 90189-04178 | ||||
| 90468-04157 | ||||
| 90468-05047 | ||||
| 90904-67019 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
