GX90-BTMQK (1992)

Toyota Chaser

Production Oct 1992 - Sep 1996
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

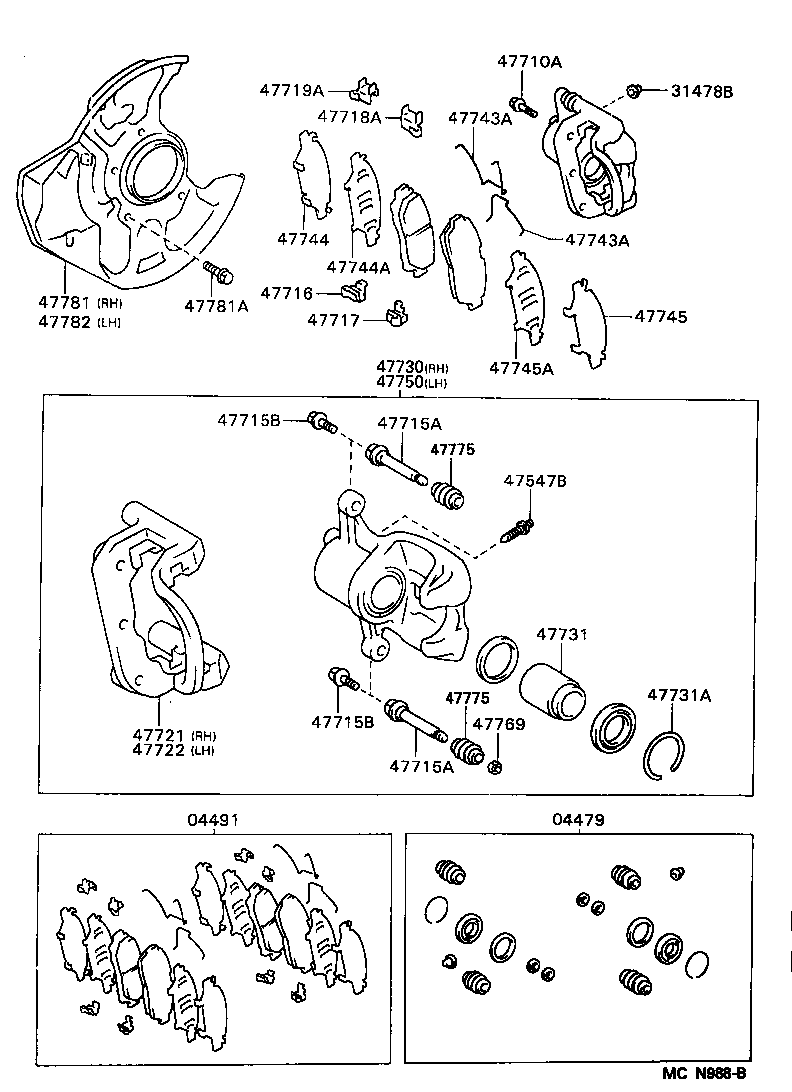

ILLUST NO. 1 OF 2(9210- )GX90,LX90,SX90

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47718A 47719A 47721 47722 47730 47731 47731A 47743A 47743A 47744 47744A 47745 47745A 47750 47769 47775 47775 47781 47781A 47782
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-22060

GX90,LX90,SX90

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-22370

GX90,LX90,SX90

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GX90,JZX9#,LX90,SX90

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-35020

GX90,LX90,SX90

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12228

GX90,JZX9#,LX90,SX90

*12−1.25PX32−24

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22050

GX90,LX90,SX90

 4
47715-30080

GX90,LX90,SX90

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22050

GX90,LX90,SX90

 4
47715-30080

GX90,LX90,SX90

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08304

GX90,LX90,SX90

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08304

GX90,LX90,SX90

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-22030

GX90,LX90,SX90

 2
47716-30220

GX90,LX90,SX90

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-30110

GX90,LX90,SX90

 2
47717-22020

GX90,LX90,SX90

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47718-22010

GX90,LX90,SX90

 2
47718-30010

GX90,LX90,SX90

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47719-22010

GX90,LX90,SX90

 2
47719-30010

GX90,LX90,SX90

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-22160

GX90,LX90,SX90

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-22120

GX90,LX90,SX90

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-22270

GX90,LX90,SX90

 1
47731 - PISTON, FRONT DISC BRAKE
47731-22040

GX90,LX90,SX90

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-67002

GX90,LX90,SX90

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-22050

GX90,LX90,SX90

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-22050

GX90,LX90,SX90

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47745-22070

GX90,LX90,SX90

 2
47745-22070

GX90,LX90,SX90

 1
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47744-22120

GX90,LX90,SX90

 1
47744-22120

GX90,LX90,SX90

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-22070

GX90,LX90,SX90

 2
47745-22070

GX90,LX90,SX90

 1
47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
47744-22120

GX90,LX90,SX90

 1
47744-22120

GX90,LX90,SX90

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-22270

GX90,LX90,SX90

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-22040

GX90,LX90,SX90

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-22040

GX90,LX90,SX90

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-22040

GX90,LX90,SX90

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-22170

GX90,LX90,SX90

 1
47781-22171

GX90,LX90,SX90

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

GX90,JZX9#,LX90,SX90

 8
90148-60028

GX90,JZX90,91,LX90,SX90

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-22171

GX90,LX90,SX90

 1
47782-22170

GX90,LX90,SX90

 1

ILLUST NO. 2 OF 2(9210- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-12110

GX90,LX90,SX90

 1
04465-22280

GX90,LX90,SX90

 1
04465-30240

GX90,LX90,SX90

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-22010

GX90,LX90,SX90

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-22021

GX90,LX90,SX90

 1
04947-22020

GX90,LX90,SX90

 1
