GX81-BTPZR (1988)
Toyota Chaser
ILLUST NO. 1 OF 2(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-22360 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09063 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-22370 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-22160 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-22160 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GX81,LX80,SX80,YX80 |
2 | ||
| 67839B - COVER, REAR DOOR SERVICE HOLE, LOWER | ||||
| 67839-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-22190 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-22070 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-22020 |
GX81,LX80,MX83,SX80,YX80 |
34 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
GX81,LX80,MX83,SX80,YX80 |
34 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-30020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
6 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-22211 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67871-22210 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-22210 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67872-22211 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-22250 |
GX81,JZX81,LX80,MX83,SX80,YX80 *TT,厚さ=5.0 |
1 | ||
| 68113-22260 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-22250 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-22240 |
GX81,JZX81,LX80,MX83,SX80,YX80 *TT,厚さ=5.0 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
GX81,LX80,SX80,YX80 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-22060 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08104 | ||||
| 90189-04069 | ||||
| 90950-01658 | ||||
| 93540-54010 | ||||

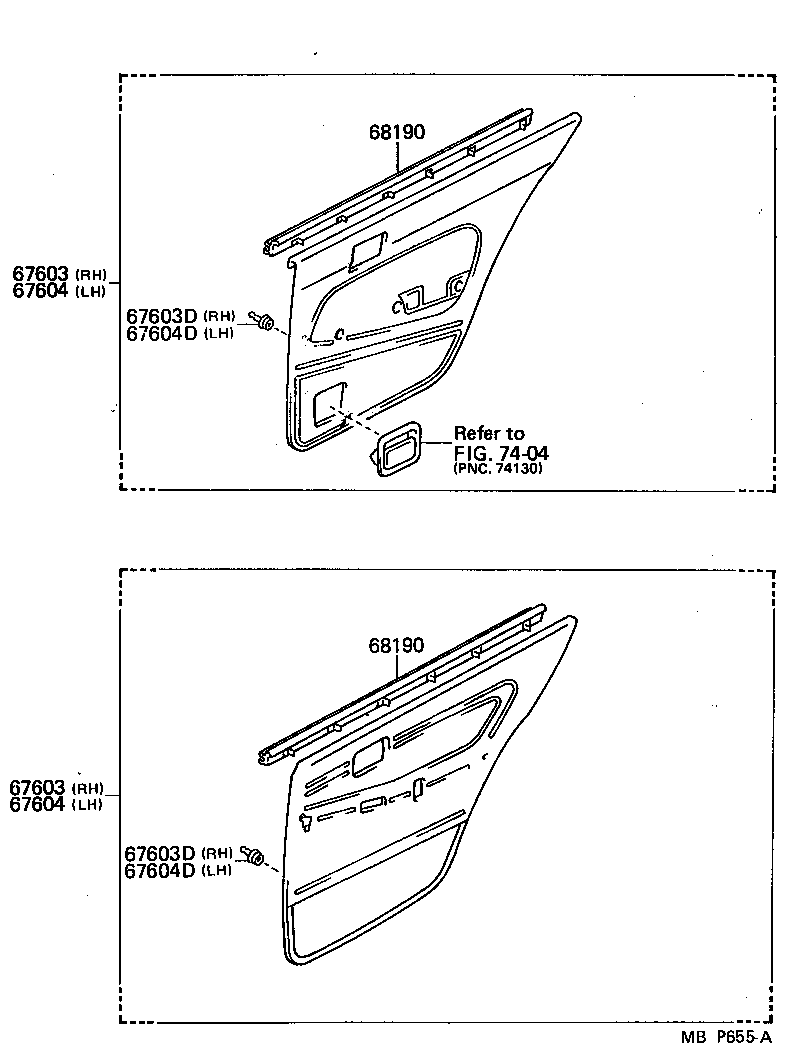

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2A56006 |
GX81..SPC SABLE,TRIM4# |
1 | ||
| 67630-2A56004 |
GX81,MX83..AVTG DARK BLUE,TRIM8# |
1 | ||
| 67630-2A56002 |
GX81,MX83..AVTG NEW MAROON,TRIM3# |
1 | ||
| 67630-2A56016 |
GX81,MX83..AVTG SABLE,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2A56006 |
GX81..SPC SABLE,TRIM4# |
1 | ||
| 67630-2A56004 |
GX81,MX83..AVTG DARK BLUE,TRIM8# |
1 | ||
| 67630-2A56002 |
GX81,MX83..AVTG NEW MAROON,TRIM3# |
1 | ||
| 67630-2A56016 |
GX81,MX83..AVTG SABLE,TRIM4# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80 |
9 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80 |
9 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2A56006 |
GX81..SPC SABLE,TRIM4# |
1 | ||
| 67640-2A56002 |
GX81,MX83..AVTG NEW MAROON,TRIM3# |
1 | ||
| 67640-2A56004 |
GX81,MX83..AVTG DARK BLUE,TRIM8# |
1 | ||
| 67640-2A56016 |
GX81,MX83..AVTG SABLE,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2A56006 |
GX81..SPC SABLE,TRIM4# |
1 | ||
| 67640-2A56002 |
GX81,MX83..AVTG NEW MAROON,TRIM3# |
1 | ||
| 67640-2A56004 |
GX81,MX83..AVTG DARK BLUE,TRIM8# |
1 | ||
| 67640-2A56016 |
GX81,MX83..AVTG SABLE,TRIM4# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80 |
9 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80 |
9 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 68240-22080 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 68240-22080 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| Linked diagrams | ||||
| 7404 | ||||
