GX81-BTPVZ (1988)
Toyota Chaser
Production
Aug 1988
-
Aug 1990
Engine
1GGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

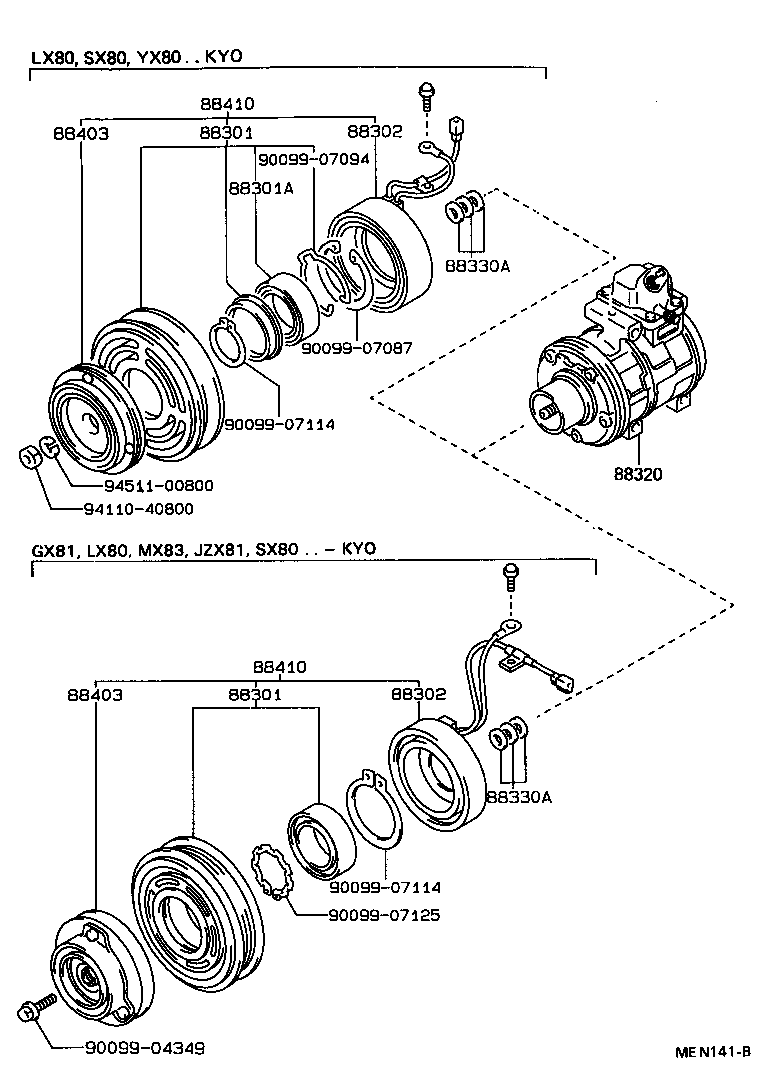

ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12180 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12180 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2B080 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2B080 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14541 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88320-14541 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22220 |
GX81,MX83..(AVT,AVTG,GT)..(HTWC,TWC,TWT) |
1 | ||
| 88410-22220 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22220 |
GX81,MX83..(AVT,AVTG,GT)..(HTWC,TWC,TWT) |
1 | ||
| 88410-22220 |
GX81..HTWC,TWC,TWT |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07087 | ||||
| 90099-07094 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

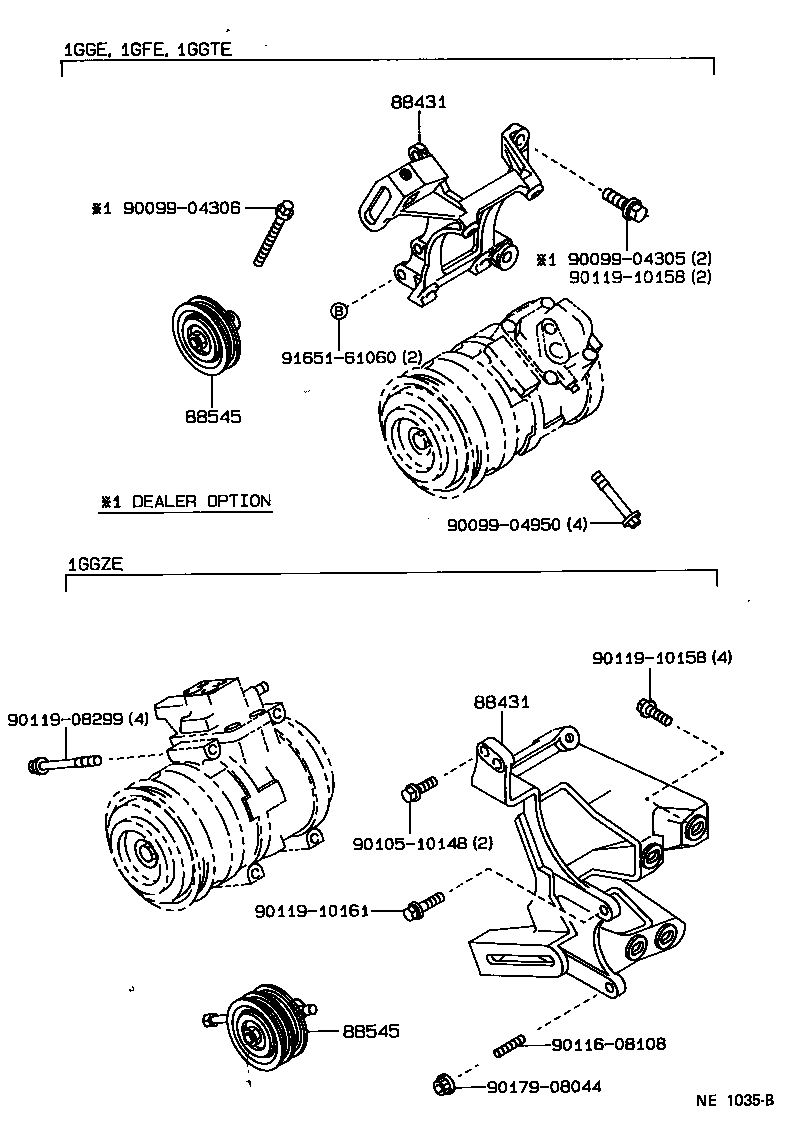

ILLUST NO. 1 OF 2(8808- )GX81
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22260 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88431-22260 |
GX81..AVT,GT |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22260 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88431-22260 |
GX81..AVT,GT |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-17010 |
GX81..HTWC,TWC,TWT |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-17010 |
GX81..HTWC,TWC,TWT |
1 | ||
| Common parts | ||||
| 90099-04305 | ||||
| 90099-04306 | ||||
| 90099-04950 | ||||
| 90105-10148 | ||||
| 90116-08108 | ||||
| 90119-08299 | ||||
| 90119-10158 | ||||
| 90119-10161 | ||||
| 90179-08044 | ||||
| 91651-61060 | ||||
