GX81-BTPVZ (1988)

Toyota Chaser

Production Aug 1988 - Aug 1990
Engine 1GGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)AVT,AVTG,GT ; (9008- )AVT,AVTG,GT,SXL,XG

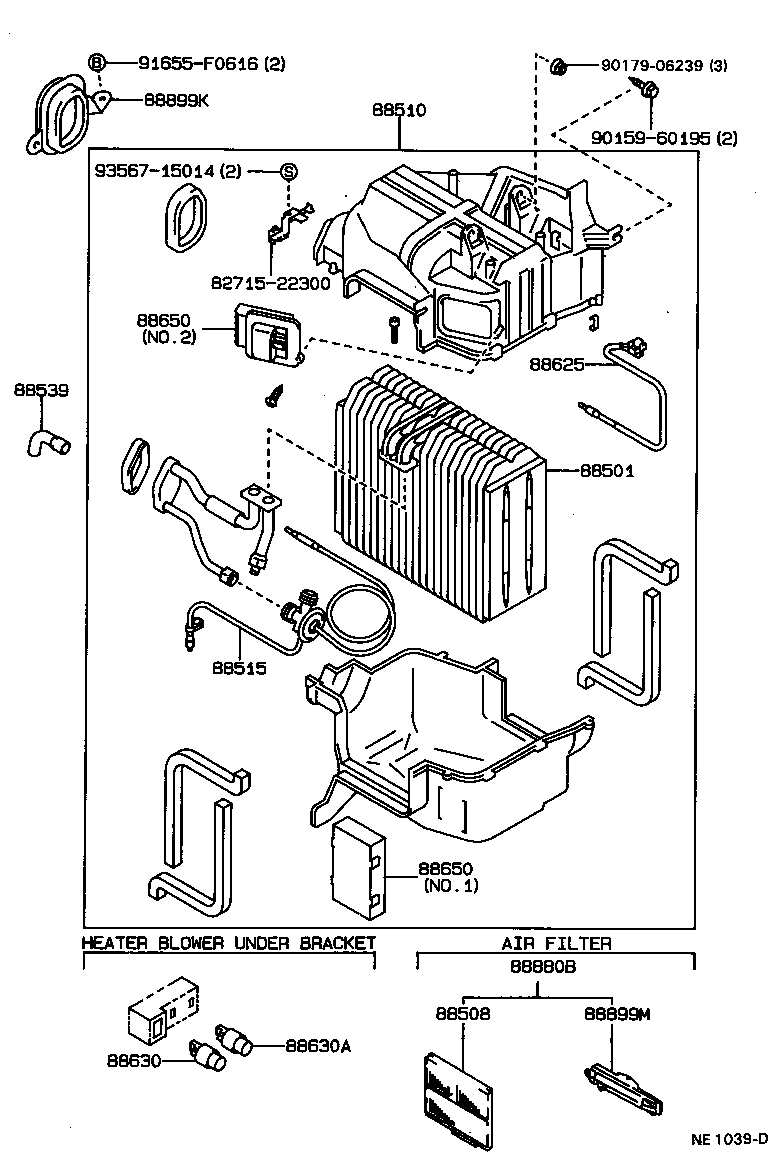

Click highlighted areas on diagram

diagram 8271522300 88501 88508 88510 88515 88539 88625 88630 88630A 88650 88650 88880B 88899K 88899M 9015960195 9017906239 91655F0616 9356715014
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-22210

GX81,MX83..AVT,AVTG,GT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88501-22180

GX81,MX83..AVT,AVTG,GT

 1
88501-22180

GX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88510 - UNIT ASSY, COOLER
88510-22430

GX81,MX83..(AVT,AVTG,GT)..(HTWC,TWC,TWT)

 1
88510-22610

GX81,MX83..(AVT,AVTG,GT)..(HTWC,TWC,TWT)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88515 - VALVE, COOLER EXPANSION
88515-22080

GX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88515-22081

GX81,MX83..AVT,AVTG,GT

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22130

GX81,MX83..AVT,AVTG,GT

 1
88539-22130

GX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88630 - RELAY ASSY, COOLER
90987-02004

GX81,MX83..AVT,AVTG,GT

 1
88630A - RELAY ASSY, COOLER
90987-03001

SX80;GX81,LX80..AVT,AVTG,GT,SXL,XG,XL

 1
90987-03001

GX81,MX83,SX80..AVT,AVTG,GT,KYO

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22340

GX81,MX83..AVT,AVTG,GT

NO.2

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22340

GX81,MX83..AVT,AVTG,GT

NO.2

 1
88899K - PLATE, COVER
88899-22150

GX81,MX83..AVT,AVTG,GT

 1
88899-22150

GX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
Common parts
82715-22300
90159-60195
90179-06239
91655-F0616
93567-15014
