GX81-BTPVZ (1988)

Toyota Chaser

Production Aug 1988 - Aug 1990
Engine 1GGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SPC,TWC,TWT

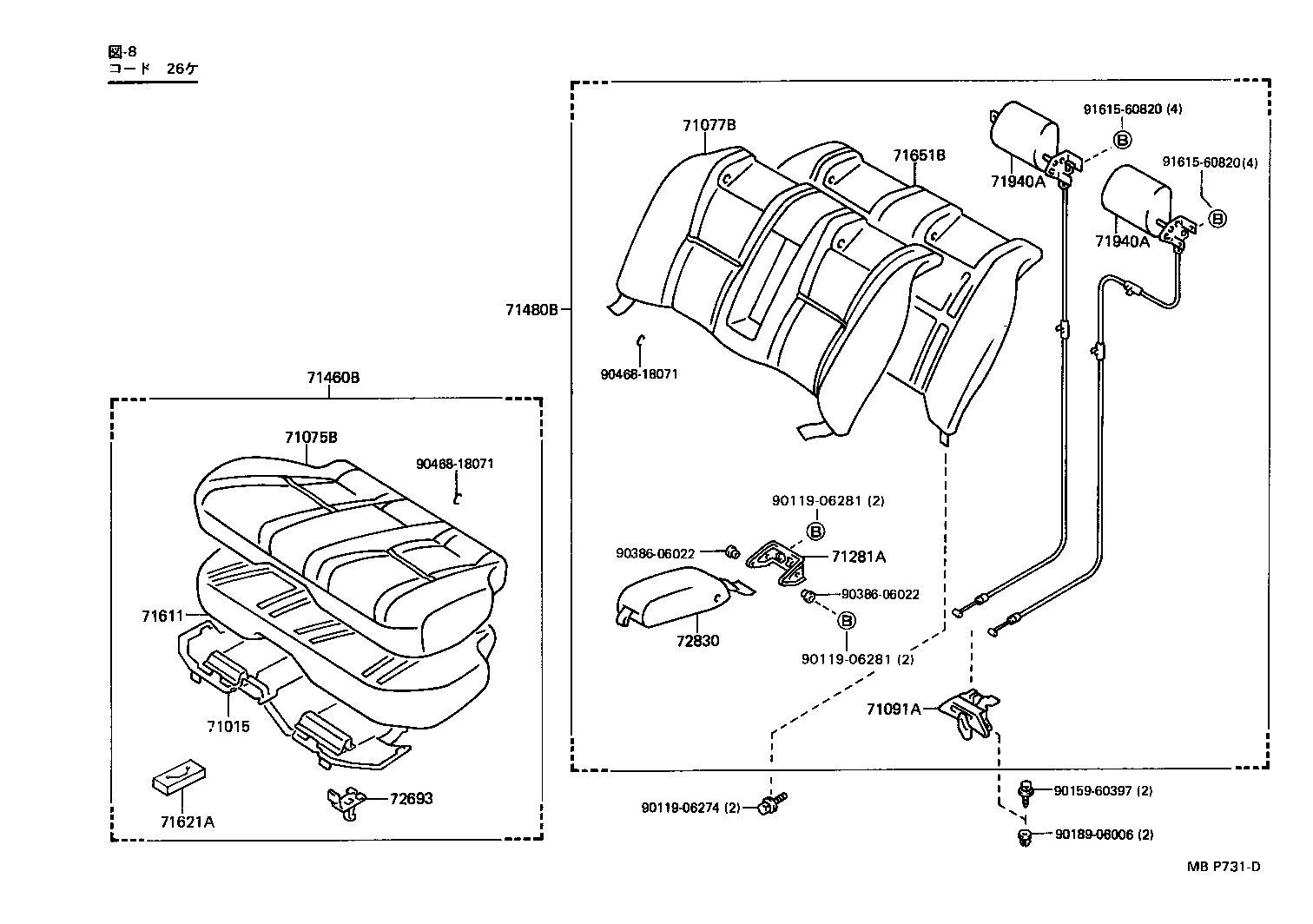

Click highlighted areas on diagram

diagram 71015 71075B 71077B 71091A 71281A 71460B 71480B 71611 71621A 71651B 71940A 71940A 72693 72830 9011906274 9011906281 9011906281 9015960397 9018906006 9038606022 9038606022 9046818071 9046818071 9161560820 9161560820
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-22160

GX81,JZX81,MX83..SPC,TWC,TWT

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2288002

GX81..TWT

NEW MAROON,TRIM3#

 1
71075-2288006

GX81..TWT

SABLE,TRIM4#

 1
71075-2288004

GX81..TWT

DARK BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2A41002

GX81..TWT

NEW MAROON,TRIM3#

 1
71077-2A41004

GX81..TWT

DARK BLUE,TRIM8#

 1
71077-2A41006

GX81..TWT

SABLE,TRIM4#

 1
71091A - HANDLE SUB-ASSY, REAR SEAT HEADREST
71091-9160104

GX81,MX83..SPC,TWC,TWT

DARK BLUE,TRIM8#

 1
71091-9160102

GX81,JZX81,MX83..SPC,TWC,TWT

NEW MAROON,TRIM3#

 1
71091-9160106

GX81,JZX81,MX83..SPC,TWC,TWT

SABLE,TRIM4#

 1
71281A - HINGE, REAR SEAT CENTER ARMREST
71281-22060

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-2228002

GX81..TWT

***,NEW MAROON,TRIM3#

 1
71560-2228006

GX81..TWT

***,SABLE,TRIM4#

 1
71560-2228004

GX81..TWT

***,DARK BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2A47002

GX81..TWT

***,NEW MAROON,TRIM3#

 1
71480-2A47006

GX81..TWT

***,SABLE,TRIM4#

 1
71480-2A47004

GX81..TWT

***,DARK BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71611-22340

GX81..TWT

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22260

GX81,JZX81..TWT

 1
71940A - HEADREST ASSY, REAR SEAT
71940-9161402

GX81..TWT

NEW MAROON,TRIM3#,右側

 1
71940-9161406

GX81..TWT

SABLE,TRIM4#,右側

 1
71950-9160504

GX81..TWT

DARK BLUE,TRIM8#,左側

 1
71950-9160506

GX81..TWT

SABLE,TRIM4#,左側

 1
71940-9161404

GX81..TWT

DARK BLUE,TRIM8#,右側

 1
71950-9160502

GX81..TWT

NEW MAROON,TRIM3#,左側

 1
71940A - HEADREST ASSY, REAR SEAT
71940-9161402

GX81..TWT

NEW MAROON,TRIM3#,右側

 1
71940-9161406

GX81..TWT

SABLE,TRIM4#,右側

 1
71950-9160504

GX81..TWT

DARK BLUE,TRIM8#,左側

 1
71950-9160506

GX81..TWT

SABLE,TRIM4#,左側

 1
71940-9161404

GX81..TWT

DARK BLUE,TRIM8#,右側

 1
71950-9160502

GX81..TWT

NEW MAROON,TRIM3#,左側

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-24010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-2229004

GX81..TWT

DARK BLUE,TRIM8#

 1
72830-2229002

GX81..TWT

NEW MAROON,TRIM3#

 1
72830-2229006

GX81..TWT

SABLE,TRIM4#

 1
Common parts
90119-06274
90119-06281
90159-60397
90189-06006
90386-06022
90468-18071
91615-60820
