GX81-BTPQK (1988)
Toyota Chaser

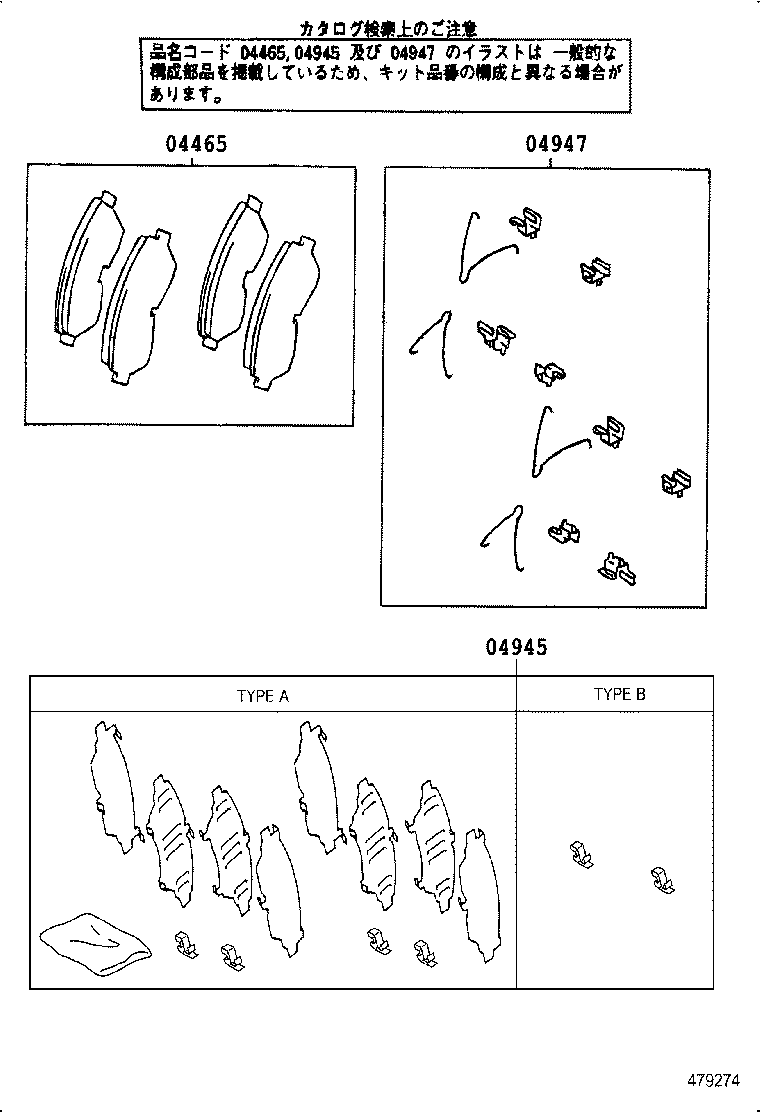

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-22060 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL ﾏｰｸ NBK PN529 |
1 | ||
| 04465-22060 |
GX81,LX80,SX80,YX80 ﾏｰｸ NBK PN529 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-22120 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 04945-22120 |
GX81,LX80,SX80,YX80 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-35021 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| 04947-35021 |
GX81,LX80,SX80,YX80 |
1 | ||

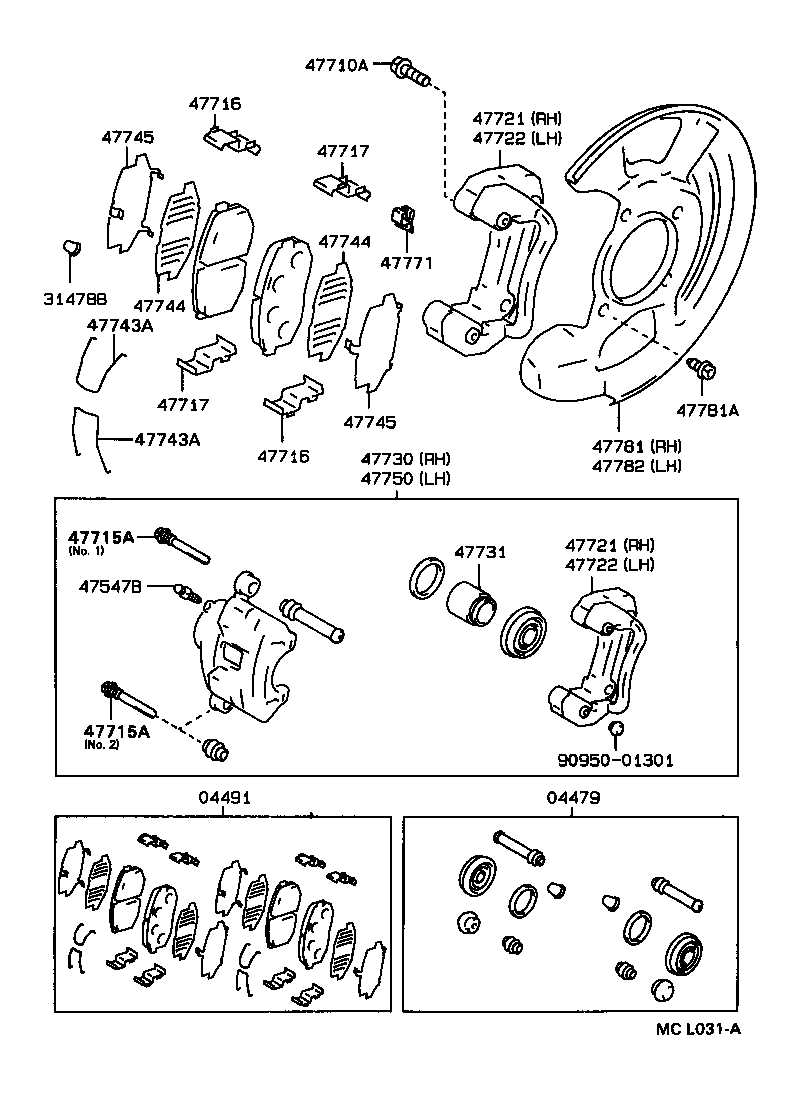

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-22020 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-22290 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| 04491-22340 |
GX81,LX80,SX80,YX80 |
1 | ||
| 04491-22260 |
GX81..AVT ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-35020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12058 |
GX81,JZX81,LX80,MX83,SX80,YX80 *12−1.25PX31−20 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22010 |
GX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47715-22010 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22010 |
GX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47715-22010 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-35010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-35010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-35010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-35010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-22090 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-22090 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-22070 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-22070 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-22190 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-35030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47744-35030 |
GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-35030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47744-35030 |
GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-35030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47745-35030 |
GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-35030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 47745-35030 |
GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-22190 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-22030 |
GX81..AVT ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47781-22130 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-08696 |
JZX81..AVT;GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL |
8 | ||
| 90119-08696 |
GX81..AVT,GT ｱﾘ(ESC) OR ｱﾘ(*66) |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-22030 |
GX81..AVT ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
| 47782-22130 |
GX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL |
1 | ||
| Common parts | ||||
| 90950-01301 | ||||
