GX81-BTPQF (1988)

Toyota Chaser

Production Aug 1988 - Oct 1992
Engine 1GGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9210)

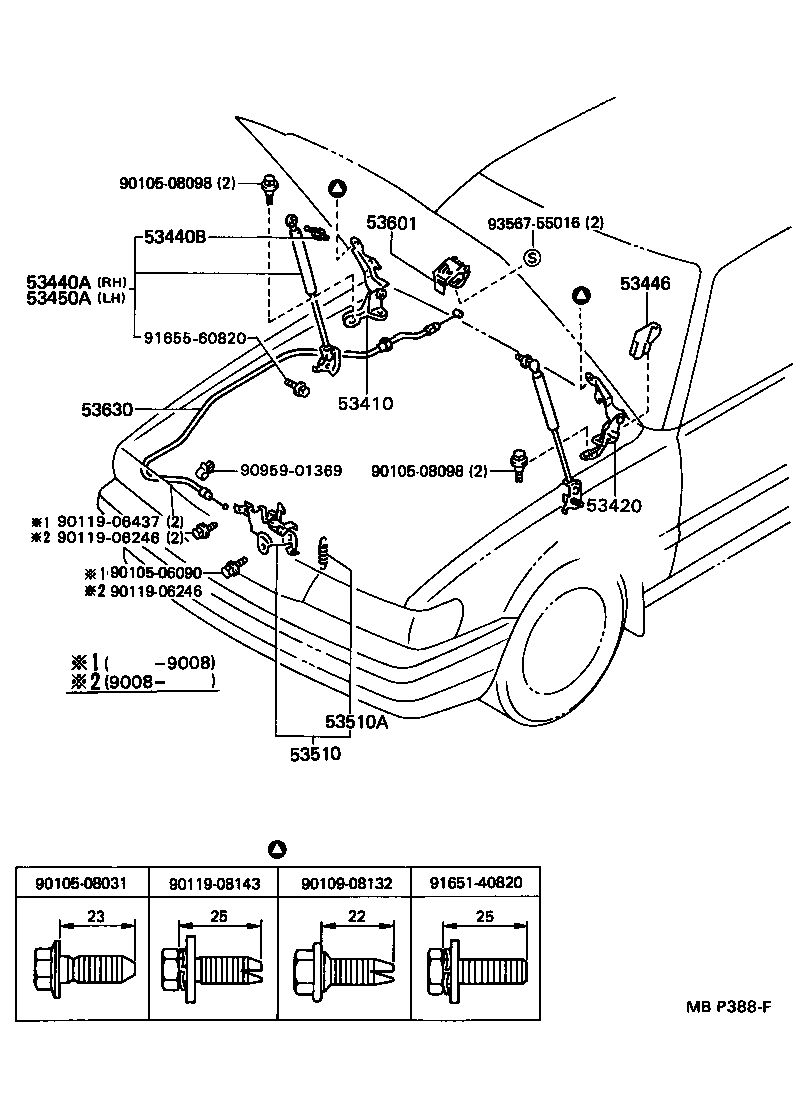

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440B 53446 53450A 53510 53510A 53601 53630 9010506090 9010508031 9010508098 9010508098 9010908132 9011906246 9011906246 9011906437 9011908143 9095901369 9165140820 9165560820 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-22080

GX81,JZX81,LX80,MX83,SX80,YX80

 1
53420 - HINGE ASSY, HOOD, LH
53420-22080

GX81,JZX81,LX80,MX83,SX80,YX80

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-29046

GX81,JZX81,LX80,MX83,SX80,YX80

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-22020

GX81,JZX81,LX80,MX83,SX80,YX80

 2
53446 - COVER, HOOD HINGE, LH
53446-22010

GX81,JZX81,LX80,MX83,SX80,YX80

 1
53450A - SUPPORT ASSY, HOOD, LH
53450-29046

GX81,JZX81,LX80,MX83,SX80,YX80

 1
53510 - LOCK ASSY, HOOD
53510-22280

GX81,JZX81,LX80,MX83,SX80,YX80

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18024

GX81,LX80,MX83,SX80,YX80

CW=18,WD=1.8

 1
90506-09039

GX81,JZX81,LX80,MX83,SX80,YX80

線径=0.9,ｺｲﾙ巻数=21.25,CW=21.25,WD=0.9

 1
90506-18061

GX81,JZX81,LX80,MX83,SX80,YX80

線径=1.8,ｺｲﾙ巻数=18,CW=18,WD=1.8

 1
90506-09029

GX81,JZX81,LX80,MX83,SX80,YX80

線径=0.9,CW=26.5,WD=0.9

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-2006010

GX81,LX80,MX83,SX80,YX80

DARK BLUE,TRIM8#

 1
53601-2006036

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

SABLE,TRIM4#

 1
53601-2006042

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG

NEW MAROON,TRIM3#

 1
53601-2006033

GX81,JZX81,LX80,MX83,SX80,YX80

MEDIUM GRAY,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-22180

GX81,JZX81,LX80,MX83,SX80,YX80

 1
Common parts
90105-06090
90105-08031
90105-08098
90109-08132
90119-06246
90119-06437
90119-08143
90959-01369
91651-40820
91655-60820
93567-55016
