GX81-BTPQF (1988)
Toyota Chaser
(8808-9008)2LT..5F ; (8808-9008)1GFE,1GG#..4FC ;(9008- )1G#,1JZ#
12V 80A,90A,100A

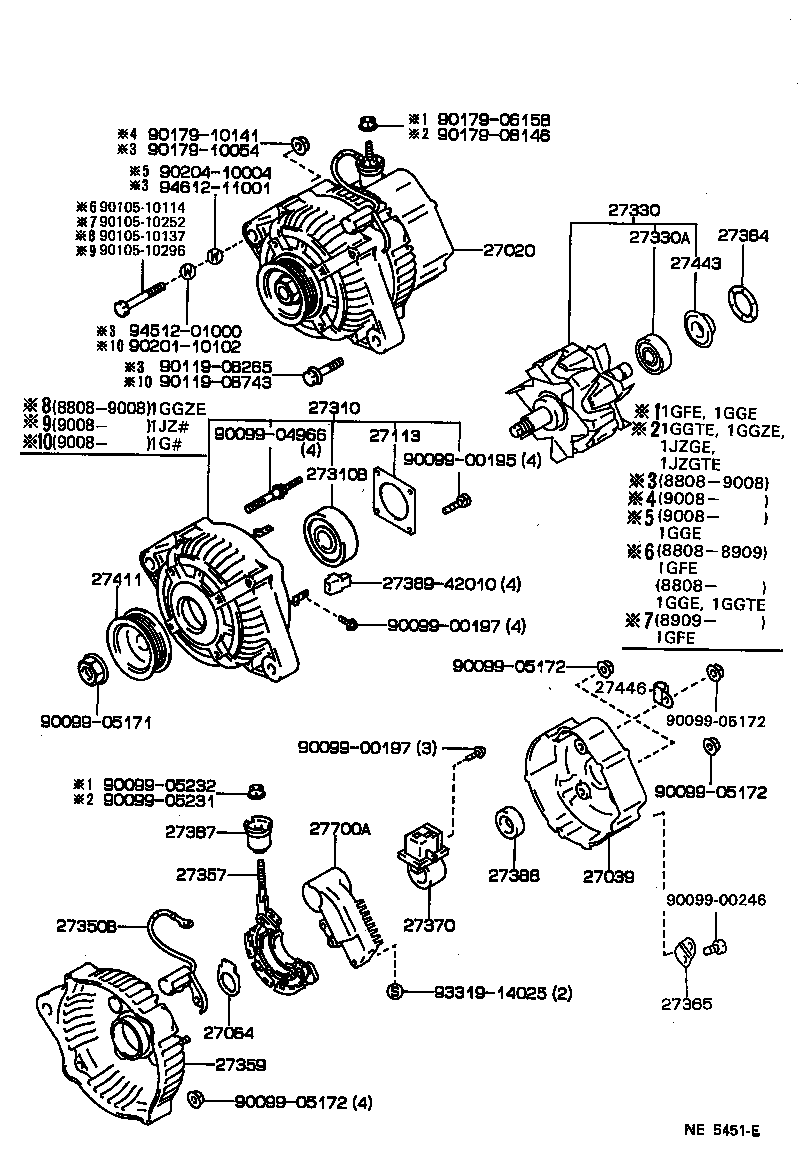

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-70290 |
1GFE,1GGE..GX81..4FC 12V 80A |
1 | ||
| 27060-70290 |
1GGE..GX81;1GFE..GX81..4FC 12V 80A |
1 | ||
| 27060-70291 |
1GGE..GX81;1GFE..GX81..4FC 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
2LT..LX80..4FC..(XG,XL);1GFE,1GGE,4SFI..GX81,SX80..4FC |
1 | ||
| 27039-42010 |
1GFE,4SFE..GX81,SX80..4FC;1GGE,2LT..GX81,LX80..AVT,XG,XL |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2LT..LX80..4FC..(XG,XL);1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27064-42010 |
1GGE,2LT..GX81,LX80..AVT,XG,XL;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1GGE..GX81;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27312-42010 |
1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-42010 |
1GFE,1GGE..GX81..4FC |
1 | ||
| 27310-74110 |
1GGE..GX81;1GFE..GX81..4FC |
1 | ||
| 27310-42010 |
1GGE..GX81;1GFE..GX81..4FC |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1GGE..GX81;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 90099-10160 |
1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC |
1 | ||
| 90099-10160 |
1GFE,1GG#,4SFI..GX81,SX80..4FC |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42010 |
1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC |
1 | ||
| 27330-42010 |
1GFE,1GGE,4SFI..GX81,SX80..4FC |
1 | ||
| 27330-76030 |
1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1G#,2L#,7MGE,4SFE,3YP..GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 90099-10140 |
1GFE,1GG#,2L#,4SFI,3YP..GX81,LX80,SX80,YX80 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52096 |
1GFE,1GGE,2LT..GX81,LX80..4FC..(AVT,SXL,XG,XL) |
1 | ||
| 90099-52096 |
2L#..LX80;1GFE,1GGE..GX81..4FC |
1 | ||
| 90099-52101 |
1GFE,1GGE..GX81..4FC |
1 | ||
| 90099-52101 |
1GGE..GX81;1GFE..GX81..4FC |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-42010 |
1GFE,1GGE..GX81..4FC |
1 | ||
| 27357-50040 |
1GGE..GX81;1GFE..GX81..4FC |
1 | ||
| 27357-42010 |
1GGE..GX81;1GFE..GX81..4FC |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-42010 |
1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC |
1 | ||
| 27359-42010 |
1GFE,1GGE,4SFI..GX81,SX80..4FC |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-42010 |
2LT..LX80..4FC..(XG,XL);1GFE,1GG#,4SFI..GX81,SX80..4FC |
1 | ||
| 27370-42010 |
1GGE..GX81;1GFE,7MGE,4SFE..GX81,MX83,SX80..4FC |
1 | ||
| 27370-42010 |
1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27370-75060 |
1GGE,2LT..GX81,LX80..AVT,XG,XL;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27384-42010 |
1GFE,1GGE,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27384-50030 |
1GGE..GX81;2LT..LX80..4FC..(XG,XL);1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27384-42010 |
1GGE..GX81;1GFE,7MGE,4SFE..GX81,MX83,SX80..4FC |
1 | ||
| 27384-42010 |
2LT..LX80..4FC..(XG,XL);1GFE,1GG#,4SFI..GX81,SX80..4FC |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
1GFE,4SFE..GX81,SX80..4FC;1GGE,2LT..GX81,LX80..AVT,XG,XL |
1 | ||
| 27387-42020 |
2LT..LX80..4FC..(XG,XL);1GFE,1GGE,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
2LT..LX80..4FC..(XG,XL);1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27388-42010 |
1GGE,2LT..GX81,LX80..AVT,XG,XL;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42010 |
1GGE..GX81;1GFE..GX81..4FC |
1 | ||
| 27411-42010 |
1GFE,1GG#..GX81..4FC |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
4SFI..SX80..5F;1GFE,1GG#,7MGE..GX81,MX83 |
1 | ||
| 27700-16010 |
1G#..GX81 |
1 | ||
| 27700-50010 |
1GGE..GX81;1GFE..GX81..4FC |
1 | ||
| 27700-16010 |
1GGE..GX81;1GFE..GX81..4FC |
1 | ||
| Common parts | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90099-05232 | ||||
| 90105-10114 | ||||
| 90105-10137 | ||||
| 90105-10252 | ||||
| 90105-10296 | ||||
| 90119-08265 | ||||
| 90119-08743 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90179-10054 | ||||
| 90179-10141 | ||||
| 90201-10102 | ||||
| 90204-10004 | ||||
| 93319-14025 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
