GX81-BTMVZ (1988)

Toyota Chaser

Production Aug 1988 - Aug 1990
Engine 1GGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9210)

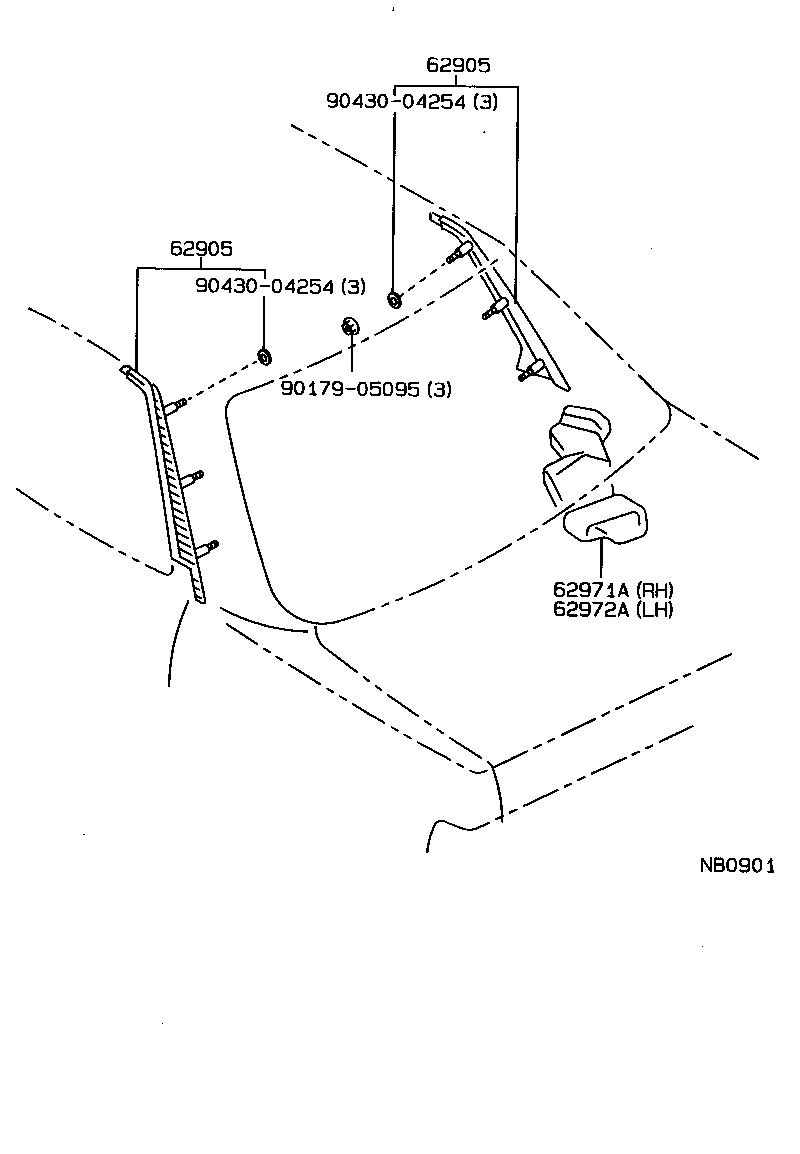

Click highlighted areas on diagram

diagram 62905 62905 62971A 62972A 9017905095 9043004254 9043004254
Part # Description Qty Price
62905 - LOUVER, QUARTER VENTILATION
62905-91607

GX81,LX80,MX83,SX80,YX80

右側

 1
62905-91616

GX81,LX80,MX83,SX80,YX80

ｶｺﾞｼﾏ ｼﾖｳ,右側

 1
62906-91616

GX81,LX80,MX83,SX80,YX80

ｶｺﾞｼﾏ ｼﾖｳ,左側

 1
62906-91607

GX81,LX80,MX83,SX80,YX80

左側

 1
62905 - LOUVER, QUARTER VENTILATION
62905-91607

GX81,LX80,MX83,SX80,YX80

右側

 1
62905-91616

GX81,LX80,MX83,SX80,YX80

ｶｺﾞｼﾏ ｼﾖｳ,右側

 1
62906-91616

GX81,LX80,MX83,SX80,YX80

ｶｺﾞｼﾏ ｼﾖｳ,左側

 1
62906-91607

GX81,LX80,MX83,SX80,YX80

左側

 1
62971A - DUCT, ROOF SIDE AIR, NO.1 RH
62971-91602

GX81,JZX81,LX80,MX83,SX80,YX80

 1
62972A - DUCT, ROOF SIDE AIR, NO.1 LH
62972-91602

GX81,JZX81,LX80,MX83,SX80,YX80

 1
Common parts
90179-05095
90430-04254
