GX81-BTMVZ (1988)
Toyota Chaser

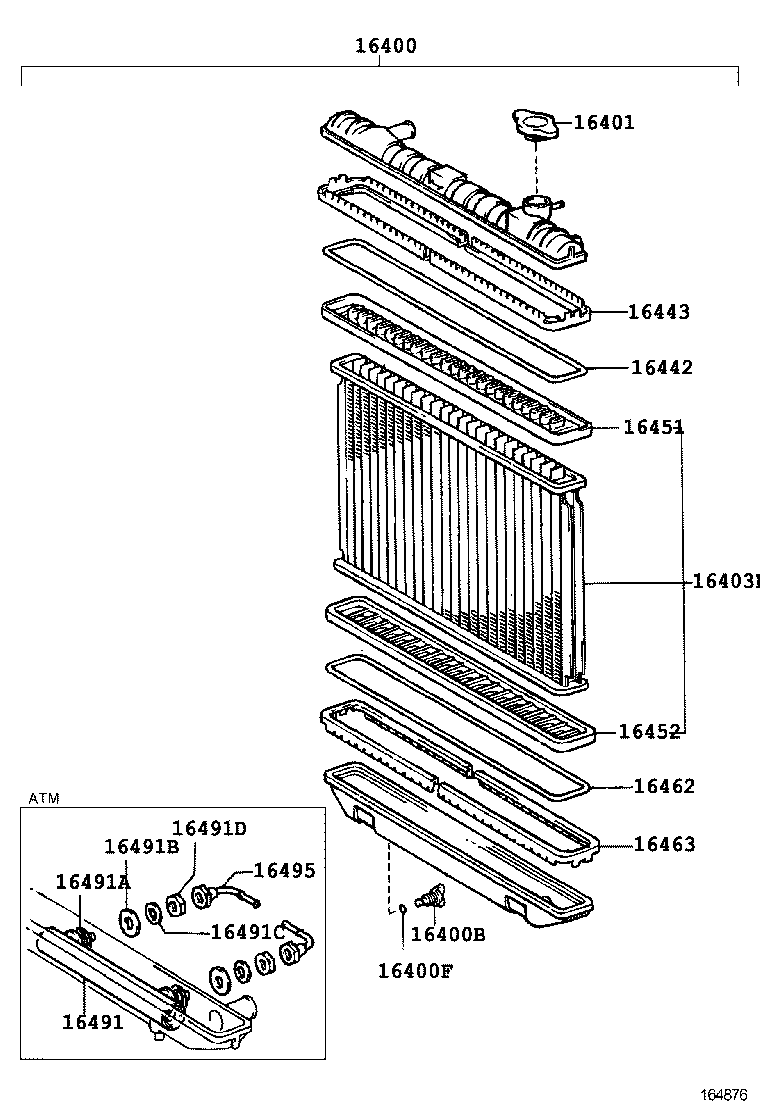

ILLUST NO. 2 OF 2(8808- )1GFE,1GG#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-70320 |
1GGTE..GX81..5F |
1 | ||
| 16400-70320 |
1GGTE..GX81..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1GFE,1GG#..GX81 |
1 | ||
| 23322-54010 |
1GFE,1GG#..GX81 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1GFE,1GG#..GX81 |
1 | ||
| 96711-19007 |
1GFE,1GG#..GX81 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1GFE,1GG#..GX81 |
1 | ||
| 16401-63010 |
1GFE,1GG#..GX81 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-70340 |
1GGTE,1GGZE..GX81 |
1 | ||
| 16403-70340 |
1GGTE,1GGZE..GX81 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-70350 |
1GGTE,1GGZE..GX81 |
1 | ||
| 16462-70350 |
1GGTE,1GGZE..GX81 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16463-70350 |
1GGTE,1GGZE..GX81 |
2 | ||
| 16463-70350 |
1GGTE,1GGZE..GX81 |
2 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-70320 |
1GGTE,1GGZE..GX81 |
2 | ||
| 16452-70320 |
1GGTE,1GGZE..GX81 |
2 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-70350 |
1GGTE,1GGZE..GX81 |
1 | ||
| 16462-70350 |
1GGTE,1GGZE..GX81 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-70350 |
1GGTE..GX81;1GFE,1GGE,1GGZE..GX81..4FC |
2 | ||
| 16463-70350 |
1GGTE..GX81;1GFE,1GGE,1GGZE..GX81..4FC |
2 | ||

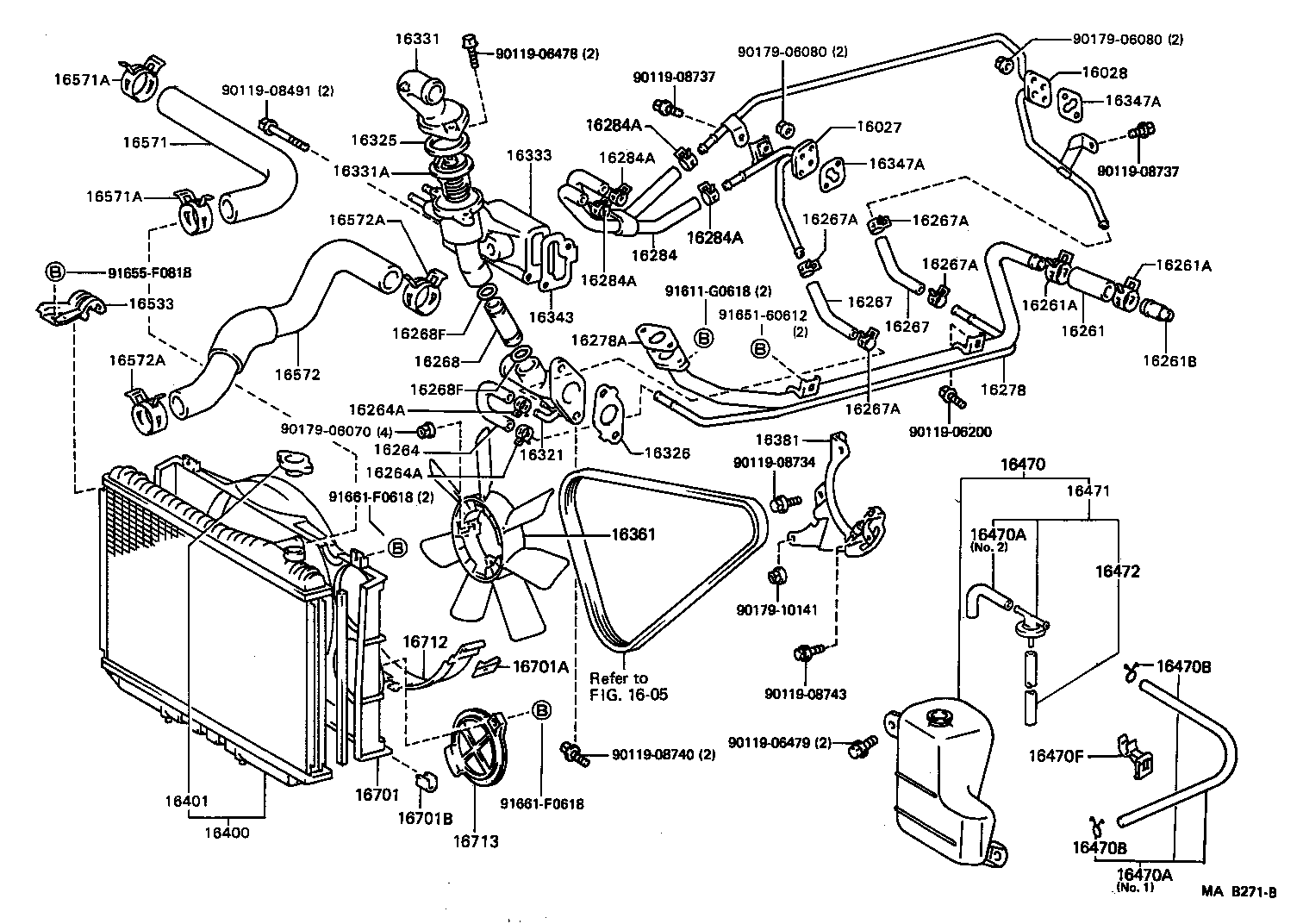

ILLUST NO. 1 OF 2(8808- )1GGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-88340 |
1GGTE..GX81 |
1 | ||
| 16027-88341 |
1GGTE..GX81 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-88340 |
1GGTE..GX81 |
1 | ||
| 16028-88341 |
1GGTE..GX81 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88300 |
1GG#..GX81 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-26003 |
1GG#..GX81 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-26003 |
1GG#..GX81 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-22001 |
1GG#..GX81 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 90910-05168 |
1GGTE..GX81 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15016 |
1GGTE..GX81 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15016 |
1GGTE..GX81 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 90910-05169 |
1GGTE..GX81 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 90910-05169 |
1GGTE..GX81 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTE..GX81 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTE..GX81 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTE..GX81 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTE..GX81 |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88301 |
1GGE,1GGTE..GX81 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24018 |
1GFE,1GGE,1GGTE..GX81 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24018 |
1GFE,1GGE,1GGTE..GX81 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-88340 |
1GGTE..GX81 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-88300 |
1GGE,1GGTE..GX81 *54 & (8808-9008)*53 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-88340 |
1GGTE..GX81 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
1GGTE..GX81 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
1GGTE..GX81 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
1GGTE..GX81 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
1GGTE..GX81 |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-88340 |
1GGTE..GX81 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1GG#..GX81 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-70011 |
1GGE,1GGTE..GX81 *54 & (8808-9008)*53 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-88341 |
1GGTE..GX81 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03063 |
1GG#..GX81 *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-88340 |
1GGTE..GX81..5F |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-88340 |
1GGTE..GX81 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-88340 |
1GGTE..GX81 |
2 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-88340 |
1GGTE..GX81 |
2 | ||
| 16361 - FAN | ||||
| 16361-70030 |
1GGTE..GX81;1GGE..GX81..5F |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-88301 |
1GGE..GX81;1GGTE..GX81..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-70320 |
1GGTE..GX81..5F |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1GFE,1GG#..GX81 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-70110 |
1GFE,1GG#..GX81 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-70020 |
1GFE,1GG#..GX81 NO.1 |
1 | ||
| 85338-95A01 |
1GFE,1GG#..GX81 NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-70020 |
1GFE,1GG#..GX81 NO.1 |
1 | ||
| 85338-95A01 |
1GFE,1GG#..GX81 NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GFE,1GG#..GX81 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GFE,1GG#..GX81 |
2 | ||
| 16470F - CLAMP, RADIATOR RESERVE TANK HOSE | ||||
| 90929-01233 |
1GFE,1GG#..GX81 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70080 |
1GFE,1GG#..GX81 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
1GFE,1GG#..GX81 長さ=600 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70020 |
1GFE,1GG#..GX81 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-70200 |
1GGTE..GX81 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1GFE,1GG#..GX81 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1GFE,1GG#..GX81 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-70170 |
1GGE,1GGTE..GX81 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1GFE,1GGE,1GGTE..GX81 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1GFE,1GGE,1GGTE..GX81 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-70080 |
1GGTE..GX81 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1GGTE..GX81;1GFE,1GGE..GX81..5F |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1GFE,1GG#..GX81 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-70070 |
1GGTE..GX81;1GFE,1GGE..GX81..5F |
1 | ||
| 16713 - SHROUD, FAN, NO.3 | ||||
| 16713-70010 |
1GGTE..GX81..5F |
1 | ||
| Common parts | ||||
| 90119-06200 | ||||
| 90119-06478 | ||||
| 90119-06479 | ||||
| 90119-08491 | ||||
| 90119-08734 | ||||
| 90119-08737 | ||||
| 90119-08740 | ||||
| 90119-08743 | ||||
| 90179-06070 | ||||
| 90179-06080 | ||||
| 90179-10141 | ||||
| 91611-G0618 | ||||
| 91651-60612 | ||||
| 91655-F0818 | ||||
| 91661-F0618 | ||||
| Linked diagrams | ||||
| 1605 | ||||
