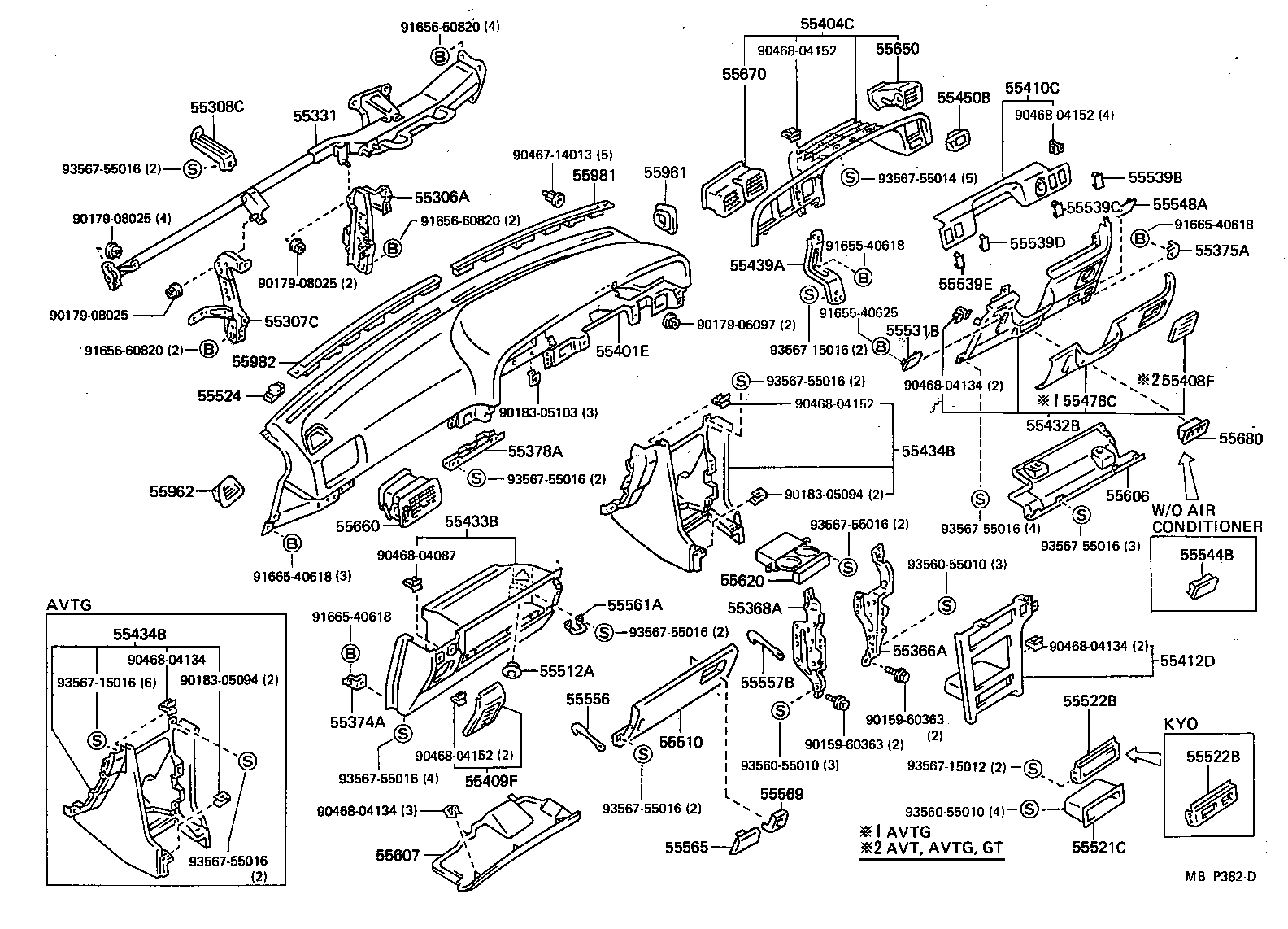

GX81-BTMQK (1988)
Toyota Chaser
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-22160 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-22210 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55307-22240 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-22120 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-2224002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55401-2224006 |
GX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55401-2224006 |
GX81,JZX81,LX80,MX83,SX80..(AVT,AVTG,GT,SXL,XG,XL)..(CI,DSL,HTWC,TD,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 55401-2224003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55401-2224004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-22140 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 55404-22120 |
GX81,MX83..AVT,AVTG,GT |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-2209002 |
GX81,JZX81,MX83..AVT,AVTG,GT NEW MAROON,TRIM3# |
1 | ||
| 55408-2209004 |
GX81,MX83..AVT,AVTG,GT DARK BLUE,TRIM8# |
1 | ||
| 55408-2209006 |
GX81,JZX81..AVT,GT SABLE,TRIM4# |
1 | ||
| 55408-2209003 |
GX81,JZX81,MX83..AVT,AVTG,GT MEDIUM GRAY,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-2212004 |
GX81..AVT,GT DARK BLUE,TRIM8# |
1 | ||
| 55409-2212003 |
GX81,JZX81..AVT,GT MEDIUM GRAY,TRIM1# |
1 | ||
| 55409-2212006 |
GX81,JZX81..AVT,GT SABLE,TRIM4# |
1 | ||
| 55409-2212002 |
GX81,JZX81..AVT,GT NEW MAROON,TRIM3# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-22210 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-22200 |
GX81,MX83..AVT,AVTG,GT |
1 | ||
| 55412-22250 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-2204004 |
GX81..AVT..HTWC DARK BLUE,TRIM8# |
1 | ||
| 55045-2205006 |
GX81,JZX81..(AVT,GT)..(TWC,TWT) SABLE,TRIM4# |
1 | ||
| 55045-2205004 |
GX81..TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 55045-2204006 |
GX81..AVT..HTWC SABLE,TRIM4# |
1 | ||
| 55045-2204002 |
GX81..AVT..HTWC NEW MAROON,TRIM3# |
1 | ||
| 55045-2204003 |
GX81..AVT..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 55045-2205002 |
GX81..AVT..HTWC ｱﾘ(ｴｱ ﾊﾞﾂｸﾞ ｼｽﾃﾑ),NEW MAROON,TRIM3# |
1 | ||
| 55045-2205003 |
GX81..AVT..HTWC ｱﾘ(ｴｱ ﾊﾞﾂｸﾞ ｼｽﾃﾑ),MEDIUM GRAY,TRIM1# |
1 | ||
| 55045-2205003 |
GX81,JZX81..(AVT,GT)..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 55045-2205002 |
GX81,JZX81..(AVT,GT)..(TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 55045-2205006 |
GX81..AVT..HTWC ｱﾘ(ｴｱ ﾊﾞﾂｸﾞ ｼｽﾃﾑ),SABLE,TRIM4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-2211003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55433-2211004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55433-2211006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55433-2211002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-2209004 |
GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL DARK BLUE,TRIM8# |
1 | ||
| 55434-2209002 |
GX81,JZX81,LX80,SX80..AVT,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55434-2209003 |
GX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL MEDIUM GRAY,TRIM1# |
1 | ||
| 55434-2209006 |
GX81,JZX81,LX80,SX80..AVT,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-2209004 |
GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL DARK BLUE,TRIM8# |
1 | ||
| 55434-2209002 |
GX81,JZX81,LX80,SX80..AVT,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55434-2209003 |
GX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL MEDIUM GRAY,TRIM1# |
1 | ||
| 55434-2209006 |
GX81,JZX81,LX80,SX80..AVT,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-2212006 |
GX81,JZX81,LX80,SX80..AVT,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55550-2212003 |
GX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL MEDIUM GRAY,TRIM1# |
1 | ||
| 55550-2212004 |
GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL DARK BLUE,TRIM8# |
1 | ||
| 55550-2212002 |
GX81,JZX81,LX80,SX80..AVT,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-2214004 |
GX81,LX80..5F;SX80..5F..(XG,XL);LX80,SX80..KYO..(CI,TD) DARK BLUE,TRIM8# |
1 | ||
| 55531-2214002 |
GX81,LX80,SX80..5F..(AVT,GT,SXL,XG) NEW MAROON,TRIM3# |
1 | ||
| 55531-2214003 |
GX81,LX80..5F;SX80..5F..(XG,XL);LX80,SX80..KYO..(HTWC,TD) MEDIUM GRAY,TRIM1# |
1 | ||
| 55531-2214006 |
GX81,LX80,SX80..5F..(AVT,GT,SXL,XG,XL) SABLE,TRIM4# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-22080 |
GX81,MX83..AVT,AVTG,GT |
1 | ||
| 55539-22080 |
GX81,JZX81..AVT,AVTG,GT |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-22080 |
GX81,JZX81..(AVT,GT)..(HTWC,TWT) |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-22090 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-22090 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-2204002 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55548-2204002 |
GX81,JZX81,LX80,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55548-2204004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55548-2204006 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55548-2204003 |
GX81,JZX81,LX80,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55548-2204006 |
GX81,JZX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK | ||||
| 55557-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-2202004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55565-2202002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55565-2202003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55565-2202006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55565-22020B0 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-2203006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55569-2203004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55569-2203002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55569-2203003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-22110 |
GX81,JZX81,LX80,MX83 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-22070 |
GX81,JZX81,LX80,MX83..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-22010 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-22120 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-2212004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55660-2212002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55660-2212006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55660-2212003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-22140 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-14030B0 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-1403016 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55680-1403024 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55680-1403022 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2206002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55961-2206003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55961-2206006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55961-2206004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2206004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55962-2206003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55962-2206006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55962-2206002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-2203004 |
GX81,MX83..AVT,AVTG,GT DARK BLUE,TRIM8# |
1 | ||
| 55981-2203002 |
GX81,JZX81,MX83..AVT,AVTG,GT NEW MAROON,TRIM3# |
1 | ||
| 55981-2203006 |
GX81,JZX81,MX83..AVT,AVTG,GT SABLE,TRIM4# |
1 | ||
| 55981-2203013 |
GX81,JZX81,MX83..AVT,AVTG,GT MEDIUM GRAY,TRIM1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-2201006 |
GX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55982-2201004 |
GX81,LX80,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55982-2201106 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 55982-2201103 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55982-2201102 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 55982-2201104 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 55982-2201002 |
GX81,LX80,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90159-60363 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14013 | ||||
| 90468-04087 | ||||
| 90468-04134 | ||||
| 90468-04152 | ||||
| 91655-40618 | ||||
| 91655-40625 | ||||
| 91656-60820 | ||||
| 91665-40618 | ||||
| 93560-55010 | ||||
| 93567-15012 | ||||
| 93567-15016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
