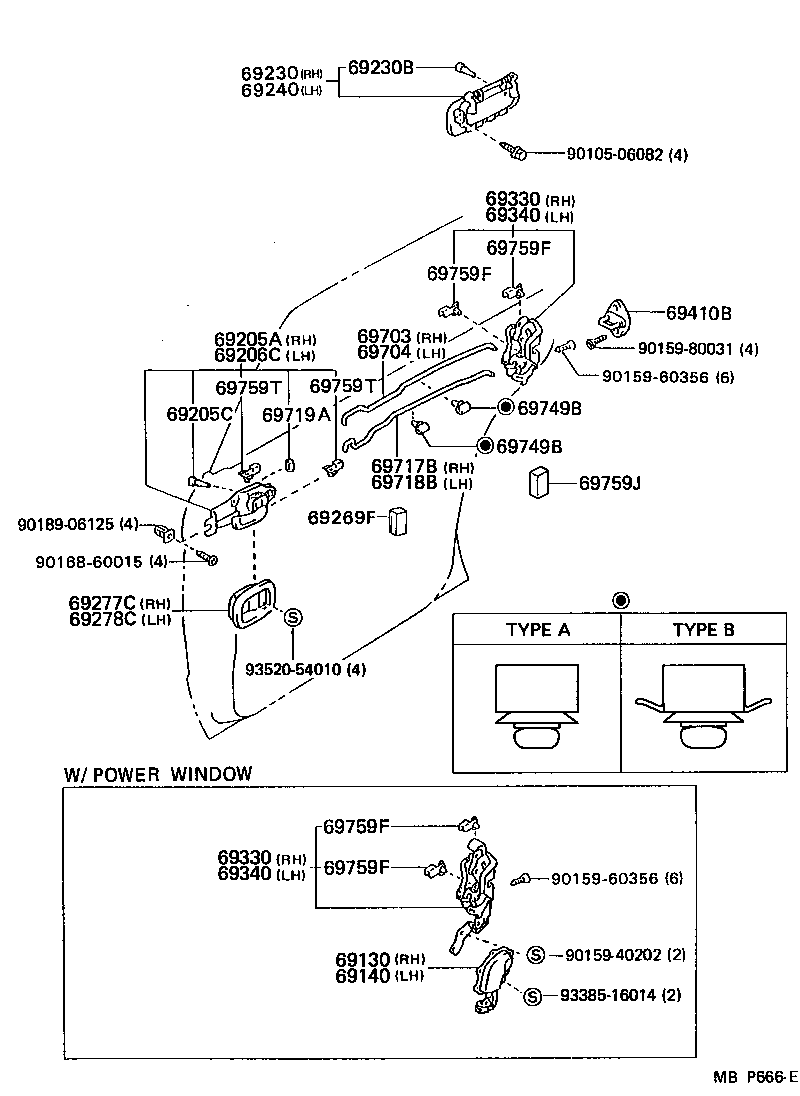

GX81-BTMQF (1988)
Toyota Chaser
(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-22040 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-22040 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-2204004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 69205-2206003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-2205006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69205-2204006 |
GX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69205-2205002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69205-2204002 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69205-2205003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-2206006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69205-2204006 |
GX81,LX80,MX83,SX80..(AVT,AVTG,GT,SXL,XG,XL)..(CI,DSL,HTWC,TD,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 69205-2206002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
GX81,JZX81,LX80,MX83,SX80,YX80 OD=8.5 |
2 | ||
| 90541-04018 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 90541-04018 |
GX81,LX80,SX80,YX80 |
2 | ||
| 90541-04020 |
GX81,JZX81,LX80,MX83,SX80,YX80 外径=12 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-2205002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69206-2205003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-2206006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69206-2206003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-2205006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69206-2204004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 69206-2206002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69206-2204002 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69206-2204006 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-2209013 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,GREENISH SILVER M.,174 |
1 | ||
| 69230-2209008 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,WHITE PEARL MICA,22K |
1 | ||
| 69230-2209003 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,GRAY MICA M.,170 |
1 | ||
| 69230-2209023 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,DARK BLUEISH GRAY,183 |
1 | ||
| 69230-2209004 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,BLUE MICA,8E3 |
1 | ||
| 69230-22080 |
GX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL |
1 | ||
| 69230-2209018 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,SUPER WHITE 4,050 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-2209003 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,GRAY MICA M.,170 |
1 | ||
| 69240-2209018 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,SUPER WHITE 4,050 |
1 | ||
| 69240-2209023 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,DARK BLUEISH GRAY,183 |
1 | ||
| 69240-2209008 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,WHITE PEARL MICA,22K |
1 | ||
| 69240-2209004 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,BLUE MICA,8E3 |
1 | ||
| 69240-22080 |
GX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL |
1 | ||
| 69240-2209013 |
GX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,GREENISH SILVER M.,174 |
1 | ||
| 69269F - SEAL, REAR DOOR INSIDE HANDLE | ||||
| 69269-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69297-2203004 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG DARK BLUE,TRIM8# |
1 | ||
| 69297-2205002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69297-2205003 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG MEDIUM GRAY,TRIM1# |
1 | ||
| 69297-2203006 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG SABLE,TRIM4# |
1 | ||
| 69297-2203002 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69297-2205006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG SABLE,TRIM4# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69298-2203006 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG SABLE,TRIM4# |
1 | ||
| 69298-2203002 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69298-2203004 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG DARK BLUE,TRIM8# |
1 | ||
| 69298-2205003 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG MEDIUM GRAY,TRIM1# |
1 | ||
| 69298-2205006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG SABLE,TRIM4# |
1 | ||
| 69298-2205002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22320 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69330-22321 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22320 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69330-22321 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22331 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69340-22330 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22331 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69340-22330 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69737-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69737-22070 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69738-22060 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69738-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69713-22060 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-22060 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69714-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69719A - CUSHION, DOOR LOCK CONTROL | ||||
| 69719-22010 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20030 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 69749-20030 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ A |
2 | ||
| 69749-50010 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ B |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20030 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 69749-20030 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ A |
2 | ||
| 69749-50010 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ B |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,JZX81,LX80,MX83,SX80,YX80 GRAY |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,JZX81,LX80,MX83,SX80,YX80 GRAY |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,JZX81,LX80,MX83,SX80,YX80 GRAY |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,JZX81,LX80,MX83,SX80,YX80 GRAY |
2 | ||
| 69759J - SILENCER, DOOR LOCK LINK | ||||
| 69759-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-14050 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
2 | ||
| 69759-24070 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-14050 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
2 | ||
| 69759-24070 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90159-40202 | ||||
| 90159-60356 | ||||
| 90159-80031 | ||||
| 90168-60015 | ||||
| 90189-06125 | ||||
| 93385-16014 | ||||
| 93520-54010 | ||||
