GX81-BTMQF (1988)
Toyota Chaser
Production
Aug 1988
-
Oct 1992
Engine
1GGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )GX81,JZX81,MX83
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-22120 |
GX81,MX83 |
2 | ||
| 42311-22120 |
GX81,JZX81,MX83 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-63001 |
GX81,JZX81,MX83 |
2 | ||
| 90311-63001 |
GX81,MX83 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-43005 |
GX81,JZX81,MX83 |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90521-85002 |
GX81,JZX81,MX83 |
2 | ||
| 90521-85002 |
GX81,MX83 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90311-57001 |
GX81,MX83 |
2 | ||
| 90311-57001 |
GX81,JZX81,MX83 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-24007 |
GX81,JZX81,MX83 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-22010 |
GX81,JZX81,MX83 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-22090 |
GX81..SPC,TWC |
2 | ||
| 42431-22090 |
GX81..SPC,TWC,TWT |
2 | ||
| 42431-22120 |
GX81..TWC ｱﾘ(*66) |
2 | ||
| 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 | ||||
| 42451-14010 |
GX81,JZX81,MX83 |
2 | ||
| 42451-14010 |
GX81,MX83 |
2 | ||
| 42452 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.2 | ||||
| 42452-14020 |
GX81..5F..TWC |
2 | ||
| 42452-14020 |
GX81..5F..TWC |
2 | ||
| 42452-28020 |
GX81..5F..TWC |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
GX81,JZX81,MX83 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02049 |
GX81,JZX81,MX83 |
10 | ||
| 90942-02049 |
GX81,MX83 |
10 | ||
| Common parts | ||||
| 90252-04004 | ||||

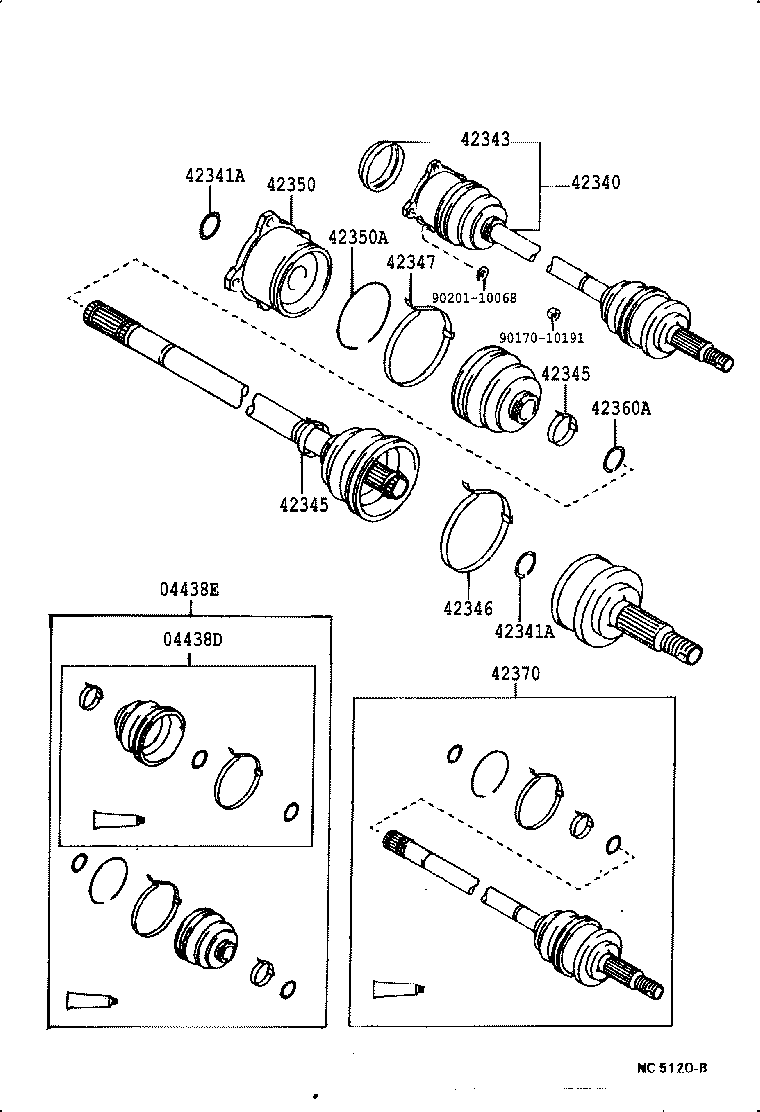

(8808- )5F..TWC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04437-22070 |
GX81..5F..TWC |
2 | ||
| 04438E - BOOT KIT, REAR DRIVE SHAFT OUTBOARD JOINT | ||||
| 04437-22080 |
GX81..5F..TWC |
2 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-22070 |
GX81..5F..TWC |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26004 |
GX81..5F..TWC 内側 |
2 | ||
| 90521-31002 |
GX81..5F..TWC 外側 |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26004 |
GX81..5F..TWC 内側 |
2 | ||
| 90521-31002 |
GX81..5F..TWC 外側 |
2 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-22010 |
GX81..5F..TWC |
2 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-14030 |
GX81..5F..TWC |
4 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-14030 |
GX81..5F..TWC |
4 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01107 |
GX81..5F..TWC |
2 | ||
| 42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42346-22010 |
GX81..5F..TWC |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22030 |
GX81..5F..TWC |
2 | ||
| 42350A - RING, HOLE SNAP | ||||
| 90521-79001 |
GX81..5F..TWC |
2 | ||
| 42360A - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT) | ||||
| 90520-26005 |
GX81..5F..TWC |
2 | ||
| 42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT | ||||
| 42370-29045 |
GX81..5F..TWC |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||
