GX81-BTMGK (1988)
Toyota Chaser

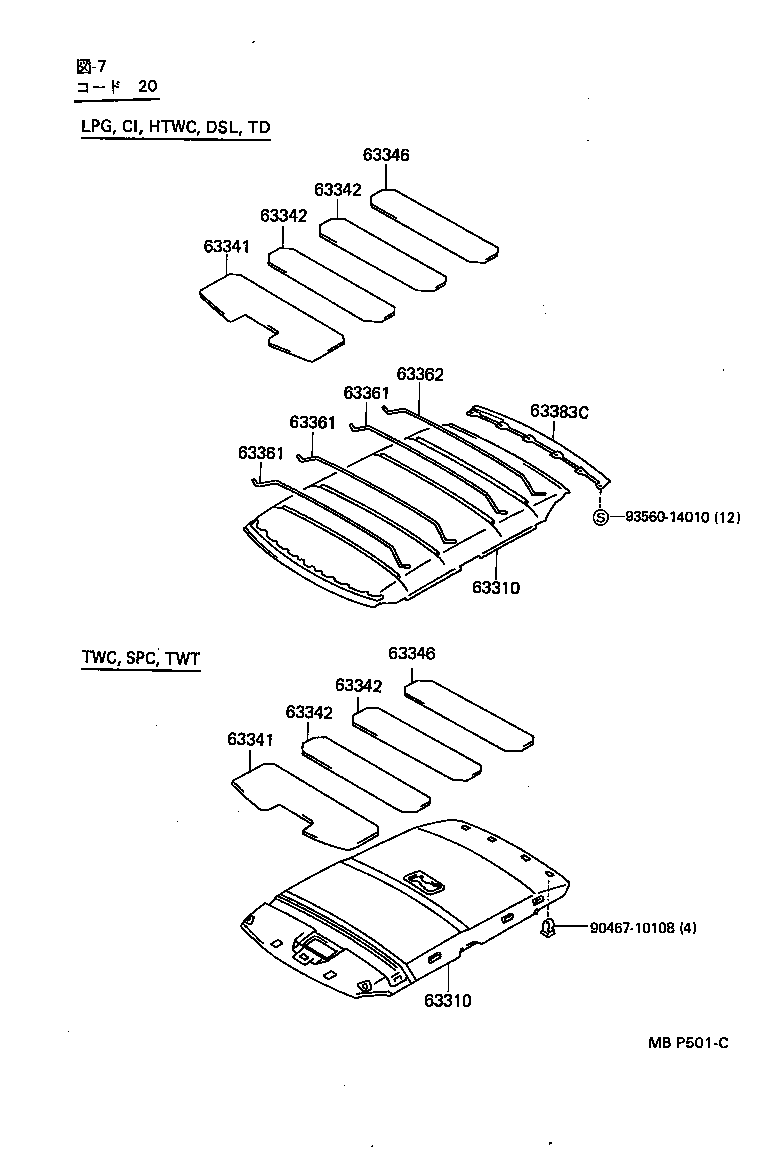

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-9162404 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 63310-9162902 |
GX81,MX83..SPC,TWC,TWT NEW MAROON,TRIM3# |
1 | ||
| 63310-9163504 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 63310-9162903 |
GX81,JZX81,MX83..TWC,TWT MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-9162406 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-9163506 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-9162912 |
GX81,JZX81,MX83..TWC,TWT NEW MAROON,TRIM3# |
1 | ||
| 63310-9162904 |
GX81,MX83..SPC,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 63310-9162906 |
GX81,MX83..SPC,TWC,TWT SABLE,TRIM4# |
1 | ||
| 63310-9163516 |
GX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD) SABLE,TRIM4# |
1 | ||
| 63310-9162916 |
GX81,JZX81,MX83..TWC,TWT SABLE,TRIM4# |
1 | ||
| 63310-9163502 |
GX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD) NEW MAROON,TRIM3# |
1 | ||
| 63310-9163503 |
GX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD) MEDIUM GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-9162404 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 63310-9162902 |
GX81,MX83..SPC,TWC,TWT NEW MAROON,TRIM3# |
1 | ||
| 63310-9163504 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 63310-9162903 |
GX81,JZX81,MX83..TWC,TWT MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-9162406 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-9163506 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-9162912 |
GX81,JZX81,MX83..TWC,TWT NEW MAROON,TRIM3# |
1 | ||
| 63310-9162904 |
GX81,MX83..SPC,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 63310-9162906 |
GX81,MX83..SPC,TWC,TWT SABLE,TRIM4# |
1 | ||
| 63310-9163516 |
GX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD) SABLE,TRIM4# |
1 | ||
| 63310-9162916 |
GX81,JZX81,MX83..TWC,TWT SABLE,TRIM4# |
1 | ||
| 63310-9163502 |
GX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD) NEW MAROON,TRIM3# |
1 | ||
| 63310-9163503 |
GX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD) MEDIUM GRAY,TRIM1# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-22150 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-22150 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22240 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD 長さ980mm |
3 | ||
| 63361-22250 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=982 |
3 | ||
| 63361-22260 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=984 |
3 | ||
| 63361-22270 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD 長さ=986 |
3 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22240 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD 長さ980mm |
3 | ||
| 63361-22250 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=982 |
3 | ||
| 63361-22260 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=984 |
3 | ||
| 63361-22270 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD 長さ=986 |
3 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22240 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD 長さ980mm |
3 | ||
| 63361-22250 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=982 |
3 | ||
| 63361-22260 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=984 |
3 | ||
| 63361-22270 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD 長さ=986 |
3 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63363-91605 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=982 |
1 | ||
| 63363-91606 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=985 |
1 | ||
| 63363-91614 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=979 |
1 | ||
| 63363-91607 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD L=988 |
1 | ||
| 63383C - RETAINER, ROOF HEADLINING TRIM, REAR | ||||
| 63383-91604 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD |
1 | ||
| Common parts | ||||
| 90467-10108 | ||||
| 93560-14010 | ||||

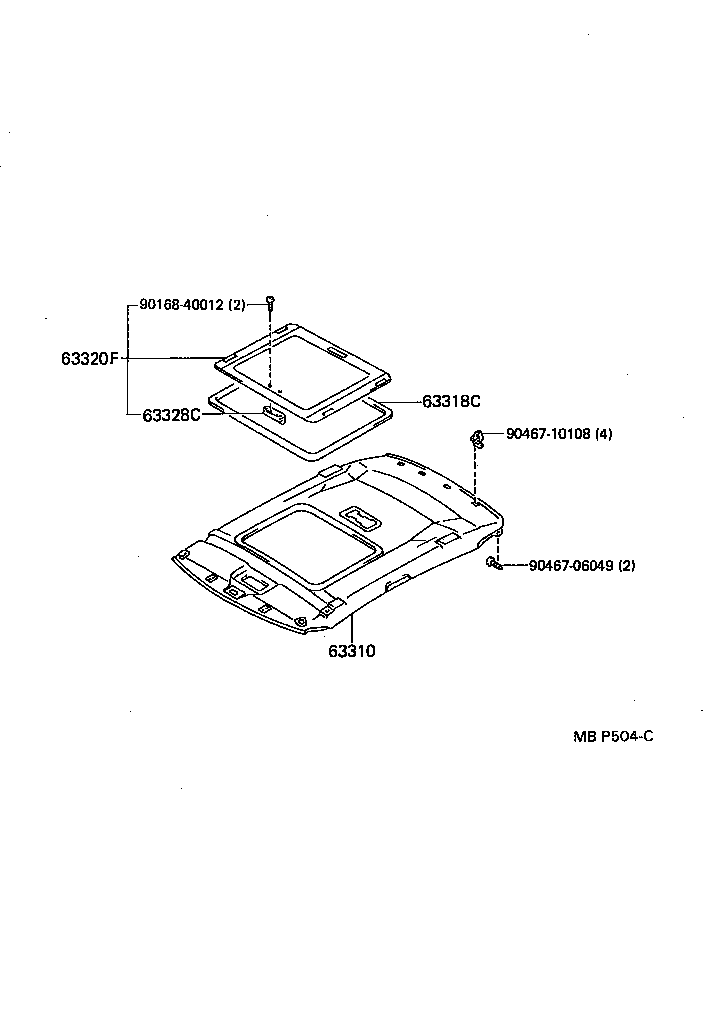

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-9162404 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 63310-9162902 |
GX81,MX83..SPC,TWC,TWT NEW MAROON,TRIM3# |
1 | ||
| 63310-9163504 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 63310-9162903 |
GX81,JZX81,MX83..TWC,TWT MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-9162406 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-9163506 |
GX81,LX80,SX80..(AVT,SXL,XG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-9162912 |
GX81,JZX81,MX83..TWC,TWT NEW MAROON,TRIM3# |
1 | ||
| 63310-9162904 |
GX81,MX83..SPC,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 63310-9162906 |
GX81,MX83..SPC,TWC,TWT SABLE,TRIM4# |
1 | ||
| 63310-9163516 |
GX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD) SABLE,TRIM4# |
1 | ||
| 63310-9162916 |
GX81,JZX81,MX83..TWC,TWT SABLE,TRIM4# |
1 | ||
| 63310-9163502 |
GX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD) NEW MAROON,TRIM3# |
1 | ||
| 63310-9163503 |
GX81,LX80,SX80..(AVT,SXL,XG)..(HTWC,TD) MEDIUM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90168-40012 | ||||
| 90467-06049 | ||||
| 90467-10108 | ||||
