GX81-BTMGK (1988)
Toyota Chaser
Production
Aug 1988
-
Oct 1992
Engine
1GFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )5F..AVT,KYO,SXL,XG,XL

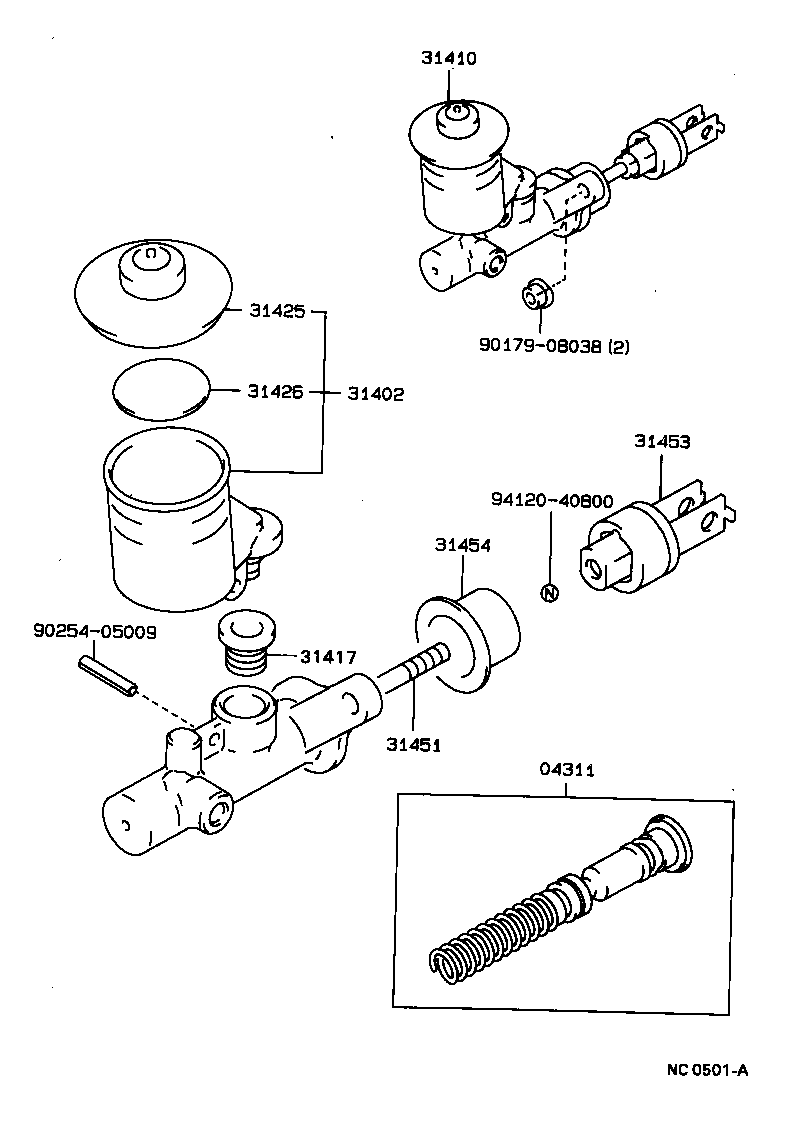

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12060 |
GX81,LX80,SX80,YX80..5F..(AVT,KYO,SXL,XG,XL) |
1 | ||
| 04311-12080 |
GX81,LX80,SX80,YX80..5F |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-22010 |
GX81,LX80,SX80,YX80..5F..(AVT,KYO,SXL,XG,XL) |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-22211 |
GX81,LX80,SX80,YX80..5F..(AVT,KYO,SXL,XG,XL) |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
GX81,LX80,SX80,YX80..5F..(AVT,KYO,SXL,XG,XL) |
1 | ||
| 31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
GX81,LX80,SX80,YX80..5F |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
GX81,LX80,SX80,YX80..5F |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-35080 |
GX81,LX80,SX80,YX80..5F..(AVT,KYO,SXL,XG,XL) |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-35020 |
GX81,LX80,SX80,YX80..5F..(AVT,KYO,SXL,XG,XL) |
1 | ||
| 31404-35021 |
GX81,LX80,SX80,YX80..5F..(AVT,KYO,SXL,XG,XL) |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-24010 |
GX81,LX80,SX80,YX80..5F |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90254-05009 | ||||
| 94120-40800 | ||||
