GX71-DTPZZ (1985)
Toyota Chaser

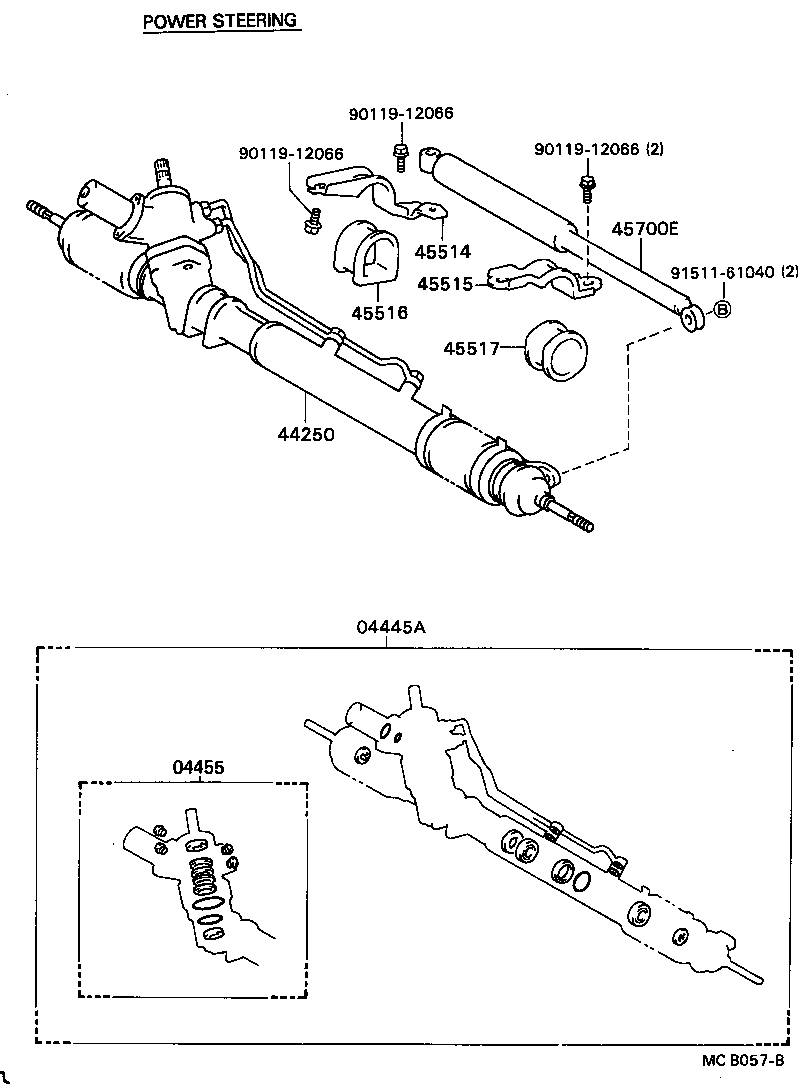

ILLUST NO. 1 OF 3(8408-8608)TWC,TWT ; (8608- )TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-22080 |
GX71..TWC,TWT |
1 | ||
| 04445-22090 |
GX71..TWT |
1 | ||
| 04445-22091 |
GX71..TWT |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-22060 |
GX71..TWT |
1 | ||
| 04455-22050 |
GX71..TWC,TWT |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-22160 |
GX71..TWT |
1 | ||
| 44250-22163 |
GX71..TWT |
1 | ||
| 44250-22120 |
GX71..TWT |
1 | ||
| 44250-22161 |
GX71..TWT |
1 | ||
| 44250-22162 |
GX71..TWT |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-22040 |
GX71..TWC,TWT |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-22030 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-22020 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| 45700E - DAMPER ASSY, STEERING | ||||
| 45700-22010 |
GX71..TWC,TWT |
1 | ||
| Common parts | ||||
| 90119-12066 | ||||
| 91511-61040 | ||||

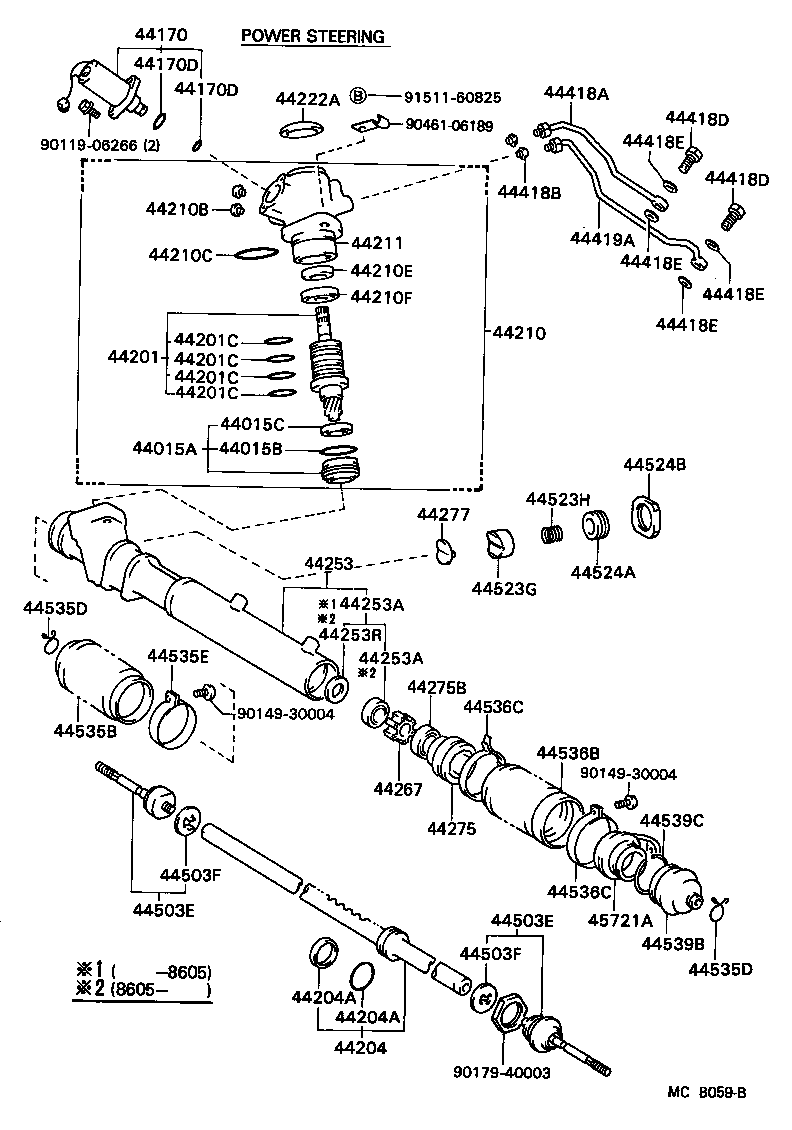

ILLUST NO. 2 OF 3(8408-8608)TWC,TWT ; (8608- )TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-20010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 44015-22010 |
GX71..TWT |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90301-53181 |
GX71..TWT |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90311-30008 |
GX71..TWT |
1 | ||
| 44170 - VALVE ASSY, SOLENOID(FOR POWER STEERING) | ||||
| 44170-22020 |
GX71..TWC,TWT |
1 | ||
| 44170D - RING, O(FOR POWER STEERING SOLENOID VALVE) | ||||
| 90301-06179 |
GX71..TWC,TWT ID=6 |
1 | ||
| 96711-19021 |
GX71..TWC,TWT ID=21 |
1 | ||
| 44170D - RING, O(FOR POWER STEERING SOLENOID VALVE) | ||||
| 90301-06179 |
GX71..TWC,TWT ID=6 |
1 | ||
| 96711-19021 |
GX71..TWC,TWT ID=21 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-22060 |
GX71..TWT |
1 | ||
| 44201-22010 |
GX71..TWT |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44204-22011 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
GX71,LX70,MX71,SX70,YX7# INNER |
1 | ||
| 90562-38002 |
GX71,LX70,MX71,SX70,YX7# OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
GX71,LX70,MX71,SX70,YX7# INNER |
1 | ||
| 90562-38002 |
GX71,LX70,MX71,SX70,YX7# OUTER |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-22030 |
GX71..TWT |
1 | ||
| 44210-22100 |
GX71..TWT |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-62005 |
GX71..TWT |
1 | ||
| 90301-51001 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-22030 |
GX71..TWC,TWT |
1 | ||
| 44211-22050 |
GX71..TWT |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-22030 |
GX71..TWC,TWT |
1 | ||
| 44203-22051 |
GX71..TWT |
1 | ||
| 44203-22050 |
GX71..TWT |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99129 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90310-25001 |
GX71,LX70,SX70,YX7# |
1 | ||
| 90310-25015 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99129 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90310-25001 |
GX71,LX70,SX70,YX7# |
1 | ||
| 90310-25015 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-26007 |
GX71,LX70,SX70,YX7# |
1 | ||
| 90560-26010 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-22010 |
GX71..TWC,TWT |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-25010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-22050 |
GX71..TWC,TWT |
1 | ||
| 44418-22070 |
GX71..TWT |
1 | ||
| 44418-22071 |
GX71..TWT |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
GX71,LX70,MX71,SX70,YX70 VALVE SIDE |
2 | ||
| 90410-04004 |
GX71..TWT |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
GX71..TWC,TWT |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
GX71..TWC,TWT |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX71..TWC,TWT |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX71..TWC,TWT |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX71..TWC,TWT |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX71..TWC,TWT |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-22070 |
GX71..TWT |
1 | ||
| 44419-22050 |
GX71..TWC,TWT |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29045 |
GX71..TWC,TWT RH |
1 | ||
| 45503-29055 |
GX71..TWC,TWT LH |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29045 |
GX71..TWC,TWT RH |
1 | ||
| 45503-29055 |
GX71..TWC,TWT LH |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-22050 |
GX71..TWC,TWT |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44535E - CLAMP(FOR POWER STEERING RACK BOOT NO.1) | ||||
| 90460-53002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-22060 |
GX71..TWC,TWT |
1 | ||
| 44536C - CLAMP(FOR POWER STEERING RACK BOOT NO.2) | ||||
| 90949-01179 |
GX71..TWC,TWT INNER |
1 | ||
| 90460-77001 |
GX71..TWC,TWT OUTER |
1 | ||
| 44536C - CLAMP(FOR POWER STEERING RACK BOOT NO.2) | ||||
| 90949-01179 |
GX71..TWC,TWT INNER |
1 | ||
| 90460-77001 |
GX71..TWC,TWT OUTER |
1 | ||
| 44539B - SEAL, RACK END DUST(FOR POWER STEERING) | ||||
| 45539-22010 |
GX71..TWC,TWT |
1 | ||
| 44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL) | ||||
| 90522-57001 |
GX71..TWC,TWT |
1 | ||
| 45721A - BRACKET, STEERING DAMPER, NO.2 | ||||
| 45721-22010 |
GX71..TWC,TWT |
1 | ||
| Common parts | ||||
| 90119-06266 | ||||
| 90149-30004 | ||||
| 90179-40003 | ||||
| 90461-06189 | ||||
| 91511-60825 | ||||

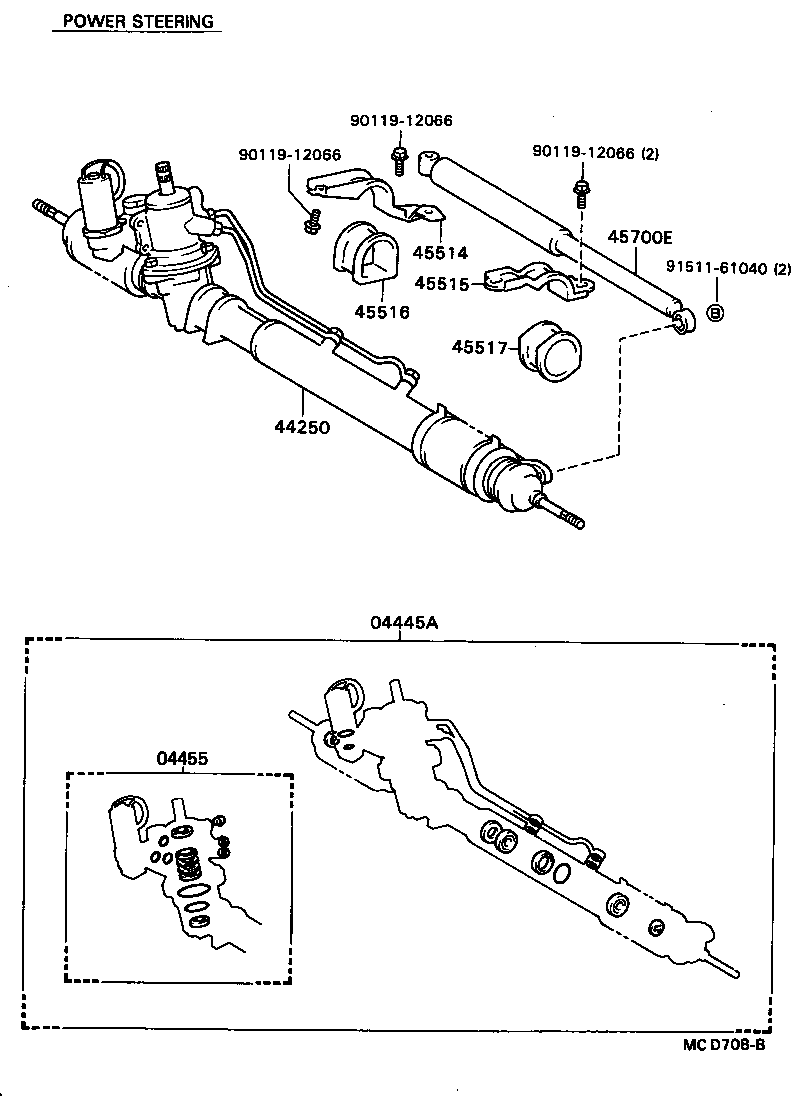

ILLUST NO. 1 OF 3(8608- )TWT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-22080 |
GX71..TWC,TWT |
1 | ||
| 04445-22090 |
GX71..TWT |
1 | ||
| 04445-22091 |
GX71..TWT |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-22060 |
GX71..TWT |
1 | ||
| 04455-22050 |
GX71..TWC,TWT |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-22160 |
GX71..TWT |
1 | ||
| 44250-22163 |
GX71..TWT |
1 | ||
| 44250-22120 |
GX71..TWT |
1 | ||
| 44250-22161 |
GX71..TWT |
1 | ||
| 44250-22162 |
GX71..TWT |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-22040 |
GX71..TWC,TWT |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-22030 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-22020 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| 45700E - DAMPER ASSY, STEERING | ||||
| 45700-22010 |
GX71..TWC,TWT |
1 | ||
| Common parts | ||||
| 90119-12066 | ||||
| 91511-61040 | ||||

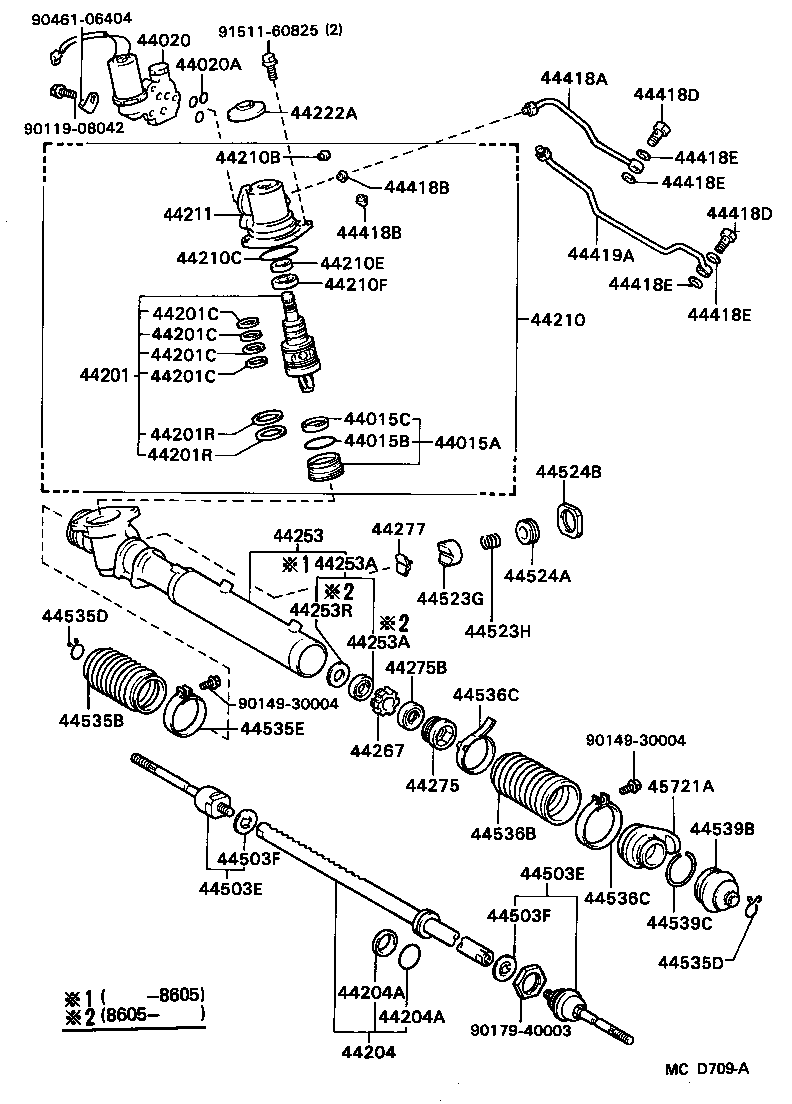

ILLUST NO. 2 OF 3(8608- )TWT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-20010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 44015-22010 |
GX71..TWT |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90301-53181 |
GX71..TWT |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90311-30008 |
GX71..TWT |
1 | ||
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-22010 |
GX71..TWT |
1 | ||
| 44020-22012 |
GX71..TWT |
1 | ||
| 44020-22011 |
GX71..TWT |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
GX71..TWT |
3 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-22060 |
GX71..TWT |
1 | ||
| 44201-22010 |
GX71..TWT |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-49002 |
GX71..TWT |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-49002 |
GX71..TWT |
2 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44204-22011 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
GX71,LX70,MX71,SX70,YX7# INNER |
1 | ||
| 90562-38002 |
GX71,LX70,MX71,SX70,YX7# OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
GX71,LX70,MX71,SX70,YX7# INNER |
1 | ||
| 90562-38002 |
GX71,LX70,MX71,SX70,YX7# OUTER |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-22030 |
GX71..TWT |
1 | ||
| 44210-22100 |
GX71..TWT |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-62005 |
GX71..TWT |
1 | ||
| 90301-51001 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-22030 |
GX71..TWC,TWT |
1 | ||
| 44211-22050 |
GX71..TWT |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-22030 |
GX71..TWC,TWT |
1 | ||
| 44203-22051 |
GX71..TWT |
1 | ||
| 44203-22050 |
GX71..TWT |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99129 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90310-25001 |
GX71,LX70,SX70,YX7# |
1 | ||
| 90310-25015 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99129 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90310-25001 |
GX71,LX70,SX70,YX7# |
1 | ||
| 90310-25015 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-26007 |
GX71,LX70,SX70,YX7# |
1 | ||
| 90560-26010 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-22010 |
GX71..TWC,TWT |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-25010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-22050 |
GX71..TWC,TWT |
1 | ||
| 44418-22070 |
GX71..TWT |
1 | ||
| 44418-22071 |
GX71..TWT |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
GX71,LX70,MX71,SX70,YX70 VALVE SIDE |
2 | ||
| 90410-04004 |
GX71..TWT |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
GX71,LX70,MX71,SX70,YX70 VALVE SIDE |
2 | ||
| 90410-04004 |
GX71..TWT |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
GX71..TWC,TWT |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
GX71..TWC,TWT |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX71..TWC,TWT |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX71..TWC,TWT |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX71..TWC,TWT |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX71..TWC,TWT |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-22070 |
GX71..TWT |
1 | ||
| 44419-22050 |
GX71..TWC,TWT |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29045 |
GX71..TWC,TWT RH |
1 | ||
| 45503-29055 |
GX71..TWC,TWT LH |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29045 |
GX71..TWC,TWT RH |
1 | ||
| 45503-29055 |
GX71..TWC,TWT LH |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-22050 |
GX71..TWC,TWT |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44535E - CLAMP(FOR POWER STEERING RACK BOOT NO.1) | ||||
| 90460-53002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-22060 |
GX71..TWC,TWT |
1 | ||
| 44536C - CLAMP(FOR POWER STEERING RACK BOOT NO.2) | ||||
| 90949-01179 |
GX71..TWC,TWT INNER |
1 | ||
| 90460-77001 |
GX71..TWC,TWT OUTER |
1 | ||
| 44536C - CLAMP(FOR POWER STEERING RACK BOOT NO.2) | ||||
| 90949-01179 |
GX71..TWC,TWT INNER |
1 | ||
| 90460-77001 |
GX71..TWC,TWT OUTER |
1 | ||
| 44539B - SEAL, RACK END DUST(FOR POWER STEERING) | ||||
| 45539-22010 |
GX71..TWC,TWT |
1 | ||
| 44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL) | ||||
| 90522-57001 |
GX71..TWC,TWT |
1 | ||
| 45721A - BRACKET, STEERING DAMPER, NO.2 | ||||
| 45721-22010 |
GX71..TWC,TWT |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90149-30004 | ||||
| 90179-40003 | ||||
| 90461-06404 | ||||
| 91511-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
