GX71-DTPZZ (1985)

Toyota Chaser

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )1GGTEU

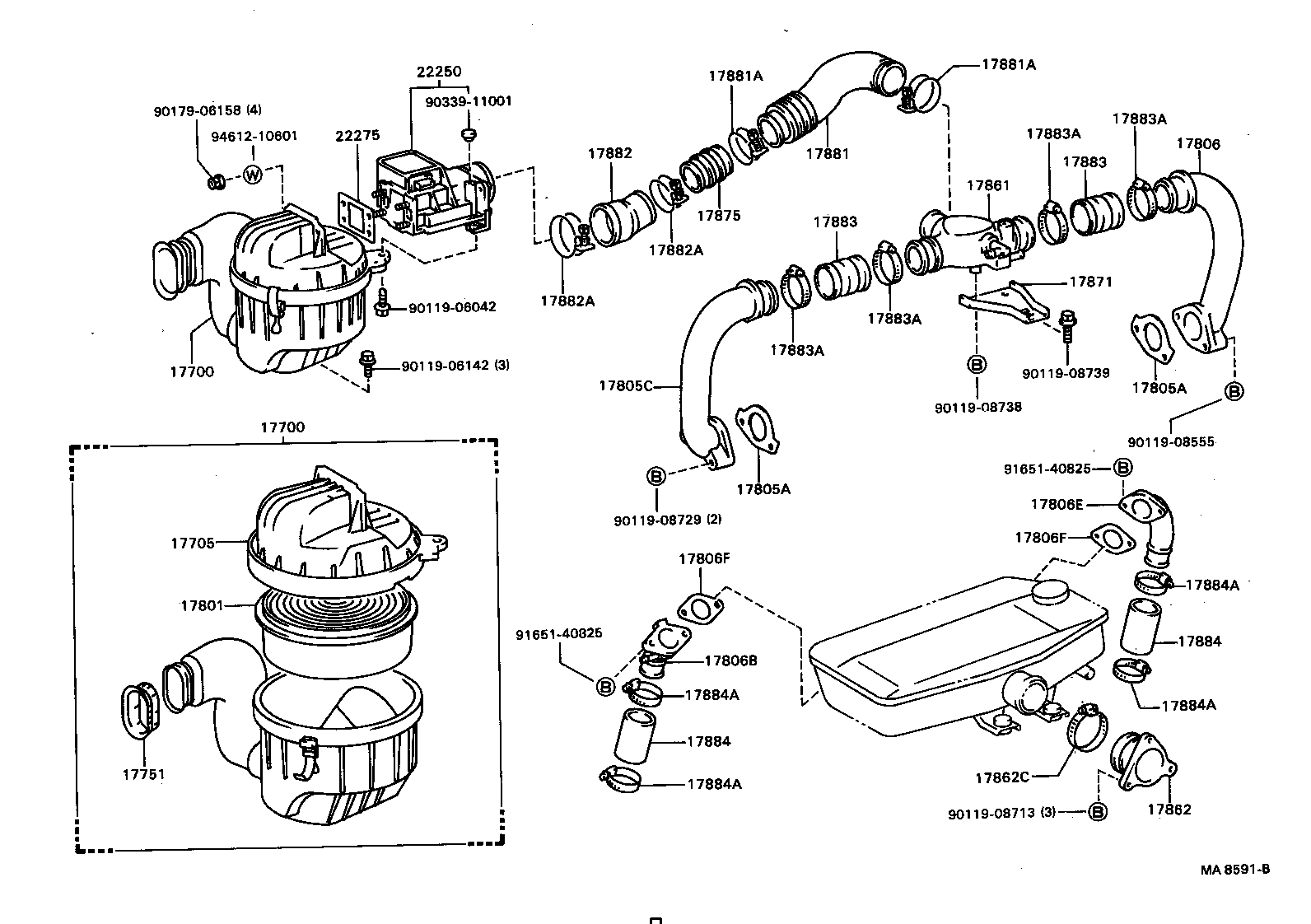

Click highlighted areas on diagram

diagram 17700 17700 17705 17751 17801 17805A 17805A 17805C 17806 17806B 17806E 17806F 17806F 17861 17862 17862C 17871 17875 17881 17881A 17881A 17882 17882A 17882A 17883 17883 17883A 17883A 17883A 17883A 17884 17884 17884A 17884A 17884A 17884A 22250 22275 9011906042 9011906142 9011908555 9011908713 9011908729 9011908738 9011908739 9017906158 9033911001 9165140825 9165140825 9461210601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-70031

1GEU,1GG#..GX71

 1
17700-70030

1GEU,1GG#..GX71

 1
17700 - CLEANER ASSY, AIR
17700-70031

1GEU,1GG#..GX71

 1
17700-70030

1GEU,1GG#..GX71

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-70030

1GEU,1GG#..GX71

 1
17751 - INLET, AIR CLEANER, NO.1
17751-70010

1GEU,1GG#..GX71

 1
17751-70011

1GEU,1GG#..GX71

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70020

1GEU,1GG#..GX71

 1
17805A - GASKET & WASHER, SEAL
17376-88340

1GGTEU..GX71

 2
17805A - GASKET & WASHER, SEAL
17376-88340

1GGTEU..GX71

 2
17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1
17361-88340

1GGTEU..GX71

 1
17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2
17362-88340

1GGTEU..GX71

 1
17806B - PIPE SUB-ASSY, AIR CLEANER, NO.3
17363-88340

1GGTEU..GX71

 1
17806E - PIPE SUB-ASSY, AIR CLEANER, NO.4
17364-88340

1GGTEU..GX71

 1
17806F - GASKET, AIR CLEANER PIPE
17377-88340

1GGTEU..GX71

 2
17806F - GASKET, AIR CLEANER PIPE
17377-88340

1GGTEU..GX71

 2
17861 - CONNECTOR, INTAKE AIR
17861-88340

1GGTEU..GX71

 1
17862 - CONNECTOR, INTAKE AIR, NO.2
17862-88340

1GGTEU..GX71

 1
17862C - CLAMP(FOR INTAKE AIR CONNECTOR NO.2)
90460-75002

1GGTEU..GX71

 1
17871 - STAY, AIR CONNECTOR
17871-88340

1GGTEU..GX71

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-70080

1GGTEU..GX71

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-70131

1GGTEU..GX71

 1
17881-70130

1GGTEU..GX71

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1GGTEU..GX71

ENGINE SIDE

 1
96111-10880

1GGTEU..GX71

PIPE SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1GGTEU..GX71

ENGINE SIDE

 1
96111-10880

1GGTEU..GX71

PIPE SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-70090

1GGTEU..GX71

 1
17882-70091

1GGTEU..GX71

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900

1GG#..GX71

AIR CLEANER SIDE

 1
96111-10880

1GGTEU..GX71

PIPE SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900

1GG#..GX71

AIR CLEANER SIDE

 1
96111-10880

1GGTEU..GX71

PIPE SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17341-88340

1GGTEU..GX71

 2
17883 - HOSE, AIR CLEANER, NO.3
17341-88340

1GGTEU..GX71

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-65004

1GGTEU..GX71

 4
90460-65007

1GGTEU..GX71

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-65004

1GGTEU..GX71

 4
90460-65007

1GGTEU..GX71

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-65004

1GGTEU..GX71

 4
90460-65007

1GGTEU..GX71

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-65004

1GGTEU..GX71

 4
90460-65007

1GGTEU..GX71

 1
17884 - HOSE, AIR CLEANER, NO.4
17342-88340

1GGTEU..GX71

 2
17884 - HOSE, AIR CLEANER, NO.4
17342-88340

1GGTEU..GX71

 2
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
90460-47001

1GGTEU..GX71

 4
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
90460-47001

1GGTEU..GX71

 4
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
90460-47001

1GGTEU..GX71

 4
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
90460-47001

1GGTEU..GX71

 4
22250 - METER ASSY, INTAKE AIR FLOW
22250-70150

1GGTEU..GX71

 1
22275 - GASKET, AIR FLOW METER
22275-43010

1GEU,1GG#..GX71

 1
Common parts
90119-06042
90119-06142
90119-08555
90119-08713
90119-08729
90119-08738
90119-08739
90179-06158
90339-11001
91651-40825
94612-10601
