GX71-DTPGE (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

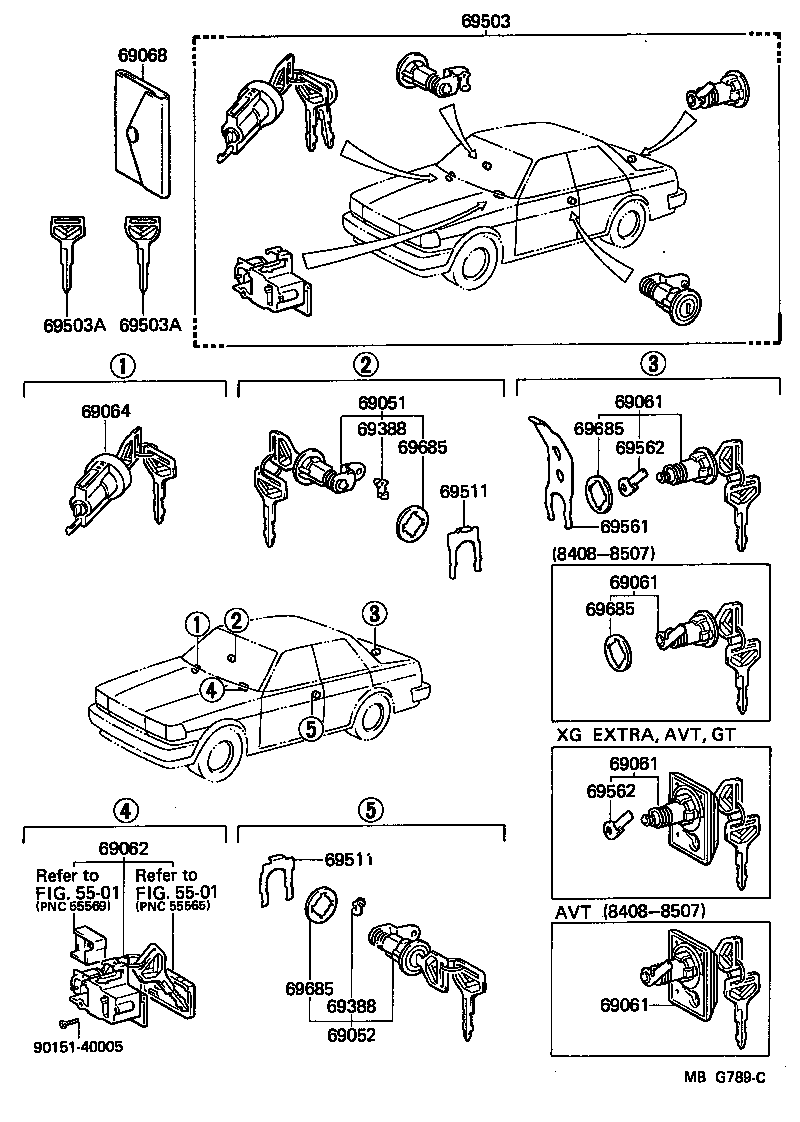

Click highlighted areas on diagram

diagram 5501 5501 69051 69052 69061 69061 69061 69061 69062 69064 69068 69388 69388 69503 69503A 69503A 69511 69511 69561 69562 69562 69685 69685 69685 69685 9015140005
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-22141

GX71..AVT,GT

 1
69051-22140

GX71,MX71..AVT,GT

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-22121

GX71,LX70,SX70,YX72

 1
69052-22120

GX71,LX70,MX71,SX70,YX70

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-91608

GX71,MX71..AVT,GT

 1
69055-91607

GX71,MX71..AVT

 1
69055-91609

GX71..AVT,GT

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-91608

GX71,MX71..AVT,GT

 1
69055-91607

GX71,MX71..AVT

 1
69055-91609

GX71..AVT,GT

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-91608

GX71,MX71..AVT,GT

 1
69055-91607

GX71,MX71..AVT

 1
69055-91609

GX71..AVT,GT

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-91608

GX71,MX71..AVT,GT

 1
69055-91607

GX71,MX71..AVT

 1
69055-91609

GX71..AVT,GT

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-2202005

GX71,MX71..AVT,GT

BEIGE,BEIGE,TRIM4#

 1
69056-2202003

GX71,MX71..AVT,GT

GRAY,COOL GRAY,TRIM1#

 1
69056-2202015

GX71,LX70,SX70..AVT,GT,SXL,XG,XL

BEIGE,DARK BEIGE,TRIM4#

 1
69056-2202012

GX71,LX70,SX70..AVT,GT,SXL,XG

MAROON,MAROON,TRIM3#

 1
69056-2202004

GX71,LX70,SX70,YX72

BLUE,DARK BLUE,TRIM8#

 1
69056-2202002

GX71,MX71..AVT,GT

MAROON,MAROON,TRIM3#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-22120

GX71..AVT,GT

 1
69057-22060

GX71,MX71..AVT,GT

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

GX71,LX70,MX71,SX70,YX7#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

GX71,LX70,MX71,SX70,YX7#

LH DOOR

 1
69759-20090

GX71,LX70,MX71,SX70,YX7#

LH

 1
69759-20080

GX71,LX70,MX71,SX70,YX7#

RH

 1
69759-20080

GX71,LX70,MX71,SX70,YX7#

RH DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

GX71,LX70,MX71,SX70,YX7#

LH DOOR

 1
69759-20090

GX71,LX70,MX71,SX70,YX7#

LH

 1
69759-20080

GX71,LX70,MX71,SX70,YX7#

RH

 1
69759-20080

GX71,LX70,MX71,SX70,YX7#

RH DOOR

 1
69503 - CYLINDER SET, LOCK
69005-91617

GX71,MX71..AVT

 1
69005-91618

GX71..AVT,GT

 1
69005-91616

GX71,MX71..AVT,GT

 1
69005-91619

GX71..AVT,GT

 1
69503A - KEY, BLANK
90999-00099

GX71,LX70,MX71,SX70,YX7#

ﾏｽﾀｰｷｰ,MASTER

 2
90999-00100

GX71,LX70,MX71,SX70,YX7#

ｻﾌﾞｷｰ,SUB

 1
90999-00118

GX71,LX70,SX70,YX72

ﾏｽﾀｰｷｰ,*68付き,MASTER,W/PROTECTOR

 1
69503A - KEY, BLANK
90999-00099

GX71,LX70,MX71,SX70,YX7#

ﾏｽﾀｰｷｰ,MASTER

 2
90999-00100

GX71,LX70,MX71,SX70,YX7#

ｻﾌﾞｷｰ,SUB

 1
90999-00118

GX71,LX70,SX70,YX72

ﾏｽﾀｰｷｰ,*68付き,MASTER,W/PROTECTOR

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

GX71,LX70,MX71,SX70,YX7#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

GX71,LX70,MX71,SX70,YX7#

 2
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-91601

GX71,LX70,MX71,SX70,YX7#

 1
69562 - LEVER, LUGGAGE COMPARTMENT DOOR LOCK
69562-22010

GX71,MX71..AVT,GT

 1
69562 - LEVER, LUGGAGE COMPARTMENT DOOR LOCK
69562-22010

GX71,MX71..AVT,GT

 1
69685 - PAD, LOCK CYLINDER
69513-32010

GX71,LX70,MX71,SX70,YX7#

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69513-32010

GX71,LX70,MX71,SX70,YX7#

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69513-32010

GX71,LX70,MX71,SX70,YX7#

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69513-32010

GX71,LX70,MX71,SX70,YX7#

FR DOOR

 2
Common parts
90151-40005
Linked diagrams
5501
