GX71-DTMZZ (1985)

Toyota Chaser

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

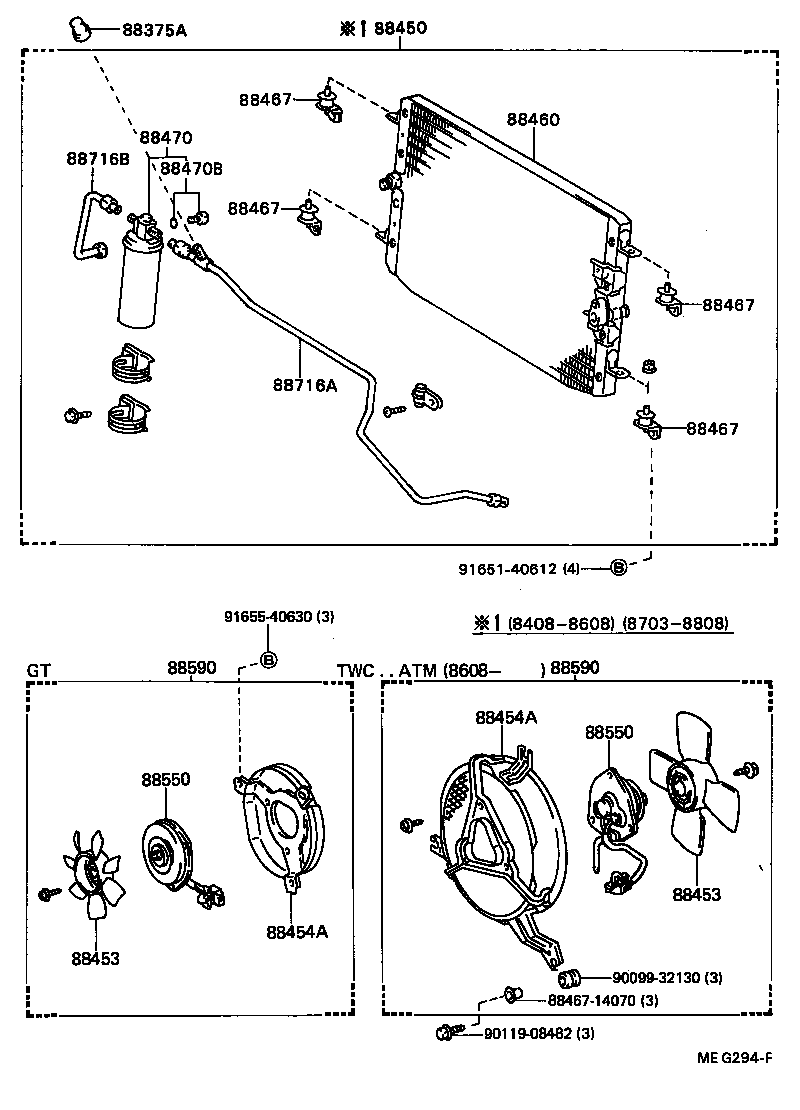

ILLUST NO. 1 OF 2(8510- )TWT ; (8608- )AVT

Click highlighted areas on diagram

diagram 88375A 88450 88453 88453 88454A 88454A 88460 88467 88467 88467 88467 8846714070 88470 88470B 88550 88550 88590 88590 88716A 88716B 9009932130 9011908482 9165140612 9165540630
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010

GX71..AVT,GT

 1
88375-30270

GX71,MX71..AVT,GT

 1
88450 - CONDENSER ASSY, W/RECEIVER
88460-22292

GX71..TWT

 1
88460-22294

GX71..AVT,GT

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040

GX71..TWT

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040

GX71..TWT

 1
88454A - SHROUD, FAN
88454-22040

GX71..TWT

 1
88454A - SHROUD, FAN
88454-22040

GX71..TWT

 1
88460 - CONDENSER ASSY, COOLER
88460-22301

GX71..TWT

 1
88460-22270

GX71,MX71,SX70

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GX71,LX70,MX71,SX70,YX7#

 1
88470B - BOLT, FUSE
88475-12020

GX71,LX70,MX71,SX70,YX7#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-22030

GX71..TWT

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-22030

GX71..TWT

 1
88590 - BLOWER ASSY, W/SHROUD
88590-22020

GX71..TWT

 1
88590 - BLOWER ASSY, W/SHROUD
88590-22020

GX71..TWT

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22480

GX71..5F..TWT

GT-S PACKAGE

 1
88716-22631

GX71..AVT,GT

 1
88716-22630

GX71..TWT

 1
88716-22632

GX71..AVT,GT

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22490

GX71..TWT

 1
88716-22491

GX71..AVT,GT

 1
Common parts
88467-14070
90099-32130
90119-08482
91651-40612
91655-40630

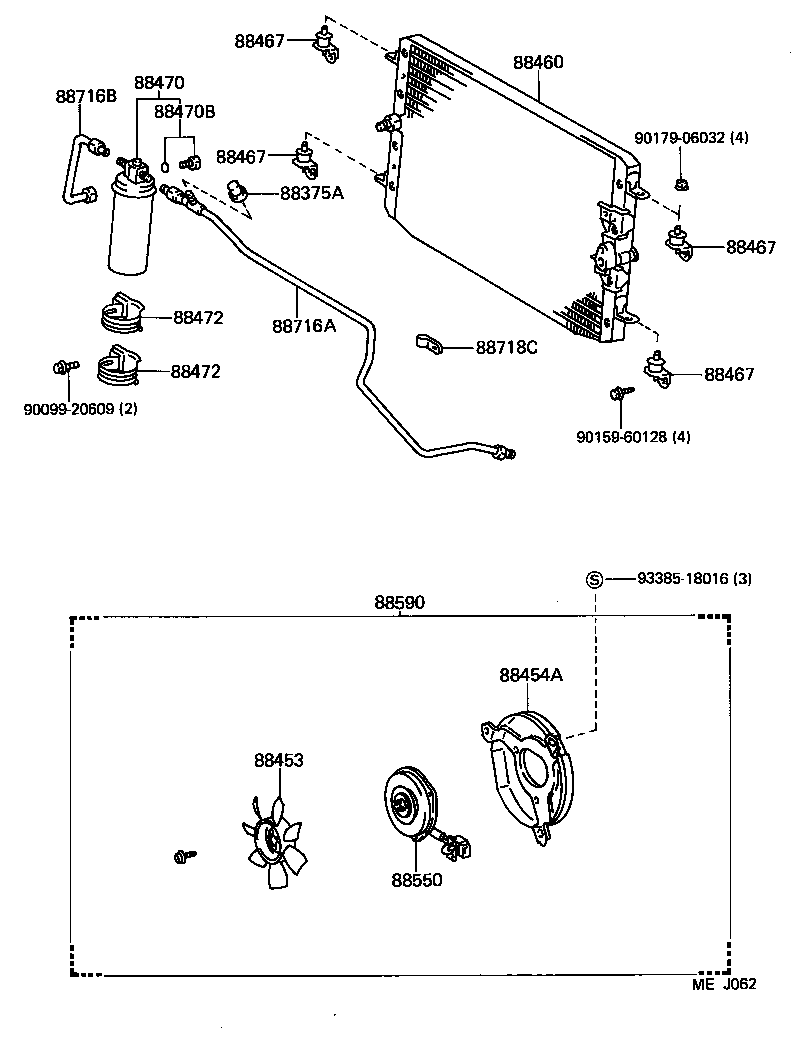

ILLUST NO. 1 OF 2(8510-8608)TWT

Click highlighted areas on diagram

GT-S PACKAGE

diagram 88375A 88453 88454A 88460 88467 88467 88467 88467 88470 88470B 88472 88472 88550 88590 88716A 88716B 88718C 9009920609 9015960128 9017906032 9338518016
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010

GX71..AVT,GT

 1
88375-30270

GX71,MX71..AVT,GT

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040

GX71..TWT

 1
88454A - SHROUD, FAN
88454-22040

GX71..TWT

 1
88460 - CONDENSER ASSY, COOLER
88460-22301

GX71..TWT

 1
88460-22270

GX71,MX71,SX70

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GX71,LX70,MX71,SX70,YX7#

 1
88470B - BOLT, FUSE
88475-12020

GX71,LX70,MX71,SX70,YX7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX71,LX70,MX71,SX70,YX7#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX71,LX70,MX71,SX70,YX7#

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-22030

GX71..TWT

 1
88590 - BLOWER ASSY, W/SHROUD
88590-22020

GX71..TWT

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22480

GX71..5F..TWT

GT-S PACKAGE

 1
88716-22631

GX71..AVT,GT

 1
88716-22630

GX71..TWT

 1
88716-22632

GX71..AVT,GT

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22490

GX71..TWT

 1
88716-22491

GX71..AVT,GT

 1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-12280

GX71,LX70..GT,SXL,XG,XL

 1
88718-12280

GX71..5F..TWT

GT-S PACKAGE

 2
88718-22630

GX71..AVT,GT

 1
Common parts
90099-20609
90159-60128
90179-06032
93385-18016

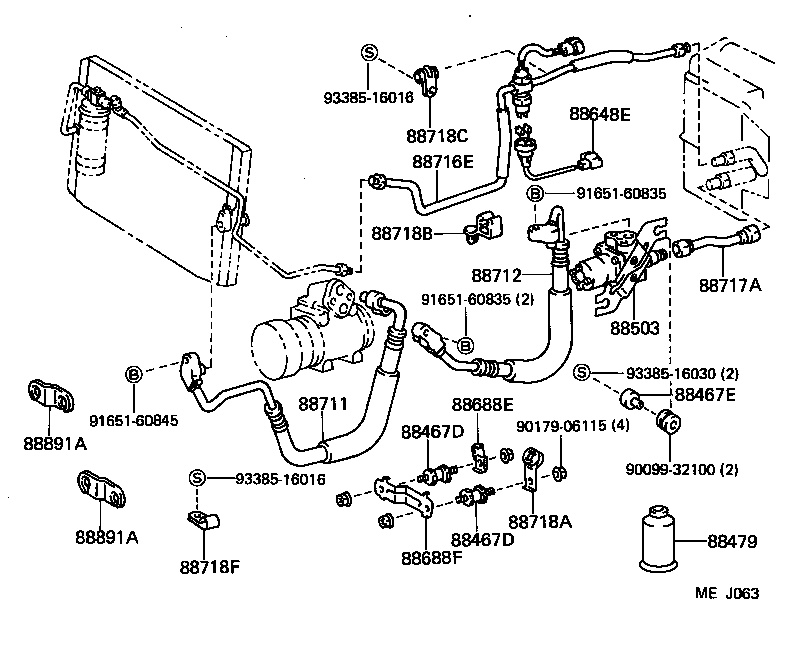

ILLUST NO. 2 OF 2(8510-8608)TWT

Click highlighted areas on diagram

GT-S PACKAGE

diagram 88467D 88467D 88467E 88479 88503 88648E 88688E 88688F 88711 88712 88716E 88717A 88718A 88718B 88718C 88718F 88891A 88891A 9009932100 9017906115 9165160835 9165160835 9165160845 9338516016 9338516016 9338516030
Part # Description Qty Price
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

GX71..5F..TWT

GT-S PACKAGE

 2
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

GX71..5F..TWT

GT-S PACKAGE

 2
88467E - CUSHION, PRESSURE REGULATOR
88467-14050

GX71..5F..TWT

GT-S PACKAGE

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

GX71,LX70,MX71,SX70,YX7#

400G

 2
88503 - REGULATOR ASSY, PRESSURE
88503-22160

GX71..5F..TWT

GT-S PACKAGE

 1
88648E - WIRING, COOLER
88648-22100

GX71..5F..TWT

GT-S PACKAGE

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-22220

GX71..5F..TWT

GT-S PACKAGE

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22190

GX71..5F..TWT

GT-S PACKAGE

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22381

GX71..5F..TWT

GT-S PACKAGE

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22450

GX71,MX71

 1
88712-22571

GX71..TWT

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-22600

GX71..TWT

 1
88710-22170

GX71..5F..TWT

GT-S PACKAGE

 1
88716-22601

GX71..TWT

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22210

GX71,MX71,SX70

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-22730

GX71..5F..TWT

GT-S PACKAGE

 1
88718-22570

GX71..TWT

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-22650

GX71,LX70,MX71,SX70,YX7#

 1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-12280

GX71,LX70..GT,SXL,XG,XL

 1
88718-12280

GX71..5F..TWT

GT-S PACKAGE

 2
88718-22630

GX71..AVT,GT

 1
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-14450

GX71..5F..TWT

GT-S PACKAGE

 1
88718-22670

GX71,MX71..AVT,GT

 1
88891A - PACKING A (FOR COOLER)
88892-22110

GX71,LX70,MX71,SX70,YX7#

 2
88891A - PACKING A (FOR COOLER)
88892-22110

GX71,LX70,MX71,SX70,YX7#

 2
Common parts
90099-32100
90179-06115
91651-60835
91651-60845
93385-16016
93385-16030
