GX71-DTMZZ (1985)

Toyota Chaser

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

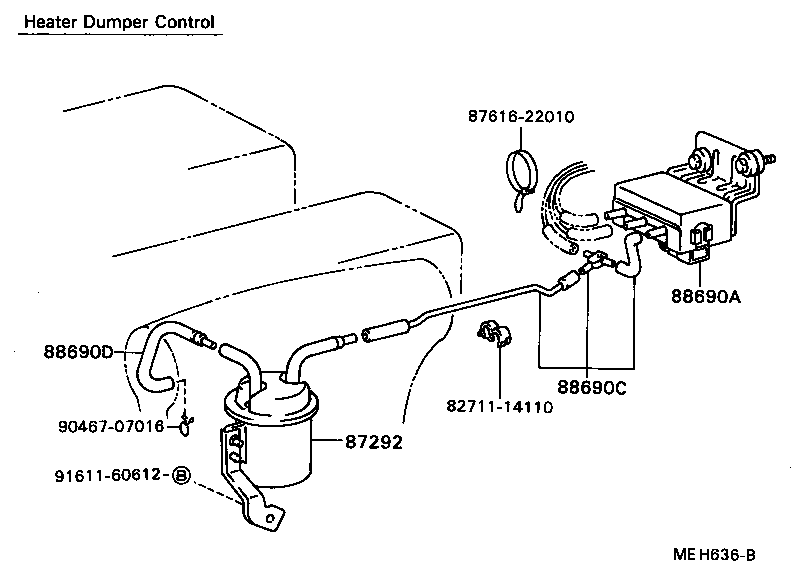

ILLUST NO. 2 OF 2(8510- )TWT

Click highlighted areas on diagram

diagram 8271114110 87292 8761622010 88690A 88690C 88690D 9046707016 9161160612
Part # Description Qty Price
87292 - TANK, VACUUM
87292-22040

GX71,MX71..AVT,GT

 1
88690A - VALVE ASSY, COMBINATION
88690-22320

GX71,MX71,SX70..AVT,GT,SXL,XG

W/*AAC

 1
88690-22321

GX71..AVT,GT

 1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
88807-22200

GX71..TWT

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
88807-22210

GX71..TWT

 1
Common parts
82711-14110
87616-22010
90467-07016
91611-60612
