GX71-DTMZZ (1985)

Toyota Chaser

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

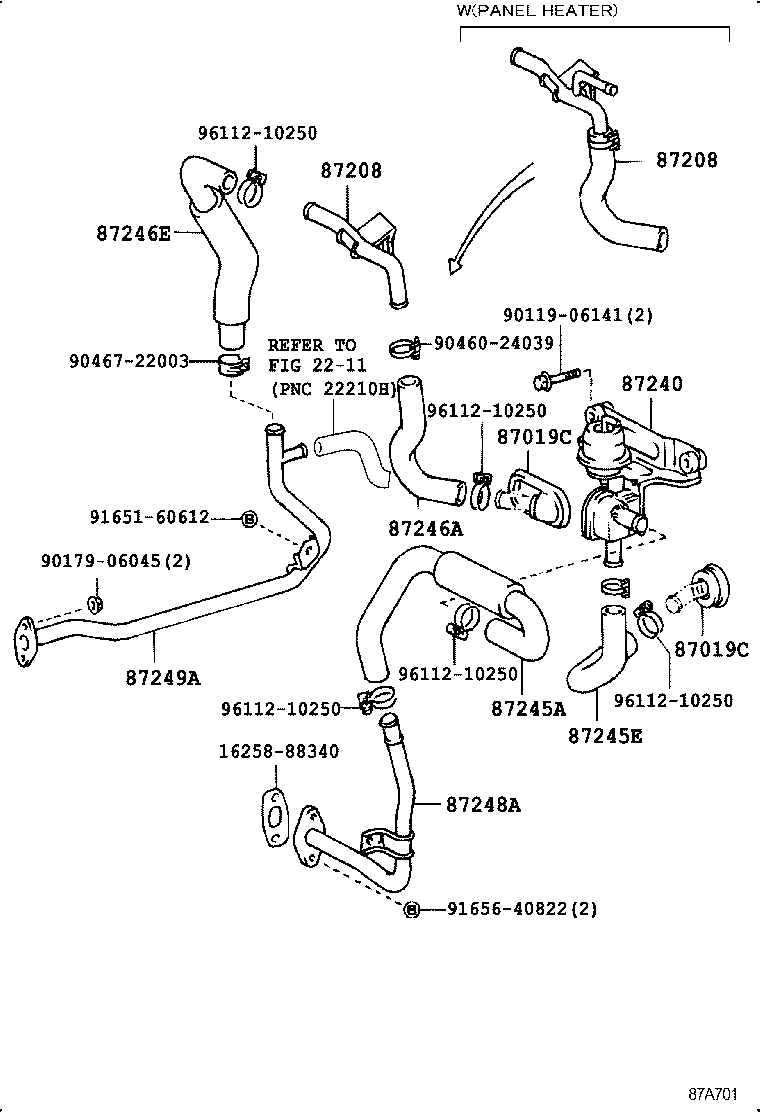

ILLUST NO. 1 OF 2(8510- )TWT

Click highlighted areas on diagram

diagram 1625888340 2211 87019C 87019C 87208 87208 87240 87245A 87245E 87246A 87246E 87248A 87249A 9011906141 9017906045 9046024039 9046722003 9165160612 9165640822 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,LX70,MX71,SX70,YX7#

OUTLET

 1
90480-36011

GX71,LX70,MX71,SX70,YX7#

INLET

 1
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,LX70,MX71,SX70,YX7#

OUTLET

 1
90480-36011

GX71,LX70,MX71,SX70,YX7#

INLET

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22160

GX71..TWT

 1
87209-22120

GX71..TWT

W/PANEL HEATER

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22160

GX71..TWT

 1
87209-22120

GX71..TWT

W/PANEL HEATER

 1
87240 - VALVE ASSY, HEATER WATER
87240-22250

GX71,MX71..TBO,TWT

HEATER RADIATOR

 1
87240-22240

GX71..5F..TWT

HEATER RADIATOR,GT-S PACKAGE

 1
87245A - HOSE, HEATER WATER, INLET A
87245-22890

GX71..TWT

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22610

GX71,MX71..TBO,TWT

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22850

GX71..TWT

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-22840

GX71..TWT

 1
87248A - PIPE, HEATER WATER INLET, A
87208-22170

GX71..TWT

 1
87208-22150

GX71..TWT

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-22141

GX71..TWT

 1
Common parts
16258-88340
90119-06141
90179-06045
90460-24039
90467-22003
91651-60612
91656-40822
96112-10250
Linked diagrams
2211
