GX71-DTMZZ (1985)

Toyota Chaser

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )TWT

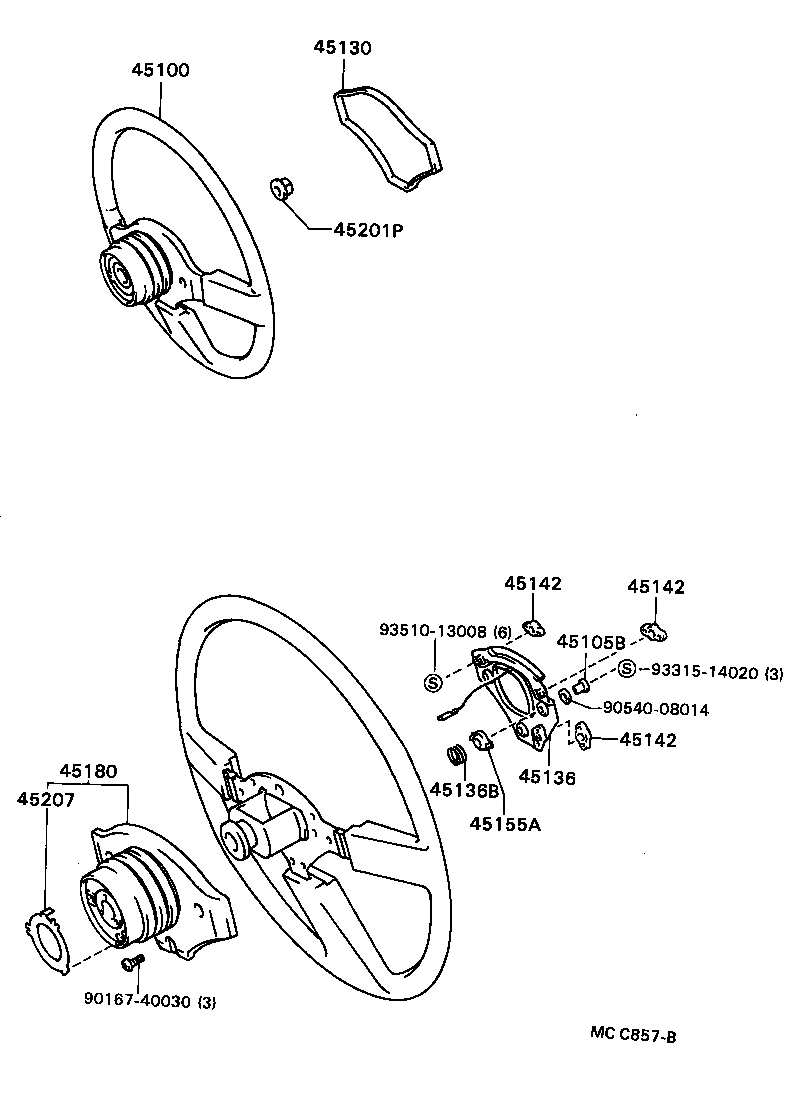

Click highlighted areas on diagram

diagram 45100 45105B 45130 45136 45136B 45142 45142 45142 45155A 45180 45201P 45207 9016740030 9054008014 9331514020 9351013008
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2228002

GX71..TWT

MAROON,MAROON,TRIM3#

 1
45100-2228003

GX71..TWT

GRAY,COOL GRAY,TRIM1#

 1
45100-2228005

GX71..TWT

BEIGE,BEIGE,TRIM4#

 1
45100-2228004

GX71..TWT

BLUE,DARK BLUE,TRIM8#

 1
45100-2228012

GX71..TWT

MAROON,MAROON,TRIM3#

 1
45100-2228015

GX71..TWT

BEIGE,BEIGE,TRIM4#

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-04011

GX71..TWT

 3
90561-04010

GX71..TWT

 3
45130 - BUTTON ASSY, HORN
45130-2225002

GX71..TWT

MAROON,MAROON,TRIM3#

 1
45130-2225005

GX71..TWT

BEIGE,BEIGE,TRIM4#

 1
45130-2225003

GX71..TWT

GRAY,COOL GRAY,TRIM1#

 1
45130-2225015

GX71..TWT

BEIGE,BEIGE,TRIM4#

 1
45130-2225012

GX71..TWT

MAROON,MAROON,TRIM3#

 1
45130-2225004

GX71..TWT

BLUE,DARK BLUE,TRIM8#

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-12120

GX71..TWT

 1
45136B - SPRING, COMPRESSION(FOR HORN BUTTON CONTACT PLATE)
90501-10083

GX71..TWT

 3
90501-12099

GX71..TWT

 3
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-12050

GX71..TWT

 3
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-12050

GX71..TWT

 3
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-12050

GX71..TWT

 3
45155A - SPACER, HORN CONTACT
45155-12030

GX71..TWT

 3
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2202004

GX71..TWT

BLUE,DARK BLUE,TRIM8#

 1
45180-2202002

GX71..TWT

MAROON,MAROON,TRIM3#

 1
45180-2202005

GX71..TWT

BEIGE,BEIGE,TRIM4#

 1
45180-2202012

GX71..TWT

MAROON,MAROON,TRIM3#

 1
45180-2202003

GX71..TWT

GRAY,COOL GRAY,TRIM1#

 1
45180-2202015

GX71..TWT

BEIGE,BEIGE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

GX71,LX70,MX71,SX70,YX7#

 1
45207 - RING, HORN CONTACT
45176-20030

GX71..TWT

 1
Common parts
90167-40030
90540-08014
93315-14020
93510-13008
