GX71-DTMZZ (1985)
Toyota Chaser
(8510- )5F..TWT

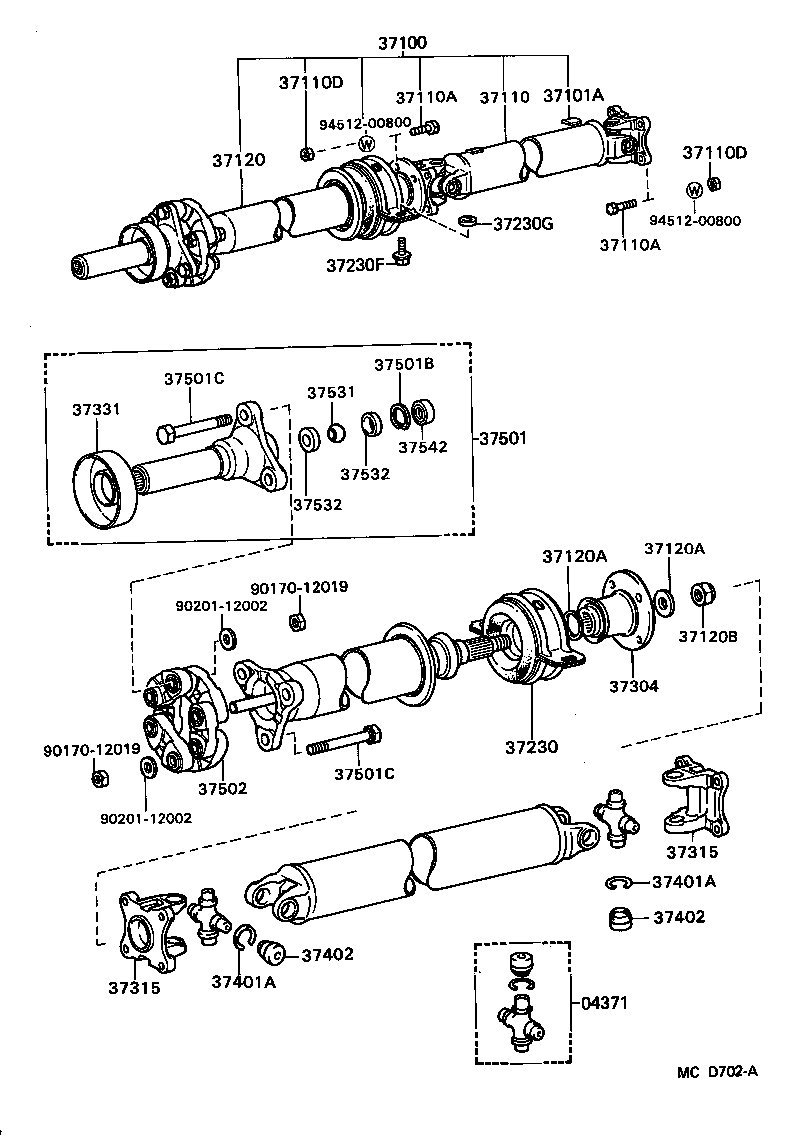

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-30020 |
GX71..TWT |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-22460 |
GX71..5F..TWT |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01153 |
GX71,LX70,MX71,SX70,YX70 16G,長さ=33.2,16G |
3 | ||
| 90937-01158 |
GX71,LX70,MX71,SX70,YX70 28G,長さ=58.1,28G |
3 | ||
| 90937-01140 |
GX71,LX70,MX71,SX70,YX70 30G,長さ=62.2,30G |
3 | ||
| 90937-01147 |
GX71,LX70,MX71,SX70,YX7# 2G,厚さ=2.0,2G |
3 | ||
| 90937-01136 |
GX71,LX70,MX71,SX70,YX70 20G,長さ=41.4,20G |
3 | ||
| 90937-01151 |
GX71,LX70,MX71,SX70,YX7# 12G,長さ=24.9,12G |
3 | ||
| 90937-01154 |
GX71,LX70,MX71,SX70,YX70 18G,長さ=37.3,18G |
3 | ||
| 90937-01132 |
GX71,LX70,MX71,SX70,YX7# 10G,長さ=20.7,10G |
3 | ||
| 90937-01148 |
GX71,LX70,MX71,SX70,YX7# 4G,厚さ=2.0,4G |
3 | ||
| 90937-01157 |
GX71,LX70,MX71,SX70,YX70 26G,長さ=53.9,26G |
3 | ||
| 90937-01311 |
GX71,LX70,SX70,YX72 3G,7G;5G;3G;9G |
3 | ||
| 90937-01149 |
GX71,LX70,MX71,SX70,YX7# 6G,長さ=12.4,6G |
3 | ||
| 90937-01150 |
GX71,LX70,MX71,SX70,YX7# 8G,長さ=16.6,8G |
3 | ||
| 90937-01152 |
GX71,LX70,MX71,SX70,YX7# 14G,長さ=29.0,14G |
3 | ||
| 90937-01155 |
GX71,LX70,MX71,SX70,YX70 22G,長さ=45.6,22G |
3 | ||
| 90937-01156 |
GX71,LX70,MX71,SX70,YX70 24G,長さ=49.7,24G |
3 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-22130 |
GX71..5F..TWT |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
GX71..TWT *10−1.00PX27−13 |
4 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
GX71..TWT *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
GX71..TWT |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
GX71..TWT |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-22360 |
GX71..5F..TWT |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-26005 |
GX71,LX70,MX71,SX70,YX7# 外径=36.6,厚さ=0.8,T=0.8,OD=36.6 |
1 | ||
| 90201-18182 |
GX71,LX70,MX71,SX70,YX7# 外径=33.5,厚さ=4.0,T=4,OD=33.5 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-26005 |
GX71,LX70,MX71,SX70,YX7# 外径=36.6,厚さ=0.8,T=0.8,OD=36.6 |
1 | ||
| 90201-18182 |
GX71,LX70,MX71,SX70,YX7# 外径=33.5,厚さ=4.0,T=4,OD=33.5 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-14050 |
GX71..5F..(AVT,GT) |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10034 |
GX71,LX70,MX71,SX70,YX7# 厚さ=11.0,T=11.0 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
GX71..TWT |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
GX71..TWT |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
GX71..TWT |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
GX71..5F..TWT;GX71,LX70,MX71,SX70,YX70..AVT,KYO,SXL,XG,XL |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26233 |
GX71..TWT 厚さ=1.50,外径=32.4 |
12 | ||
| 90520-26235 |
GX71..TWT 厚さ=1.60,T=1.60 |
12 | ||
| 90520-26038 |
GX71..TWT 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26040 |
GX71..TWT 厚さ=2.175,ﾏｰｸ 2,T=2.175 |
12 | ||
| 90520-26045 |
GX71..TWT 厚さ=2.425,ﾏｰｸ 7,T=2.425 |
12 | ||
| 90520-26234 |
GX71..TWT 厚さ=1.55,T=1.55 |
12 | ||
| 90520-26041 |
GX71..TWT 厚さ=2.225,ﾏｰｸ 3,T=2.225 |
12 | ||
| 90520-26042 |
GX71..TWT 厚さ=2.275,ﾏｰｸ 4,T=2.275 |
12 | ||
| 90520-26044 |
GX71..TWT 厚さ=2.375,ﾏｰｸ 6,T=2.375 |
12 | ||
| 90520-26046 |
GX71..TWT 厚さ=2.475,ﾏｰｸ 8,T=2.475 |
12 | ||
| 90520-26043 |
GX71..TWT 厚さ=2.325,ﾏｰｸ 5,T=2.325 |
12 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26233 |
GX71..TWT 厚さ=1.50,外径=32.4 |
12 | ||
| 90520-26235 |
GX71..TWT 厚さ=1.60,T=1.60 |
12 | ||
| 90520-26038 |
GX71..TWT 厚さ=2.125,ﾏｰｸ 1 |
12 | ||
| 90520-26040 |
GX71..TWT 厚さ=2.175,ﾏｰｸ 2,T=2.175 |
12 | ||
| 90520-26045 |
GX71..TWT 厚さ=2.425,ﾏｰｸ 7,T=2.425 |
12 | ||
| 90520-26234 |
GX71..TWT 厚さ=1.55,T=1.55 |
12 | ||
| 90520-26041 |
GX71..TWT 厚さ=2.225,ﾏｰｸ 3,T=2.225 |
12 | ||
| 90520-26042 |
GX71..TWT 厚さ=2.275,ﾏｰｸ 4,T=2.275 |
12 | ||
| 90520-26044 |
GX71..TWT 厚さ=2.375,ﾏｰｸ 6,T=2.375 |
12 | ||
| 90520-26046 |
GX71..TWT 厚さ=2.475,ﾏｰｸ 8,T=2.475 |
12 | ||
| 90520-26043 |
GX71..TWT 厚さ=2.325,ﾏｰｸ 5,T=2.325 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30010 |
GX71..TWT |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30010 |
GX71..TWT |
12 | ||
| 37501 - FLANGE SUB-ASSY, FLEXIBLE COUPLING SLEEVE | ||||
| 37501-20010 |
GX71..5F..(AVT,GT) |
1 | ||
| 37501B - RING, HOLE SNAP (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 90521-37004 |
GX71..5F..(AVT,GT) 厚さ=1.51,T=1.51 |
1 | ||
| 90521-37003 |
GX71..5F..(AVT,GT) 厚さ=1.48,T=1.48 |
1 | ||
| 90521-37002 |
GX71..5F..(AVT,GT) 厚さ=1.45,T=1.45 |
1 | ||
| 90521-37005 |
GX71..5F..(AVT,GT) 厚さ=1.54,T=1.54 |
1 | ||
| 90521-37001 |
GX71..5F..(AVT,GT) 厚さ=1.42,T=1.42 |
1 | ||
| 37501C - BOLT (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 90101-12008 |
GX71..5F..(AVT,GT) |
6 | ||
| 37501C - BOLT (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 90101-12008 |
GX71..5F..(AVT,GT) |
6 | ||
| 37502 - COUPLING SUB-ASSY, FLEXIBLE | ||||
| 37502-20010 |
GX71..5F..(AVT,GT) |
1 | ||
| 37531 - BALL, FLEXIBLE COUPLING CENTERING | ||||
| 37531-20010 |
GX71..5F..(AVT,GT) |
1 | ||
| 37532 - SEAT, FLEXIBLE COUPLING | ||||
| 37532-20010 |
GX71..5F..(AVT,GT) |
2 | ||
| 37532 - SEAT, FLEXIBLE COUPLING | ||||
| 37532-20010 |
GX71..5F..(AVT,GT) |
2 | ||
| 37542 - SEAL, CENTERING (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 37542-20011 |
GX71..5F..(AVT,GT) |
1 | ||
| Common parts | ||||
| 90170-12019 | ||||
| 90201-12002 | ||||
| 94512-00800 | ||||
