GX71-DTMZZ (1985)

Toyota Chaser

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )5F..TWT

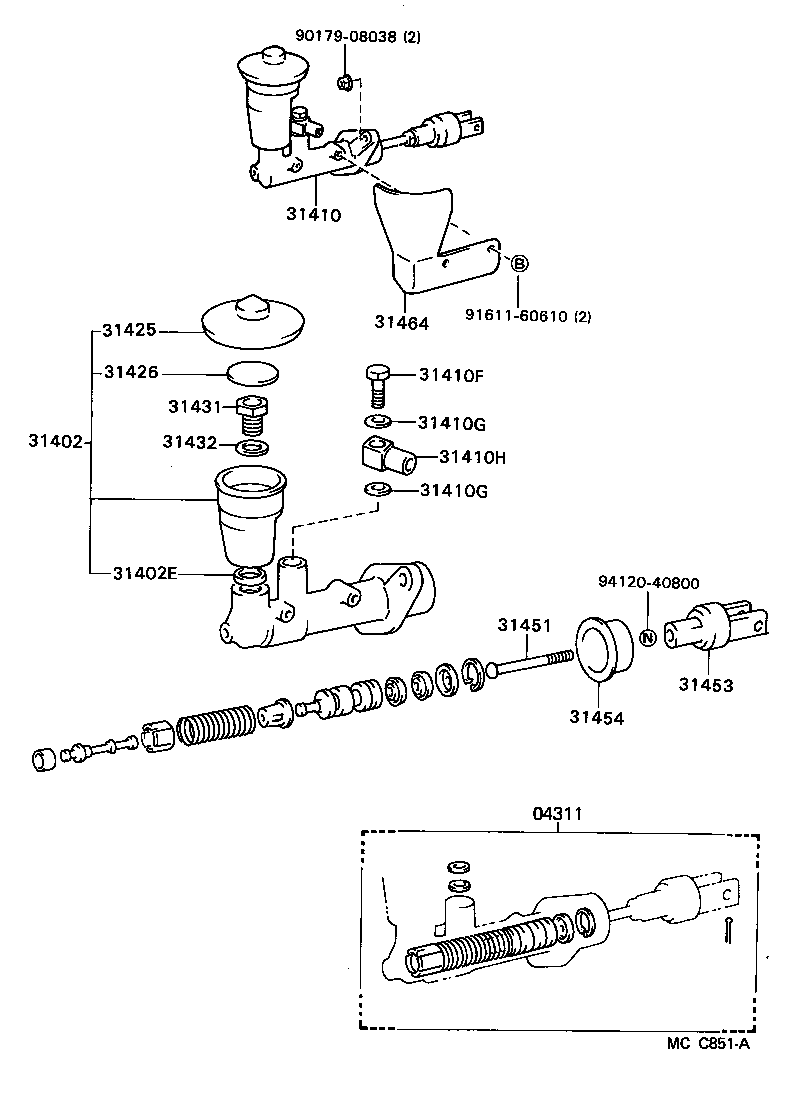

Click highlighted areas on diagram

diagram 04311 31402 31402E 31410 31410F 31410G 31410G 31410H 31425 31426 31431 31432 31451 31453 31454 31464 9017908038 9161160610 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-22030

GX71,LX70..5F..(TD,TWC,TWT)

 1
04311-14031

GX71,LX70..5F..(TD,TWC,TWT)

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-24010

GX71..5F..TWT

 1
31402E - RING(FOR CLUTCH MASTER CYLINDER RESERVOIR)
90562-18151

GX71..5F..TWT

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-22131

GX71..5F..TWT

 1
31410-22130

GX71..5F..TWT

 1
31410-22132

GX71..5F..TWT

 1
31410F - BOLT, UNION(FOR CLUTCH MASTER CYLINDER)
90401-10012

GX71..5F..TWT

 1
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-10074

GX71..5F..TWT

 2
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-10074

GX71..5F..TWT

 2
31410H - UNION(FOR CLUTCH MASTER CYLINDER)
90405-10165

GX71..5F..TWT

 1
31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

GX71,LX70,SX70,YX7#..5F

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

GX71,LX70,SX70,YX7#..5F

 1
31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-30010

GX71,LX70,SX70,YX70..5F

 1
47231-20010

GX71..5F..TWT

 1
31432 - WASHER, CLUTCH RESERVOIR SET BOLT
47232-30010

GX71,LX70,SX70,YX7#..5F

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-22070

GX71,LX70..5F..(TD,TWC,TWT)

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-30041

GX71,LX70,SX70,YX70..5F

 1
31404-36020

GX71..5F..TWT

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-24010

GX71,LX70,SX70,YX7#..5F

 1
31464 - INSULATOR, CLUTCH MASTER CYLINDER HEAT
31464-24010

GX71..5F..TWT

 1
Common parts
90179-08038
91611-60610
94120-40800
