GX71-DTMZZ (1985)
Toyota Chaser

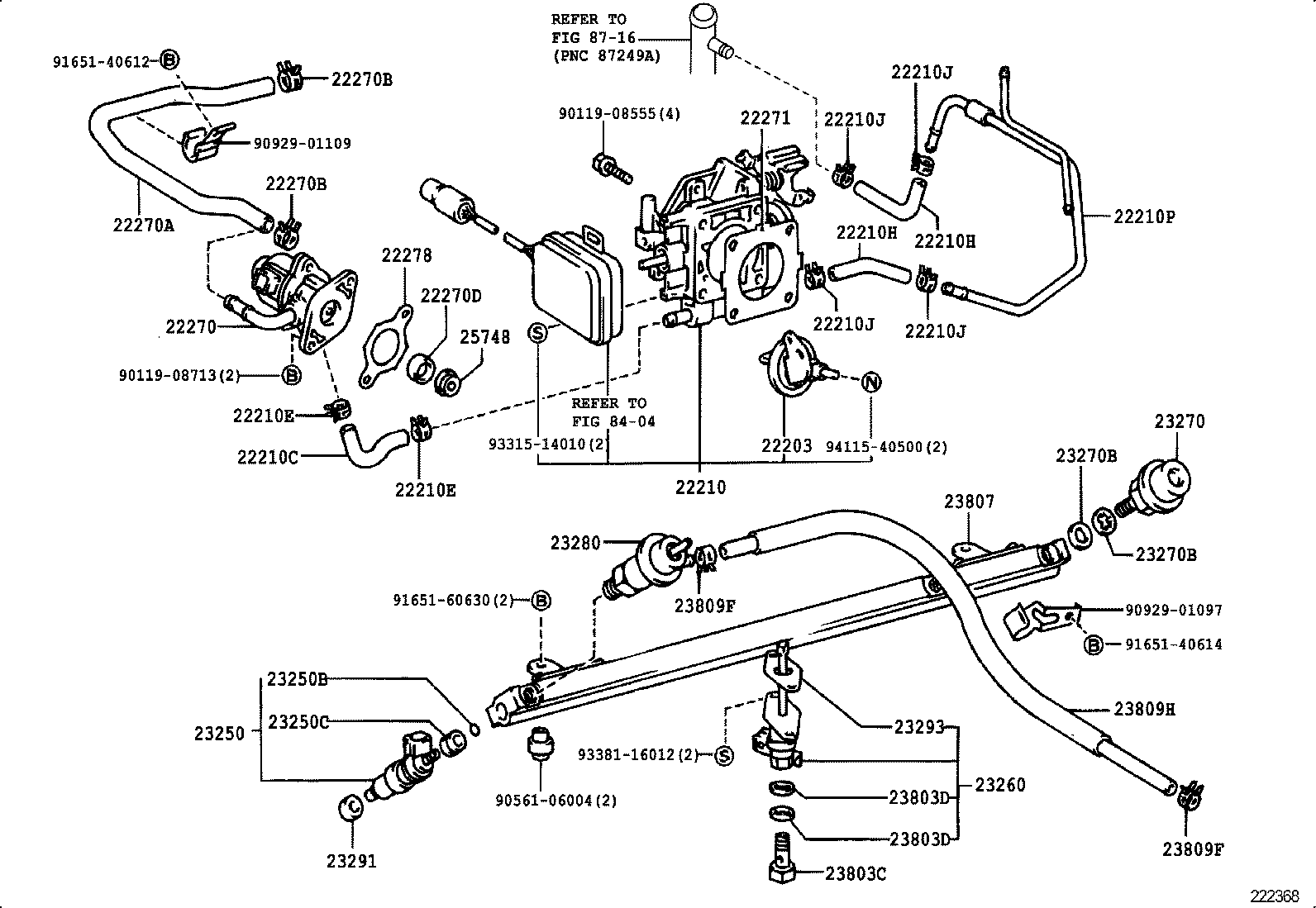

ILLUST NO. 1 OF 3(8510- )1GGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-70040 |
1GGTEU..GX71 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70140 |
1GGTEU..GX71..5F |
1 | ||
| 22210-70190 |
1GGTEU..GX71..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16283-88340 |
1GGTEU..GX71 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-17005 |
1GGTEU..GX71 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-17005 |
1GGTEU..GX71 |
2 | ||
| 22210H - HOSE, WATER BY-PASS, NO.3 | ||||
| 90910-05176 |
1GGTEU..GX71 THROTTLE BODY SIDE |
1 | ||
| 90910-05175 |
1GGTEU..GX71 PIPE SIDE |
1 | ||
| 22210H - HOSE, WATER BY-PASS, NO.3 | ||||
| 90910-05176 |
1GGTEU..GX71 THROTTLE BODY SIDE |
1 | ||
| 90910-05175 |
1GGTEU..GX71 PIPE SIDE |
1 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-17005 |
1GGTEU..GX71 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-17005 |
1GGTEU..GX71 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-17005 |
1GGTEU..GX71 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-17005 |
1GGTEU..GX71 |
4 | ||
| 22210P - PIPE, WATER BY-PASS | ||||
| 16279-88340 |
1GGTEU..GX71 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-70070 |
1GGTEU..GX71 |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 22233-88340 |
1GGTEU..GX71 |
1 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-21001 |
1GGTEU..GX71 |
2 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-21001 |
1GGTEU..GX71 |
2 | ||
| 22270D - WASHER, SEAL(FOR IDLE SPEED CONTROL VALVE) | ||||
| 90210-25001 |
1GGTEU..GX71 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88340 |
1GGTEU..GX71 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-88340 |
1GGTEU..GX71 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-70040 |
1GGTEU..GX71 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1GEU,1GG#..GX71 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1GEU,1GG#..GX71 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79096 |
1GGTEU..GX71 |
1 | ||
| 23260-79095 |
1GGTEU..GX71 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-28030 |
1GGTEU..GX71 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 |
1GG#..GX71 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GG#..GX71 DELIVERY PIPE SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 |
1GG#..GX71 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GG#..GX71 DELIVERY PIPE SIDE |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-70040 |
1GGTEU..GX71 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1GEU,1GG#..GX71 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-88340 |
1GGTEU..GX71 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
1GEU,1GG#..GX71 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-88300 |
1GGTEU..GX71 |
1 | ||
| 23807-88300 |
1GG#..GX71 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
1GG#..GX71 |
2 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
1GG#..GX71 |
2 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 90447-15008 |
1GGTEU..GX71 |
1 | ||
| 25748 - VALVE, CHECK(FOR IDLE SPEED CONTROL) | ||||
| 25748-88341 |
1GGTEU..GX71 |
1 | ||
| Common parts | ||||
| 90119-08555 | ||||
| 90119-08713 | ||||
| 90561-06004 | ||||
| 90929-01097 | ||||
| 90929-01109 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-60630 | ||||
| 93315-14010 | ||||
| 93381-16012 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 3(8408-8608)1GGEU ; (8510- )1GGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79125 |
1GGTEU..GX71 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GEU,1GG#..GX71 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1GEU,1GG#..GX71 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1GEU,1GG#..GX71 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01328 |
1GG#..GX71 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-88340 |
1GGTEU..GX71 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-88340 |
1GGTEU..GX71 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
1GEU,1GG#..GX71 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GEU,1GG#..GX71 |
4 | ||
| Common parts | ||||
| 90179-06106 | ||||
| 90461-08580 | ||||
| 91651-60816 | ||||
