GX71-DTMZZ (1985)

Toyota Chaser

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )1GGTEU

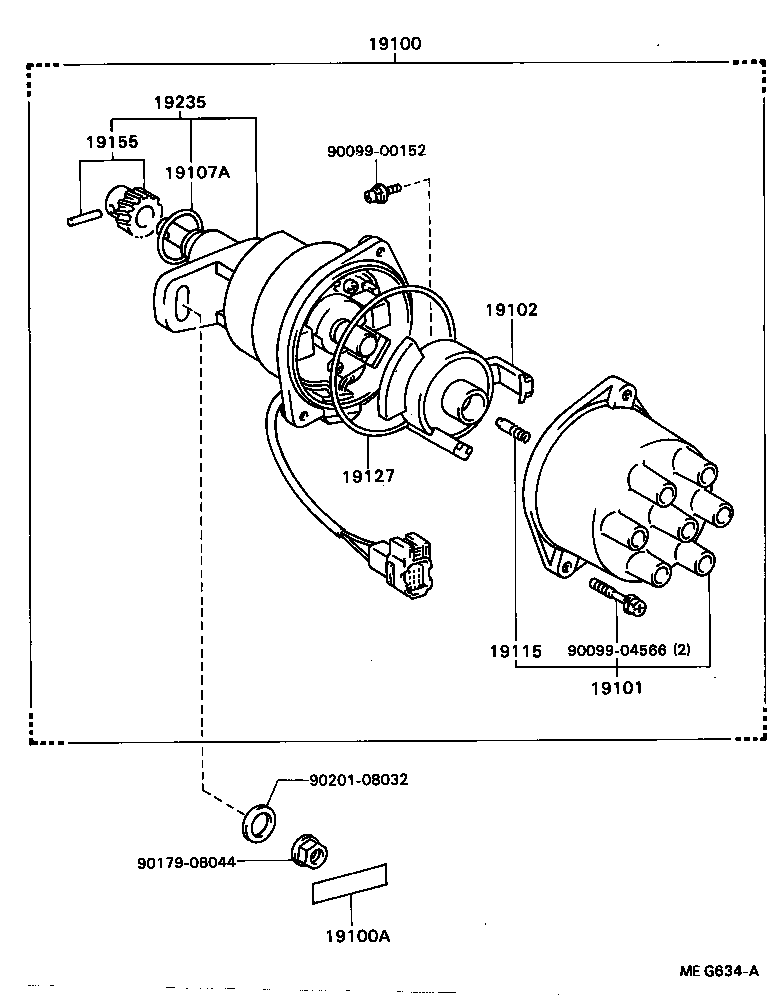

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19127 19155 19235 9009900152 9009904566 9017908044 9020108032
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-88340

1GGTEU..GX71

 1
19100-88341

1GGTEU..GX71

 1
19100A - TAPE, SEALING
90919-24004

1GEU,1GG#..GX71

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-88340

1GGTEU..GX71

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-88340

1GGTEU..GX71

 1
19107A - RING, O, DISTRIBUTOR HOUSING
96710-04030

1GGTEU..GX71

 1
96711-35030

1GGTEU..GX71

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

1GGTEU..GX71

 1
19127 - PACKING, DUST PROOF
19127-41141

1GGTEU..GX71

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-88340

1GGTEU..GX71

 1
19235 - HOUSING, DISTRIBUTOR
19235-88341

1GGTEU..GX71

 1
Common parts
90099-00152
90099-04566
90179-08044
90201-08032
