GX71-DTMZZ (1985)
Toyota Chaser
Production
Oct 1985
-
Aug 1988
Engine
1GGTEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8510- )1GGTEU

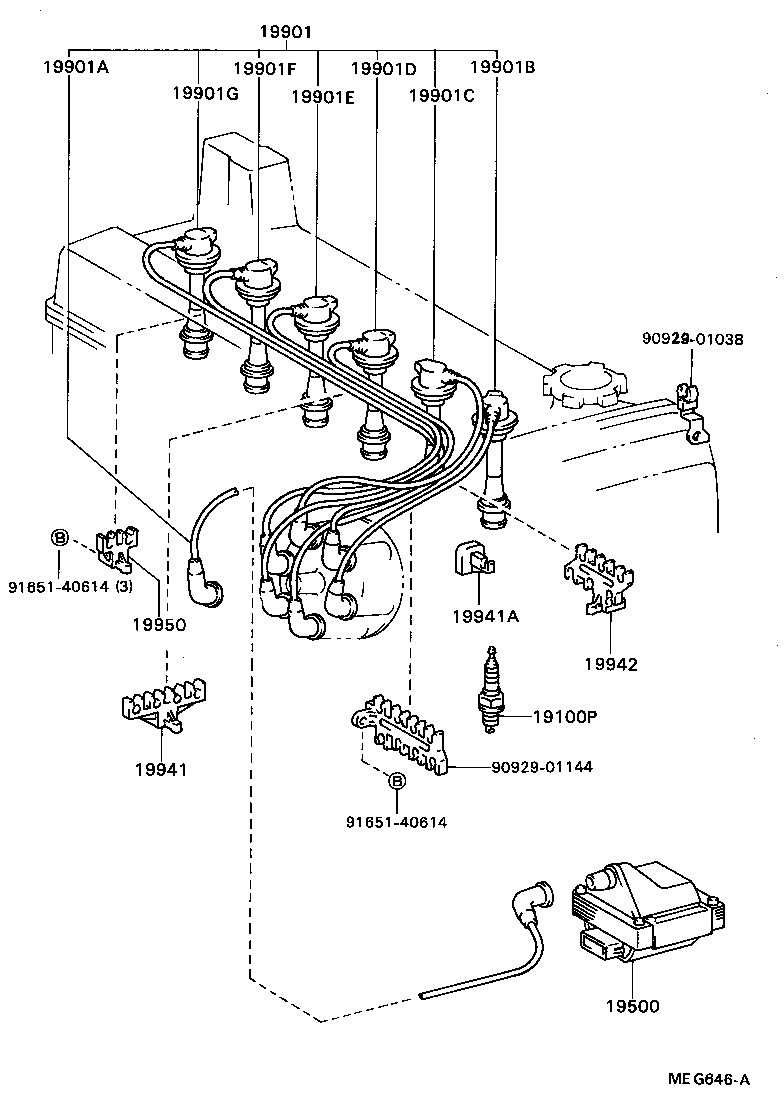

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01145 |
1GGTEU..GX71 PQ20R,DENSO |
6 | ||
| 90919-01146 |
1GGTEU..GX71 BCPR6EP,NGK |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02146 |
1GGTEU..GX71 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21390 |
1GGTEU..GX71 |
1 | ||
| 90919-21420 |
1GGTEU..GX71 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13291 |
1GGTEU..GX71 |
1 | ||
| 90919-13204 |
1GG#..GX71 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12596 |
1GGTEU..GX71 |
1 | ||
| 90919-12841 |
1GGTEU..GX71 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12597 |
1GGTEU..GX71 |
1 | ||
| 90919-12842 |
1GGTEU..GX71 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12843 |
1GGTEU..GX71 |
1 | ||
| 90919-12598 |
1GGTEU..GX71 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12599 |
1GGTEU..GX71 |
1 | ||
| 90919-12844 |
1GGTEU..GX71 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12845 |
1GGTEU..GX71 |
1 | ||
| 90919-12600 |
1GGTEU..GX71 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-12601 |
1GGTEU..GX71 |
1 | ||
| 90919-12846 |
1GGTEU..GX71 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90929-01100 |
1GGTEU..GX71 |
1 | ||
| 19941A - CLAMP(FOR RESISTIVE CORD) | ||||
| 90464-00423 |
1GGTEU..GX71 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90929-01101 |
1GGTEU..GX71 |
1 | ||
| 19950 - CLAMP, RESISTIVE CORD, NO.6 | ||||
| 90929-01098 |
1GGTEU..GX71 |
1 | ||
| Common parts | ||||
| 90929-01038 | ||||
| 90929-01144 | ||||
| 91651-40614 | ||||
