GX71-DTMZZ (1985)
Toyota Chaser
(8510- )1GGTEU

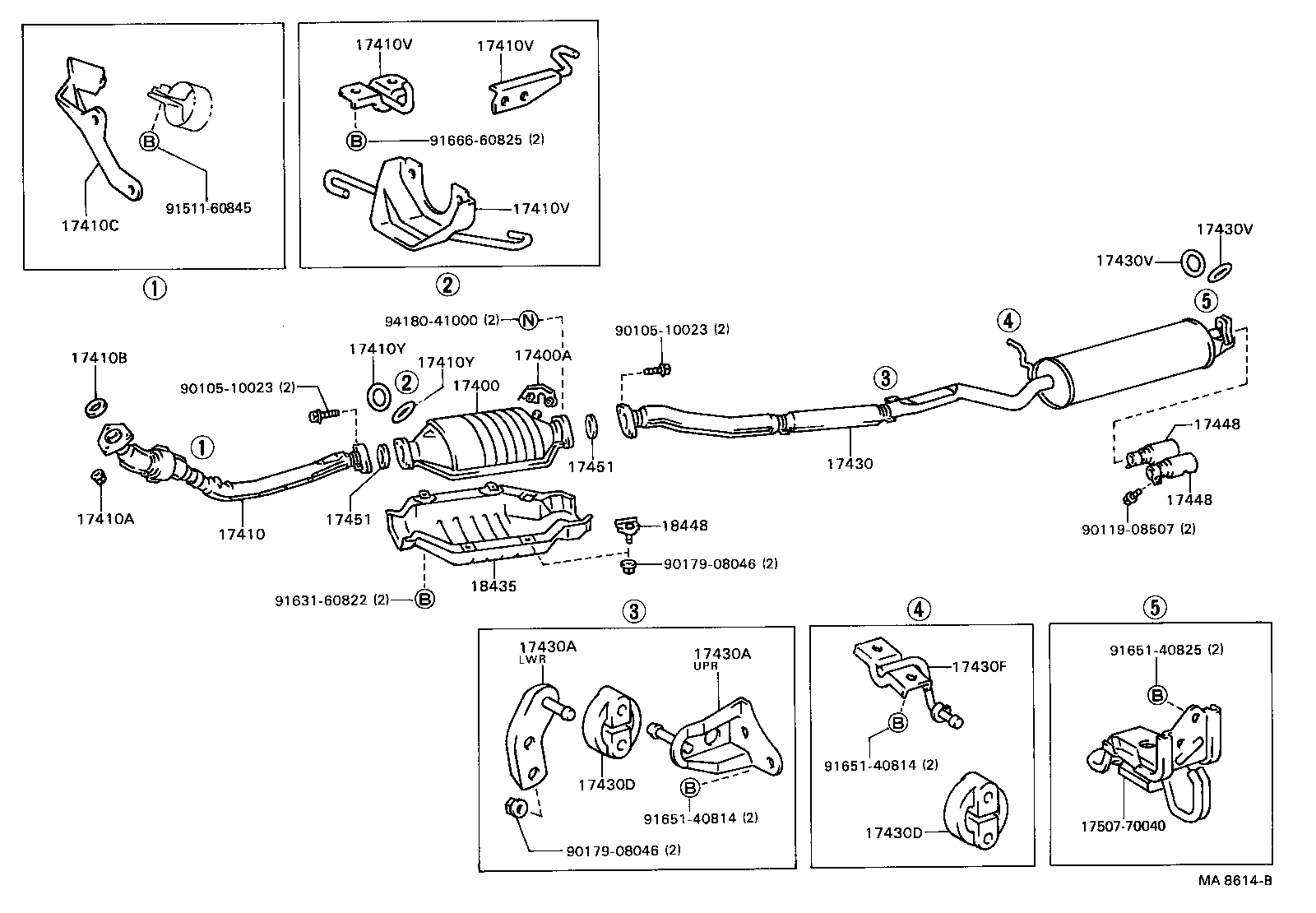

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-70020 |
1GGTEU..GX71 |
1 | ||
| 17400A - FLANGE, THERMOSENSER INLET | ||||
| 18491-63010 |
1GEU,1GG#,1SU,MTEU..GX71,MX71,SX70 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-70190 |
1GGTEU..GX71 |
1 | ||
| 17410-70140 |
1GGTEU..GX71 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06013 |
1GGTEU..GX71 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-70040 |
1GGTEU..GX71 |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17503-70060 |
1GEU,1GG#..GX71..5F ENGINE REAR MOUNTING |
1 | ||
| 17504-70020 |
1GEU,1GG#,MTEU..GX71,MX71 SIDE MEMBER |
1 | ||
| 17505-70070 |
1GGTEU..GX71 CCO SUPPORT |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17503-70060 |
1GEU,1GG#..GX71..5F ENGINE REAR MOUNTING |
1 | ||
| 17504-70020 |
1GEU,1GG#,MTEU..GX71,MX71 SIDE MEMBER |
1 | ||
| 17505-70070 |
1GGTEU..GX71 CCO SUPPORT |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17503-70060 |
1GEU,1GG#..GX71..5F ENGINE REAR MOUNTING |
1 | ||
| 17504-70020 |
1GEU,1GG#,MTEU..GX71,MX71 SIDE MEMBER |
1 | ||
| 17505-70070 |
1GGTEU..GX71 CCO SUPPORT |
1 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 90301-01001 |
1GEU,1GG#,1SU,MTEU..GX71,MX71,SX70 |
2 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 90301-01001 |
1GEU,1GG#,1SU,MTEU..GX71,MX71,SX70 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-70240 |
1GGTEU..GX71 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17506-70020 |
1GEU,1GG#,MTEU..GX71,MX71 LWR |
1 | ||
| 17506-28010 |
1GEU,1GG#,MTEU..GX71,MX71 UPR |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17506-70020 |
1GEU,1GG#,MTEU..GX71,MX71 LWR |
1 | ||
| 17506-28010 |
1GEU,1GG#,MTEU..GX71,MX71 UPR |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-63020 |
1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-63020 |
1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17508-70030 |
1GEU,1GG#,MTEU..GX71,MX71 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GEU,1GG#,2L#,1SU,MTEU..GX71,LX70,MX71,SX70 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GEU,1GG#,2L#,1SU,MTEU..GX71,LX70,MX71,SX70 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17408-70040 |
1GGTEU..GX71 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17408-70040 |
1GGTEU..GX71 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06031 |
1GGTEU..GX71 FRONT |
1 | ||
| 90917-06032 |
1GGTEU..GX71 REAR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06031 |
1GGTEU..GX71 FRONT |
1 | ||
| 90917-06032 |
1GGTEU..GX71 REAR |
1 | ||
| 18435 - PROTECTOR, CATALYTIC CONVERTER | ||||
| 18407-70010 |
1GGTEU..GX71 |
1 | ||
| 18448 - BRACKET, CONVERTER PROTECTOR, CENTER | ||||
| 18448-43010 |
1GEU,1GG#,1SU,MTEU..GX71,MX71,SX70 |
2 | ||
| Common parts | ||||
| 17507-70040 | ||||
| 90105-10023 | ||||
| 90119-08507 | ||||
| 90179-08046 | ||||
| 91511-60845 | ||||
| 91631-60822 | ||||
| 91651-40814 | ||||
| 91651-40825 | ||||
| 91666-60825 | ||||
| 94180-41000 | ||||
