GX71-DTMZZ (1985)
Toyota Chaser
Production
Oct 1985
-
Aug 1988
Engine
1GGTEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8510- )1GGTEU

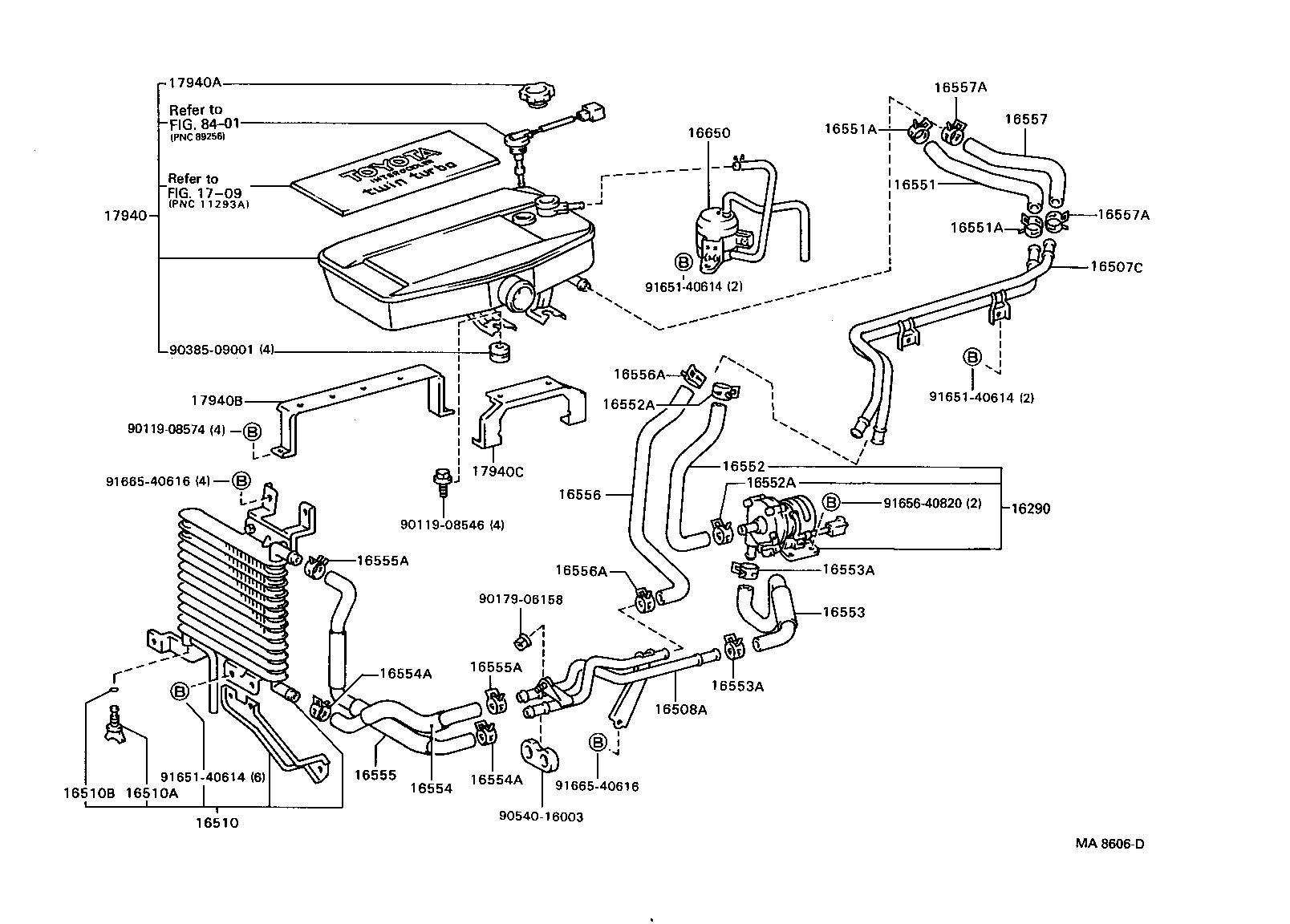

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16290 - PUMP ASSY, WATER W/MOTOR & BRACKET | ||||
| 16290-70010 |
1GGTEU..GX71 |
1 | ||
| 16507C - PIPE SUB-ASSY, SUB-RADIATOR, NO.1 | ||||
| 16507-88340 |
1GGTEU..GX71 |
1 | ||
| 16508A - PIPE SUB-ASSY, SUB-RADIATOR, NO.2 | ||||
| 16508-70011 |
1GGTEU..GX71 |
1 | ||
| 16508-70010 |
1GGTEU..GX71 |
1 | ||
| 16510 - SUB-RADIATOR ASSY | ||||
| 16510-70010 |
1GGTEU..GX71 |
1 | ||
| 16510A - PLUG, DRAIN COCK(FOR SUB-RADIATOR) | ||||
| 90910-09054 |
1GGTEU..GX71 |
1 | ||
| 16510B - RING, O(FOR SUB-RADIATOR DRAIN COCK PLUG) | ||||
| 96711-19007 |
1GGTEU..GX71 |
1 | ||
| 16551 - HOSE, SUB-RADIATOR, NO.1 | ||||
| 16551-88340 |
1GGTEU..GX71 |
1 | ||
| 16551A - CLIP, SUB-RADIATOR HOSE, NO.1 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16551A - CLIP, SUB-RADIATOR HOSE, NO.1 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16552 - HOSE, SUB-RADIATOR, NO.2 | ||||
| 16552-70020 |
1GGTEU..GX71 |
1 | ||
| 16552A - CLIP, SUB-RADIATOR HOSE, NO.2 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16552A - CLIP, SUB-RADIATOR HOSE, NO.2 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16553 - HOSE, SUB-RADIATOR, NO.3 | ||||
| 16553-70010 |
1GGTEU..GX71 |
1 | ||
| 16553A - CLIP, SUB-RADIATOR HOSE, NO.3 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16553A - CLIP, SUB-RADIATOR HOSE, NO.3 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16554 - HOSE, SUB-RADIATOR, NO.4 | ||||
| 16554-70010 |
1GGTEU..GX71 |
1 | ||
| 16554A - CLIP, SUB-RADIATOR HOSE, NO.4 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16554A - CLIP, SUB-RADIATOR HOSE, NO.4 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16555 - HOSE, SUB-RADIATOR, NO.5 | ||||
| 16555-70011 |
1GGTEU..GX71 |
1 | ||
| 16555-70010 |
1GGTEU..GX71 |
1 | ||
| 16555A - CLIP, SUB-RADIATOR HOSE, NO.5 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16555A - CLIP, SUB-RADIATOR HOSE, NO.5 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16556 - HOSE, SUB-RADIATOR, NO.6 | ||||
| 16556-70020 |
1GGTEU..GX71 |
1 | ||
| 16556A - CLIP, SUB-RADIATOR HOSE, NO.6 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16556A - CLIP, SUB-RADIATOR HOSE, NO.6 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16557 - HOSE, SUB-RADIATOR, NO.7 | ||||
| 16557-88340 |
1GGTEU..GX71 |
1 | ||
| 16557A - CLIP, SUB-RADIATOR HOSE, NO.7 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16557A - CLIP, SUB-RADIATOR HOSE, NO.7 | ||||
| 90467-22003 |
1GGTEU..GX71 |
2 | ||
| 16650 - TANK ASSY, RESERVE(FOR INTERCOOLER) | ||||
| 16650-88340 |
1GGTEU..GX71 |
1 | ||
| 17940 - INTERCOOLER ASSY | ||||
| 17940-70010 |
1GGTEU..GX71 |
1 | ||
| 17940A - CAP SUB-ASSY, INTERCOOLER | ||||
| 16401-70010 |
1GGTEU..GX71 |
1 | ||
| 17940B - BRACKET, NO.1(FOR INTERCOOLER) | ||||
| 17872-88340 |
1GGTEU..GX71 |
1 | ||
| 17940C - BRACKET, NO.2(FOR INTERCOOLER) | ||||
| 17873-88340 |
1GGTEU..GX71 |
1 | ||
| Common parts | ||||
| 90119-08546 | ||||
| 90119-08574 | ||||
| 90179-06158 | ||||
| 90385-09001 | ||||
| 90540-16003 | ||||
| 91651-40614 | ||||
| 91656-40820 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
