GX71-DTMZZ (1985)
Toyota Chaser

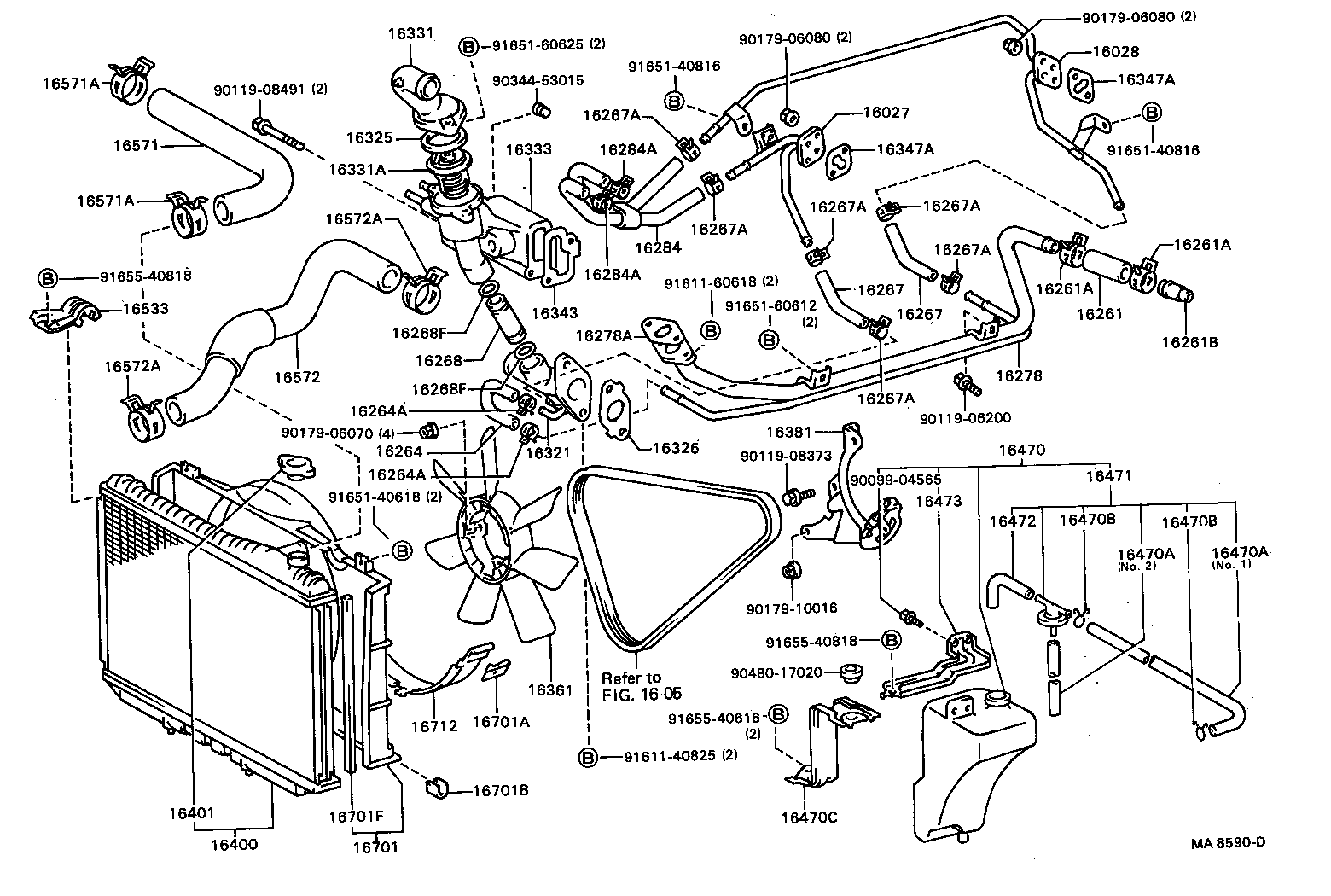

ILLUST NO. 1 OF 3(8510- )1GGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-88340 |
1GGTEU..GX71 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-88340 |
1GGTEU..GX71 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88300 |
1GG#..GX71 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-26003 |
1GG#..GX71 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-26003 |
1GG#..GX71 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-22001 |
1GG#..GX71 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 90910-05168 |
1GGTEU..GX71 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15016 |
1GGTEU..GX71 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15016 |
1GGTEU..GX71 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 90910-05169 |
1GGTEU..GX71 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 90910-05169 |
1GGTEU..GX71 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTEU..GX71 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTEU..GX71 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTEU..GX71 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTEU..GX71 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTEU..GX71 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15016 |
1GGTEU..GX71 |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88300 |
1GG#..GX71 |
1 | ||
| 16268-88301 |
1GG#..GX71 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24018 |
1GG#..GX71 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24018 |
1GG#..GX71 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-88340 |
1GGTEU..GX71 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-88300 |
1GGTEU..GX71 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-88340 |
1GGTEU..GX71 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
1GGTEU..GX71 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
1GGTEU..GX71 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88340 |
1GGTEU..GX71 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1GEU,1GG#..GX71 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-70011 |
1GEU,1GG#..GX71 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-88340 |
1GGTEU..GX71 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03063 |
1GG#..GX71 *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-88340 |
1GGTEU..GX71 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-88340 |
1GGTEU..GX71 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-88340 |
1GGTEU..GX71 |
2 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-88340 |
1GGTEU..GX71 |
2 | ||
| 16361 - FAN | ||||
| 16361-41070 |
1GG#..GX71 |
1 | ||
| 16361-88340 |
1GGTEU..GX71 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-88300 |
1GG#..GX71 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-70110 |
1GGTEU..GX71..5F |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1GEU,1GG#..GX71 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-70100 |
1GGTEU..GX71 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1GGTEU..GX71 *H,L=600,NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1GGTEU..GX71 *H,L=600,NO.1,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GEU,1GG#..GX71 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GEU,1GG#..GX71 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-70060 |
1GGTEU..GX71 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70070 |
1GGTEU..GX71 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
1GEU,1GG#..GX71 |
1 | ||
| 85338-70100 |
1GEU,1GG#..GX71 |
1 | ||
| 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) | ||||
| 16473-70100 |
1GGTEU..GX71 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70010 |
1GEU,1GG#..GX71 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-70110 |
1GGTEU..GX71 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1GG#..GX71 RADIATOR SIDE |
1 | ||
| 90467-37002 |
1GG#..GX71 WATER OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1GG#..GX71 RADIATOR SIDE |
1 | ||
| 90467-37002 |
1GG#..GX71 WATER OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-70090 |
1GG#..GX71 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1GG#..GX71 WATER PUMP SIDE |
1 | ||
| 90467-37001 |
1GG#..GX71 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1GG#..GX71 WATER PUMP SIDE |
1 | ||
| 90467-37001 |
1GG#..GX71 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-70050 |
1G#..GX71 |
1 | ||
| 16701-70040 |
1GGTEU..GX71 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1GEU,1GG#..GX71 W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1GEU,1GG#..GX71 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-70040 |
1GEU,1GG#..GX71 W/COOLER |
1 | ||
| Common parts | ||||
| 90099-04565 | ||||
| 90119-06200 | ||||
| 90119-08373 | ||||
| 90119-08491 | ||||
| 90179-06070 | ||||
| 90179-06080 | ||||
| 90179-10016 | ||||
| 90344-53015 | ||||
| 90480-17020 | ||||
| 91611-40825 | ||||
| 91611-60618 | ||||
| 91651-40618 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 91651-60625 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| Linked diagrams | ||||
| 1605 | ||||
