GX71-DTMZZ (1985)

Toyota Chaser

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )1GGTEU

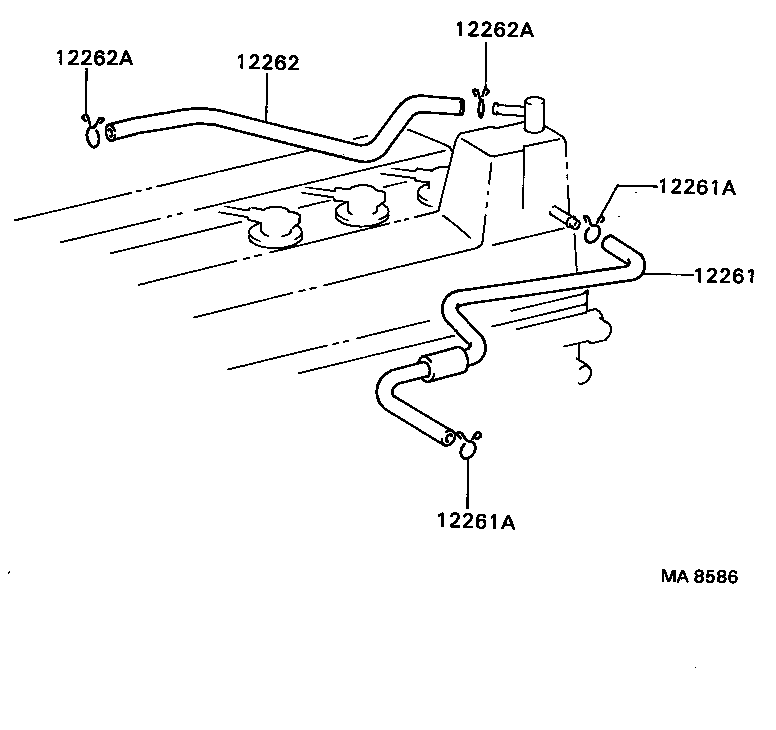

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-88340

1GGTEU..GX71

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14003

1GGTEU..GX71

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14003

1GGTEU..GX71

 2
12262 - HOSE, VENTILATION, NO.2
12262-88340

1GGTEU..GX71

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-20134

1GGTEU..GX71

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-20134

1GGTEU..GX71

 2
