GX71-DTMZZ (1985)

Toyota Chaser

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )1GGTEU

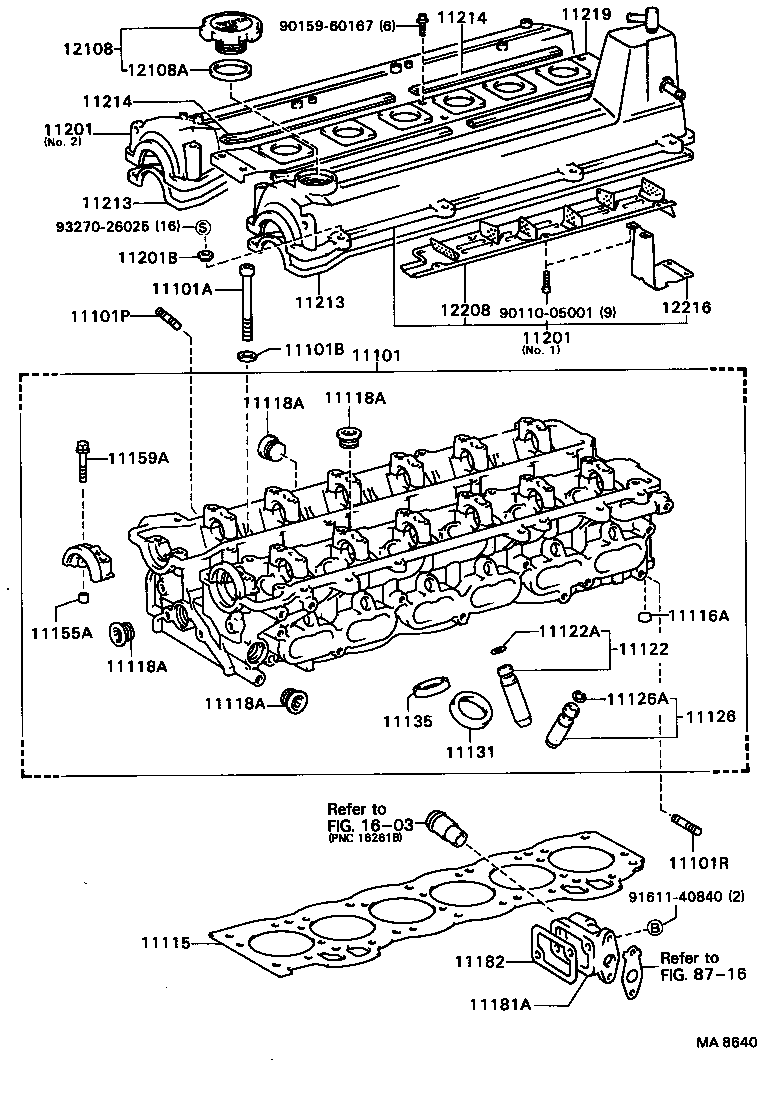

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101P 11101R 11115 11116A 11118A 11118A 11118A 11118A 11122 11122A 11126 11126A 11131 11135 11155A 11159A 11181A 11182 11201 11201 11201B 11213 11213 11214 11214 11219 12108 12108A 12208 12216 1603 8716 9011005001 9015960167 9161140840 9327026025
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-88340

1GGTEU..GX71

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90110-10003

1GG#..GX71

 14
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10050

1GG#..GX71

 14
90201-10050

1GEU,1GG#..GX71

 14
11101P - BOLT, STUD(FOR DISTRIBUTOR)
90116-08115

1GG#..GX71

 1
11115 - GASKET, CYLINDER HEAD
11115-88340

1GGTEU..GX71

 1
11116A - PLUG, TIGHT, NO.1
96411-41800

1GG#..GX71

 4
11122 - BUSH, INTAKE VALVE GUIDE
11123-88310

1GG#..GX71

O/S 0.05,0/S 0.05,*54

 12
11122-88310

1GG#..GX71

STD,STD,*54

 12
11122-88320

1GG#..GX71

STD,STD,*54

 12
11123-88320

1GG#..GX71

O/S 0.05,0/S 0.05,*54

 12
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10004

1GG#..GX71

 12
90520-10004

1GG#..GX71

*54

 12
11126 - BUSH, EXHAUST VALVE GUIDE
11122-88310

1GG#..GX71

STD,STD,*54

 12
11123-88310

1GG#..GX71

O/S 0.05,0/S 0.05,*54

 12
11122-88320

1GG#..GX71

STD,STD,*54

 12
11123-88320

1GG#..GX71

O/S 0.05,0/S 0.05,*54

 12
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10004

1GG#..GX71

 12
11131 - SEAT, INTAKE VALVE
11131-70010

1GG#..GX71

STD,STD

 12
11132-70010

1GG#..GX71

O/S 0.03,O/S 0.03

 12
11155A - PIN, RING W/HEAD
90253-10004

1GG#..GX71

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07002

1GG#..GX71

 28
11181A - COVER, CYLINDER HEAD, REAR
11181-88340

1GGTEU..GX71

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-88300

1GG#..GX71

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-88340

1GGTEU..GX71

NO.1

 1
11212-88340

1GGTEU..GX71

NO.2

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-88340

1GGTEU..GX71

NO.1

 1
11212-88340

1GGTEU..GX71

NO.2

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-07001

1GG#..GX71

 16
11213 - GASKET, CYLINDER HEAD COVER
11213-88341

1GG#..GX71

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-88341

1GG#..GX71

 2
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11229-88300

1GGTEU..GX71

 4
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11229-88300

1GGTEU..GX71

 4
11219 - COVER, CYLINDER HEAD, NO.3
11219-88340

1GGTEU..GX71

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

1G#..GX71

 1
12180-13030

1GGTEU..GX71

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1GEU,1GG#..GX71

 1
12208 - PLATE SUB-ASSY, VENTILATION BAFFLE
12208-88340

1GGTEU..GX71

 1
12216 - PLATE, VENTILATION BAFFLE
12238-88340

1GGTEU..GX71

 1
Common parts
90110-05001
90159-60167
91611-40840
93270-26025
