GX71-DTMGF (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

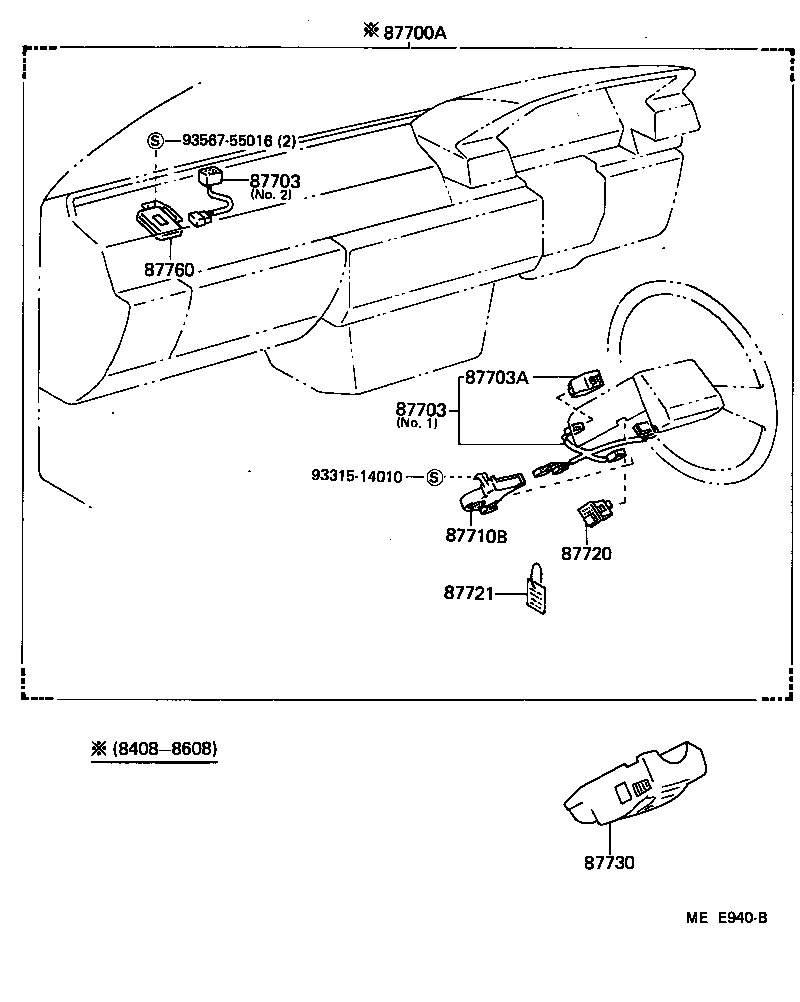

Click highlighted areas on diagram

diagram 87700A 87703 87703 87703A 87710B 87720 87721 87730 87760 9331514010 9356755016
Part # Description Qty Price
87700A - QUICK HEATER & ACCESSORY ASSY
87700-22050

GX71,MX71..AVT

 1
87703 - HARNESS SUB-ASSY, QUICK HEATER
87703-22010

GX71,MX71..AVT,SXL

NO.1

 1
87703-22011

GX71..EFI,TWC

NO.1

 1
87703 - HARNESS SUB-ASSY, QUICK HEATER
87703-22010

GX71,MX71..AVT,SXL

NO.1

 1
87703-22011

GX71..EFI,TWC

NO.1

 1
87703A - RELAY, QUICK HEATER
88630-22020

GX71,MX71..AVT,SXL

 1
87710B - HEATER ASSY, QUICK
87710-22021

GX71..EFI,TWC

 1
87710-22020

GX71,MX71..AVT,SXL

 1
87720 - SWITCH ASSY, QUICK HEATER
87720-22010

GX71,MX71..AVT,SXL

 1
87720-22011

GX71..EFI,TWC

 1
87721 - PLATE, QUICK HEATER CAUTION
87721-22020

GX71,MX71..AVT,SXL

 1
87730 - DUCT ASSY, QUICK HEATER
87730-2201003

GX71,MX71..AVT,SXL

GRAY,COOL GRAY,TRIM1#

 1
87730-2201002

GX71,MX71..AVT,SXL

MAROON,RED,TRIM3#

 1
87730-2201005

GX71,MX71..AVT,SXL

BEIGE,BEIGE,TRIM4#

 1
87730-2201015

GX71..EFI,TWC

BEIGE,DARK BEIGE,TRIM4#

 1
87730-2201012

GX71..EFI,TWC

MAROON,MAROON,TRIM3#

 1
87730-2201004

GX71..EFI,TWC

BLUE,DARK BLUE,TRIM8#

 1
87760 - AMPLIFIER ASSY, QUICK HEATER
87760-22020

GX71,MX71..AVT,SXL

 1
Common parts
93315-14010
93567-55016
