GX71-DTMGF (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)TWC,TWT ; (8608- )TWC

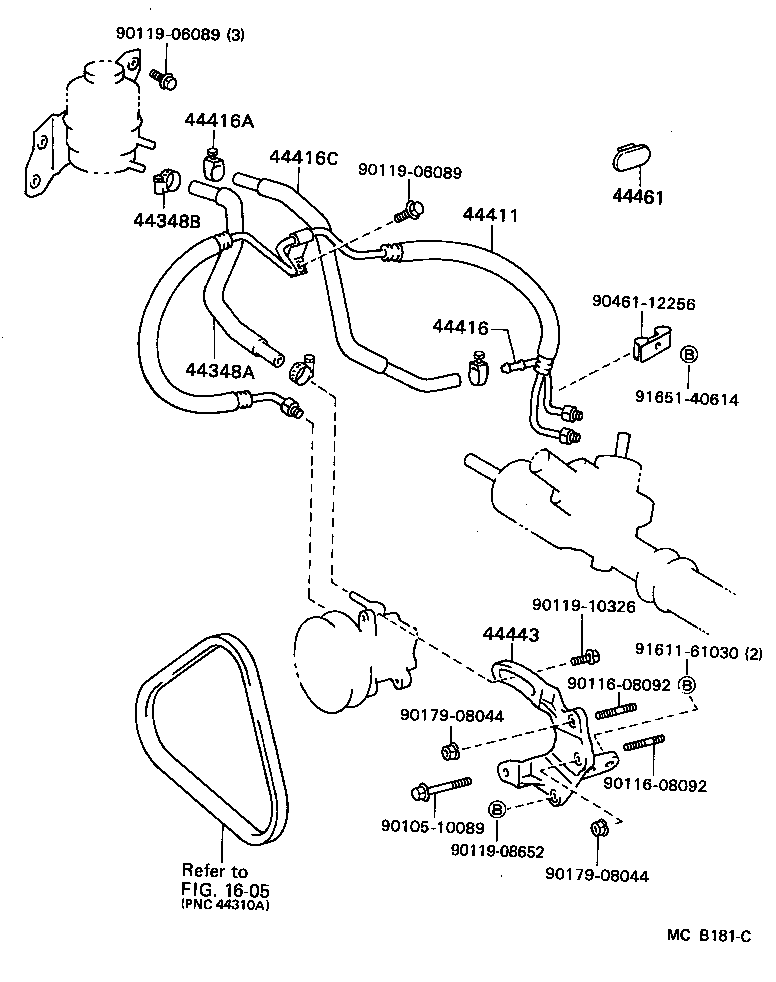

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44411 44416 44416A 44416C 44443 44461 9010510089 9011608092 9011608092 9011906089 9011906089 9011908652 9011910326 9017908044 9017908044 9046112256 9161161030 9165140614
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-22140

GX71..TWC,TWT

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

GX71,LX70,SX70..CBR,DSL,TD,TWC,TWT

 2
90460-26001

GX71,SX70

 2
44411 - HOSE, PRESSURE FEED
44411-22320

GX71..TWC

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22150

GX71,MX71,SX70

 1
44416-22150

GX71..EFI,TWC

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

GX71,LX70,MX71,YX70

 2
90460-01001

GX71,YX72

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
44412-22350

GX71..TWC,TWT

 1
44412-22350

GX71..TWC

 1
44443 - BRACKET, PUMP
44443-22050

GX71..TWC

 1
44461 - INSULATOR, TUBE REFRIGERANT
44461-22020

LX70..KYO,XG;LX70..XL..TD;GX71,MX71,SX70,YX7#..(AVT,GT,KYO)..(CBR,LPG,TBO,TWC,TWT)

 2
Common parts
90105-10089
90116-08092
90119-06089
90119-08652
90119-10326
90179-08044
90461-12256
91611-61030
91651-40614
Linked diagrams
1605
