GX71-DTMGF (1984)
Toyota Chaser
Production
Aug 1984
-
Aug 1988
Engine
1GGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

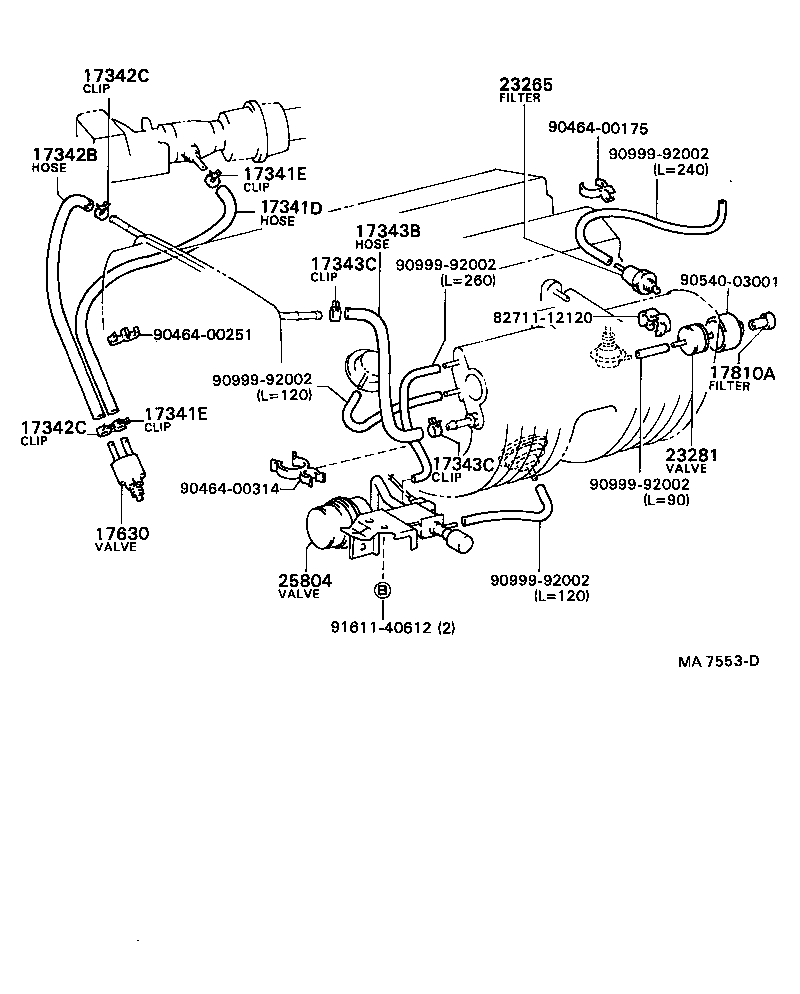

(8408-8608)1GGEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 90445-10015 |
1GGEU..GX71 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#..GX71 |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#..GX71 |
4 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 90445-10016 |
1GGEU..GX71 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GGEU..GX71 |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GGEU..GX71 |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-88300 |
1GG#..GX71 |
1 | ||
| 17343-70040 |
1GGEU..GX71 |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GG#..GX71 |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GG#..GX71 |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
1GG#..GX71 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
1GEU,1GG#..GX71 |
1 | ||
| 90925-06006 |
1GEU,1GG#..GX71 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
1GGEU..GX71 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
1GEU,1GGEU..GX71 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-88301 |
1GGEU..GX71 |
1 | ||
| 25804-88300 |
1GGEU..GX71 |
1 | ||
| 25804-88302 |
1GGEU..GX71 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90464-00175 | ||||
| 90464-00251 | ||||
| 90464-00314 | ||||
| 90540-03001 | ||||
| 90999-92002 | ||||
| 91611-40612 | ||||

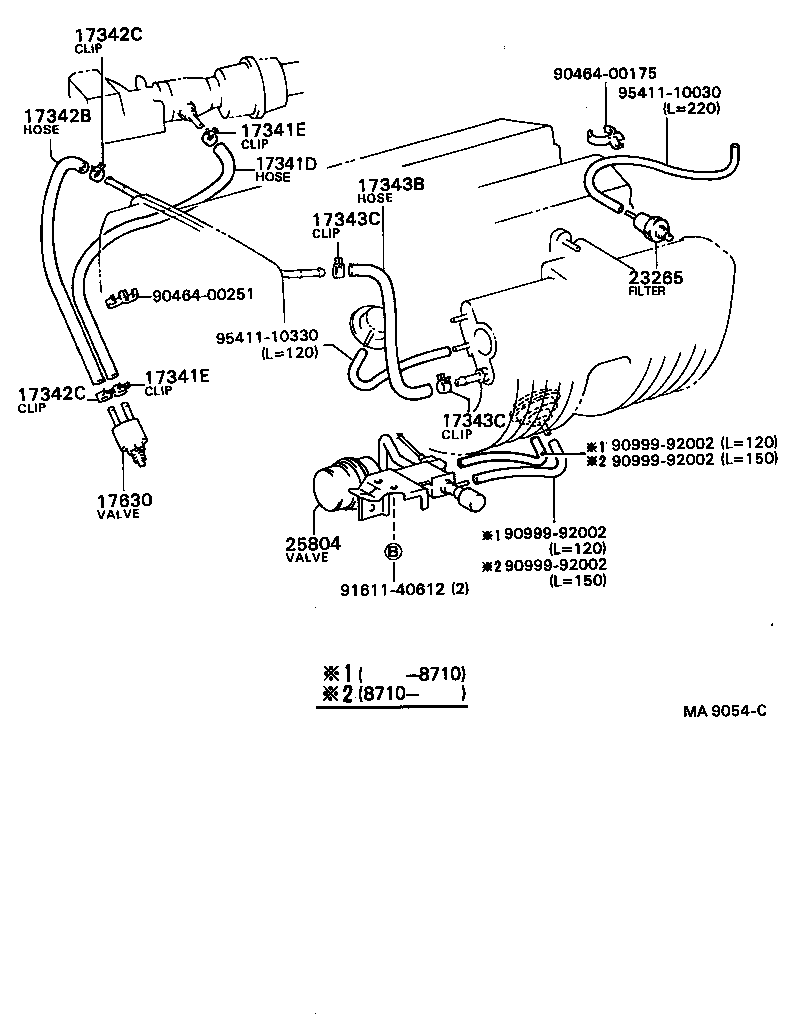

(8608- )1GGEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 90445-10015 |
1GGEU..GX71 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#..GX71 |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GG#..GX71 |
4 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 90445-10016 |
1GGEU..GX71 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GGEU..GX71 |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU,1GGEU..GX71 |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-88300 |
1GG#..GX71 |
1 | ||
| 17343-70040 |
1GGEU..GX71 |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GG#..GX71 |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GG#..GX71 |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
1GG#..GX71 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
1GGEU..GX71 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-88301 |
1GGEU..GX71 |
1 | ||
| 25804-88300 |
1GGEU..GX71 |
1 | ||
| 25804-88302 |
1GGEU..GX71 |
1 | ||
| Common parts | ||||
| 90464-00175 | ||||
| 90464-00251 | ||||
| 90999-92002 | ||||
| 91611-40612 | ||||
| 95411-10030 | ||||
| 95411-10330 | ||||
(8408- )1GEU,1GG#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
