GX71-DTMGF (1984)
Toyota Chaser
(8408-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

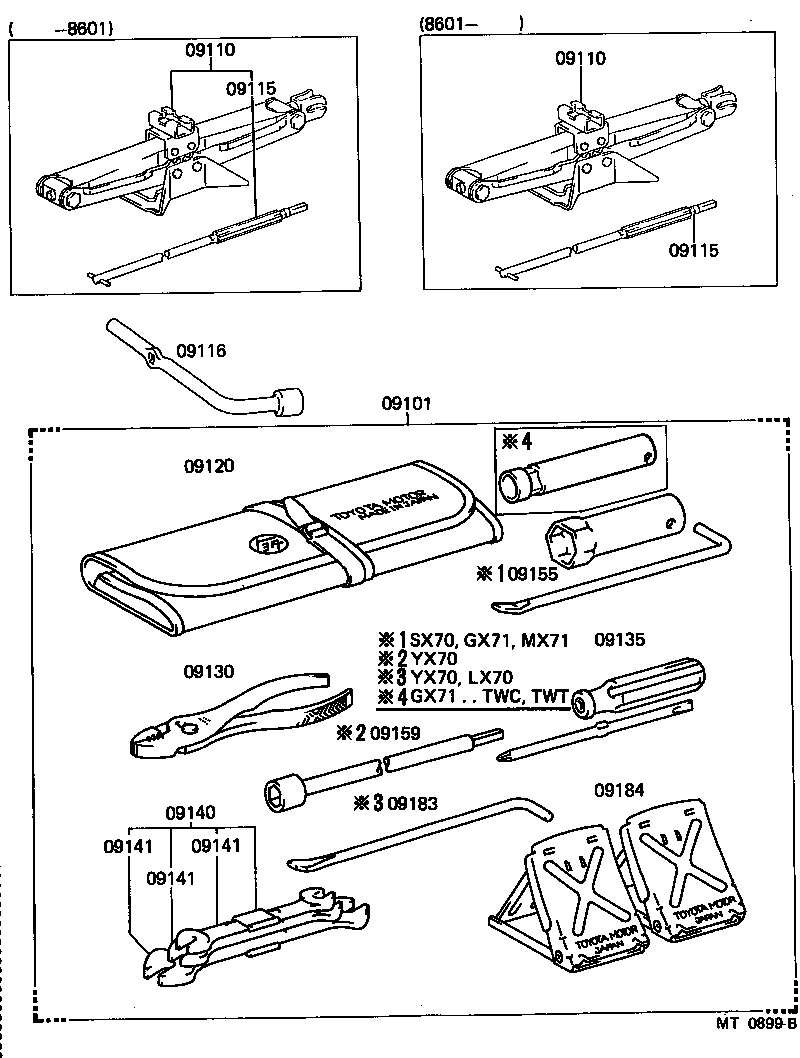

| 09101 - TOOL SET, STANDARD W/O JACK | ||||
| 09102-30015 |
GX71..TWC,TWT |
1 | ||
| 09110 - JACK ASSY | ||||
| 09111-14040 |
GX71,LX70,SX70,YX70 |
1 | ||
| 09111-22040 |
GX71,LX70,SX70,YX7# |
1 | ||
| 09118-22010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09111-14040 |
GX71,LX70,SX70,YX70 |
1 | ||
| 09111-22040 |
GX71,LX70,SX70,YX7# |
1 | ||
| 09118-22010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 09115 - ROD SUB-ASSY, JACK HANDLE | ||||
| 09115-24010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09115 - ROD SUB-ASSY, JACK HANDLE | ||||
| 09115-24010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09116 - LEVER, JACK HANDLE | ||||
| 09116-16010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-30020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09140 - SPANNER SET | ||||
| 09140-12011 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11417 |
GX71,LX70,MX71,SX70,YX70 14 X 17,14X17 |
1 | ||
| 99914-11012 |
GX71,LX70,MX71,SX70,YX70 10 X 12,10X12 |
1 | ||
| 99914-10810 |
GX71,LX70,MX71,SX70,YX7# 8 X 10,8X10 |
1 | ||
| 99914-11214 |
GX71,LX70,SX70,YX72 12 X 14,12X14 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11417 |
GX71,LX70,MX71,SX70,YX70 14 X 17,14X17 |
1 | ||
| 99914-11012 |
GX71,LX70,MX71,SX70,YX70 10 X 12,10X12 |
1 | ||
| 99914-10810 |
GX71,LX70,MX71,SX70,YX7# 8 X 10,8X10 |
1 | ||
| 99914-11214 |
GX71,LX70,SX70,YX72 12 X 14,12X14 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11417 |
GX71,LX70,MX71,SX70,YX70 14 X 17,14X17 |
1 | ||
| 99914-11012 |
GX71,LX70,MX71,SX70,YX70 10 X 12,10X12 |
1 | ||
| 99914-10810 |
GX71,LX70,MX71,SX70,YX7# 8 X 10,8X10 |
1 | ||
| 99914-11214 |
GX71,LX70,SX70,YX72 12 X 14,12X14 |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-00120 |
GX71..TWC,TWT |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||

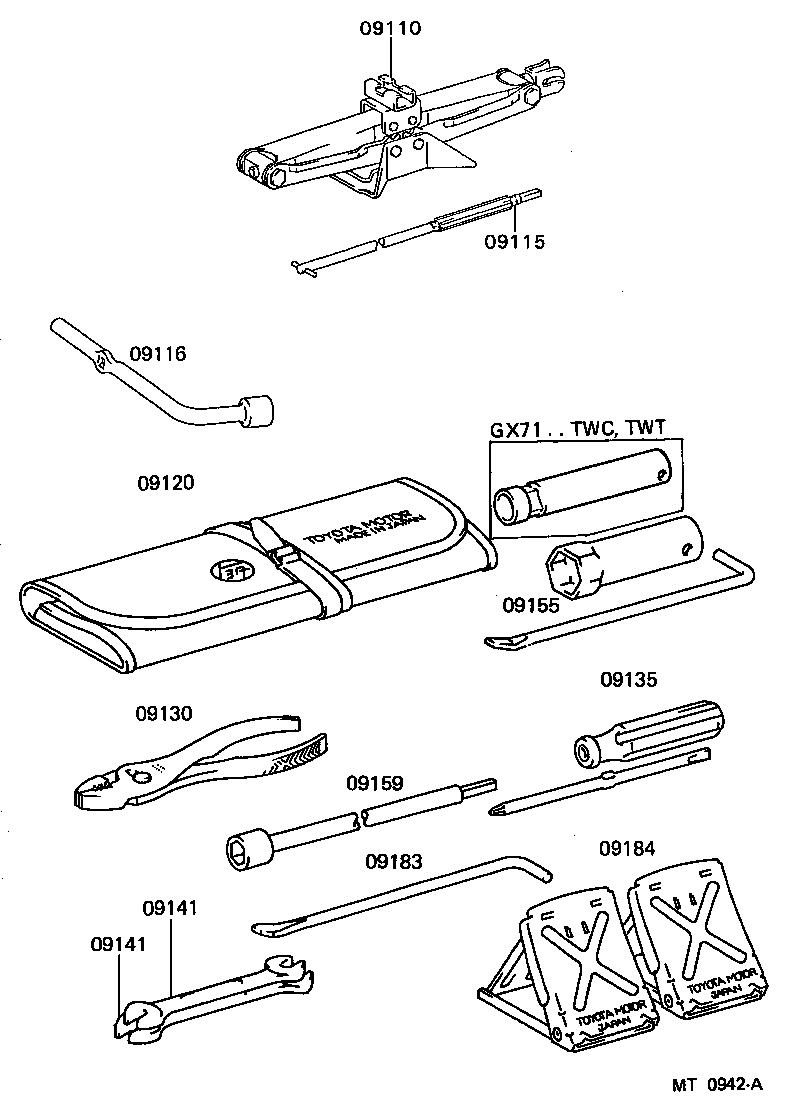

(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-14040 |
GX71,LX70,SX70,YX70 |
1 | ||
| 09111-22040 |
GX71,LX70,SX70,YX7# |
1 | ||
| 09118-22010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 09115 - ROD SUB-ASSY, JACK HANDLE | ||||
| 09115-24010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09116 - LEVER, JACK HANDLE | ||||
| 09116-16010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-30020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11417 |
GX71,LX70,MX71,SX70,YX70 14 X 17,14X17 |
1 | ||
| 99914-11012 |
GX71,LX70,MX71,SX70,YX70 10 X 12,10X12 |
1 | ||
| 99914-10810 |
GX71,LX70,MX71,SX70,YX7# 8 X 10,8X10 |
1 | ||
| 99914-11214 |
GX71,LX70,SX70,YX72 12 X 14,12X14 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11417 |
GX71,LX70,MX71,SX70,YX70 14 X 17,14X17 |
1 | ||
| 99914-11012 |
GX71,LX70,MX71,SX70,YX70 10 X 12,10X12 |
1 | ||
| 99914-10810 |
GX71,LX70,MX71,SX70,YX7# 8 X 10,8X10 |
1 | ||
| 99914-11214 |
GX71,LX70,SX70,YX72 12 X 14,12X14 |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-00120 |
GX71..TWC,TWT |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
