GX71-DTMGE (1984)
Toyota Chaser
Production
Aug 1984
-
Aug 1988
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(8408- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51205A - BRACKET SUB-ASSY, DIFFERENTIAL SUPPORT | ||||
| 51205-14010 |
GX71,MX71 |
1 | ||
| 51205-14010 |
GX71..EFI,TWT |
1 | ||
| 51207A - MEMBER SUB-ASSY, DIFFERENTIAL SUPPORT | ||||
| 51207-22900 |
GX71,MX71..EFI,TBO |
1 | ||
| 51207-22020 |
GX71,MX71..EFI,TBO |
1 | ||
| 51249 - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-22011 |
GX71..AVT,GT |
2 | ||
| 51249 - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-22011 |
GX71..AVT,GT |
2 | ||
| 51251 - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-22050 |
GX71..EFI |
1 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52271-22040 |
GX71,MX71..AVT,SXL |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-14010 |
GX71,MX71 |
2 | ||
| 52272-22020 |
GX71,MX71 |
2 | ||
| 52272-14010 |
GX71 |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-22020 |
GX71,MX71 |
1 | ||
| 52273-22040 |
GX71 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52274-22020 |
GX71 |
1 | ||
| 52273-22020 |
GX71,MX71 |
1 | ||
| 52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION | ||||
| 52279-14010 |
GX71,MX71 |
2 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-22020 |
GX71,MX71 |
2 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-14010 |
GX71,MX71 |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-14011 |
GX71,MX71 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-14010 |
GX71,MX71 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-22010 |
GX71 |
2 | ||
| 52286-14011 |
GX71,MX71 |
2 | ||
| Common parts | ||||
| 90109-12025 | ||||
| 90119-12025 | ||||
| 90119-12070 | ||||
| 90119-12086 | ||||
| 90119-12112 | ||||
| 90179-12017 | ||||
| 90179-12045 | ||||
| 90201-21001 | ||||
| 91616-40816 | ||||
| 91655-40825 | ||||
| Linked diagrams | ||||
| 1702 | ||||

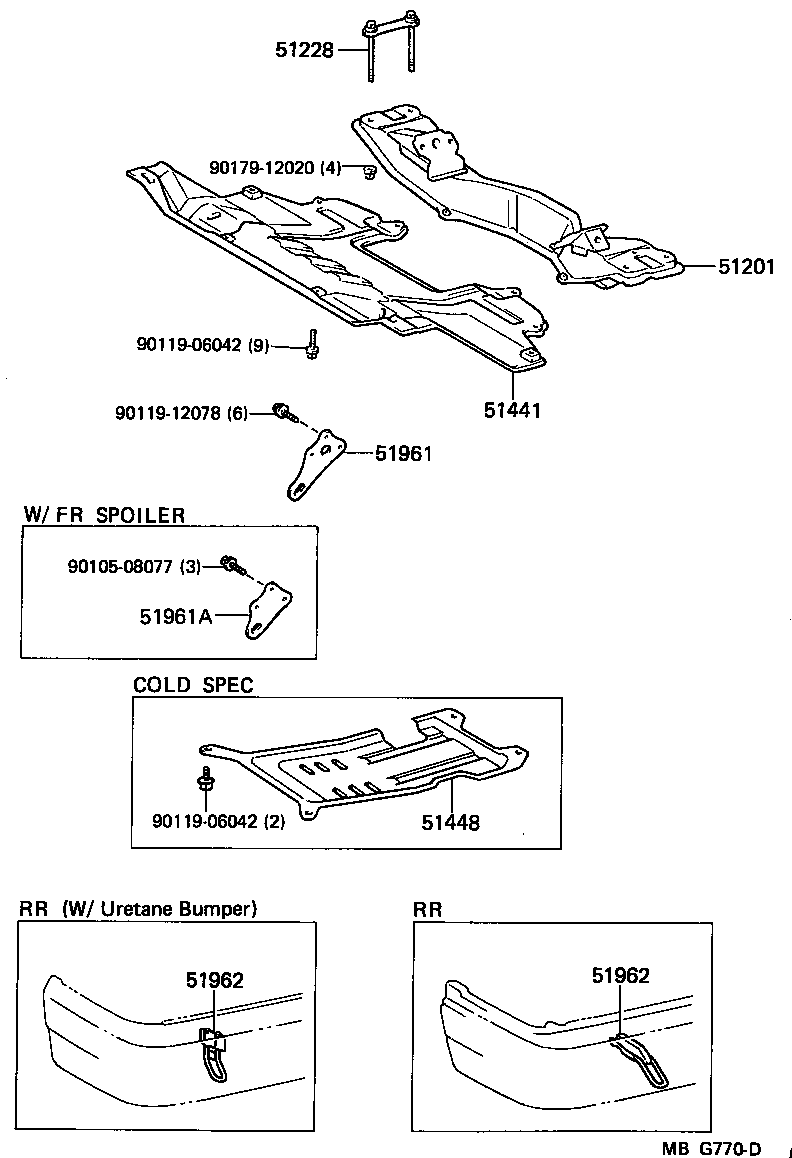

ILLUST NO. 1 OF 2(8408- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-22300 |
GX71,MX71..AVT,SXL |
1 | ||
| 51201-22380 |
GX71..EFI,TWT |
1 | ||
| 51201-22380 |
GX71 |
1 | ||
| 51228 - PLATE, SUSPENSION MEMBER SET | ||||
| 51229-22040 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-22140 |
GX71,MX71,YX7# |
1 | ||
| 51448 - PROTECTOR, OIL PAN | ||||
| 51447-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-22040 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 51961A - HOOK, NO.3 | ||||
| 51963-22060 |
GX71,MX71..AVT,GT W/SPOILER |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51965-22040 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
2 | ||
| 51962 - HOOK, NO.2 | ||||
| 51965-22040 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
2 | ||
| Common parts | ||||
| 90105-08077 | ||||
| 90119-06042 | ||||
| 90119-12078 | ||||
| 90179-12020 | ||||
