Toyota Chaser GX71 ALTERNATOR - JDM Part Detective

Part #	Description	Period	Qty

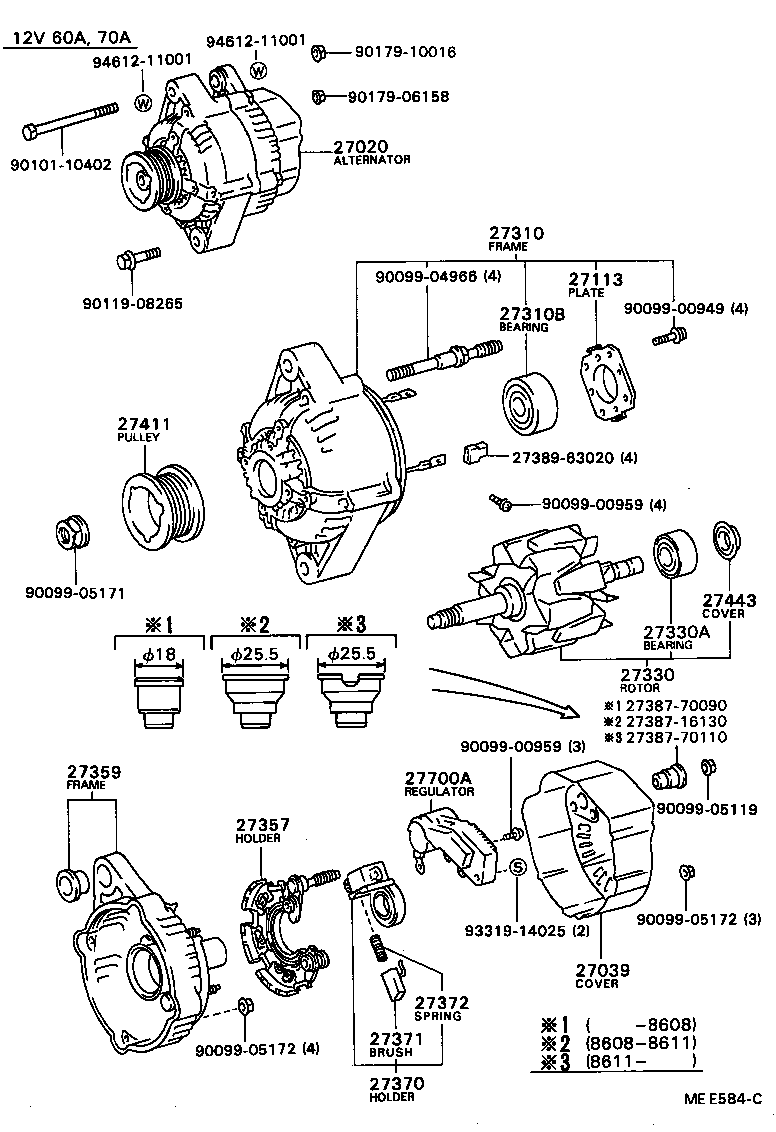

27020 - ALTERNATOR ASSY
27060-70080	1GEU..GX71 12V 60A,12V 60A	08/1984 - 12/1985	1
27060-70110	1GEU..GX71 12V 70A,12V 70A	12/1985 - 08/1986	1
27060-70111	1GEU..GX71 12V 70A,12V 70A	08/1986 - 08/1988	1
27039 - COVER, ALTERNATOR REAR END
27039-70081	1GEU..GX71 12V 70A	12/1985 - 08/1988	1
27039-70080	1GEU..GX71 12V 60A	08/1984 - 12/1985	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-63020	1G#,MTEU..GX71,MX71 12V 60A	08/1984 - 01/1985	1
27312-72100	1GEU,1GG#..GX71 12V 60A,70A	04/1986 - 08/1988	1
27312-72100	1GEU,1GG#,MTEU,2YPU..GX71,MX71,YX70 12V 60A,70A	01/1985 - 04/1986	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70080	1GEU..GX71 12V 60A	08/1984 - 01/1985	1
27310-70081	1GEU..GX71 12V 60A	01/1985 - 12/1985	1
27310-70111	1GEU..GX71 12V 70A	12/1985 - 08/1988	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10152	1G#..GX71 12V 60A,70A	08/1984 - 01/1985	1
90099-10159	1GEU,1GG#,MTEU..GX71,MX71 12V 60A,70A	01/1985 - 08/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-63021	1G#,MTEU..GX71,MX71 12V 60A,70A	08/1984 - 01/1985	1
27330-63021	1GEU,1GGTEU..GX71 12V 60A	08/1986 - 08/1988	1
27330-72101	1GEU,1GG#..GX71 12V 60A,70A	04/1986 - 08/1988	1
27330-72100	1GEU,1GG#,MTEU,2YPU..GX71,MX71,YX70 12V 60A,70A	01/1985 - 04/1986	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1GEU,1GG#,MTEU,2YPU,3YPU..GX71,MX71,YX7# 12V 60A,70A	08/1984 - 08/1988	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-70081	1GEU..GX71 12V 70A	11/1986 - 08/1988	1
27357-70080	1GEU..GX71 12V 60A,70A	08/1984 - 11/1986	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-70081	1GEU..GX71 12V 60A,70A	08/1984 - 08/1988	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011	1GEU..GX71 12V 60A,70A	08/1984 - 08/1988	1
27371 - BRUSH, ALTERNATOR
27371-63020	1GEU,1GG#,MTEU,2YPU..GX71,MX71,YX70 12V 60A,70A	08/1984 - 04/1986	2
27371-63020	1GEU,1GG#..GX71 12V 60A,70A	04/1986 - 08/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	1G#,MTEU..GX71,MX71 12V 60A	08/1984 - 01/1985	2
27372-72100	1GEU,1GG#,MTEU,2YPU..GX71,MX71,YX70 12V 60A,70A	01/1985 - 04/1986	2
27372-72100	1GEU,1GG#..GX71 12V 60A,70A	04/1986 - 08/1988	2
27411 - PULLEY, ALTERNATOR
27411-70090	1GEU..GX71 12V 60A	08/1984 - 01/1985	1
27411-70091	1GEU,1GGEU..GX71 12V 70A	08/1986 - 08/1988	1
27411-70091	1GEU..GX71 12V 60A,70A	01/1985 - 08/1986	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1GEU,1GG#,MTEU,2YPU,3YPU..GX71,MX71,YX7# 12V 60A,70A	08/1984 - 08/1988	1
27700A - REGULATOR ASSY, GENERATOR
27700-63021	1GEU,1GG#,MTEU..GX71,MX71 12V 60A,70A	08/1984 - 08/1986	1
27700-63021	1GEU,1GGTEU..GX71 12V 60A,70A	08/1986 - 08/1988	1
Common parts
27387-16130
27387-70090
27387-70110
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10402
90119-08265
90179-06158
90179-10016
93319-14025
94612-11001

GX71-DTMGE (1984)

(8408- )1GEU
