GX71-DTMGE (1984)
Toyota Chaser
Production
Aug 1984
-
Aug 1988
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )1GEU

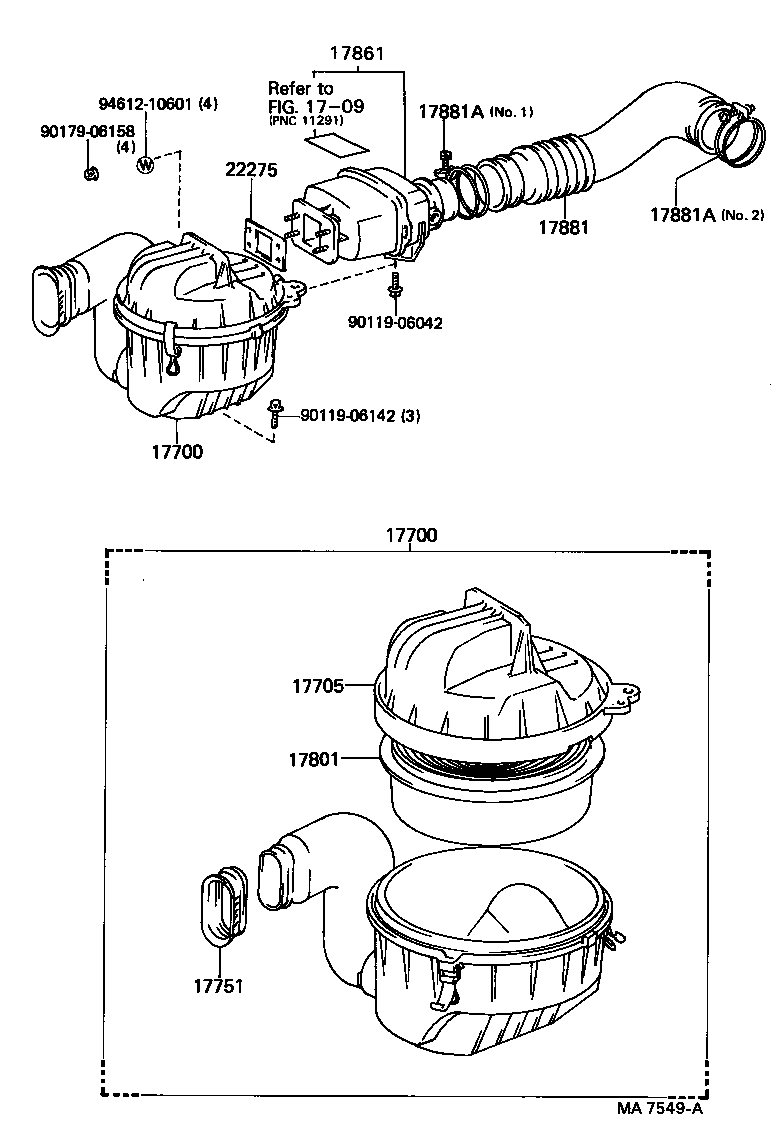

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-70031 |
1GEU,1GG#..GX71 |
1 | ||
| 17700-70030 |
1GEU,1GG#..GX71 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-70031 |
1GEU,1GG#..GX71 |
1 | ||
| 17700-70030 |
1GEU,1GG#..GX71 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-70030 |
1GEU,1GG#..GX71 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-70010 |
1GEU,1GG#..GX71 |
1 | ||
| 17751-70011 |
1GEU,1GG#..GX71 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70020 |
1GEU,1GG#..GX71 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-70010 |
1GEU..GX71 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-70101 |
1GEU..GX71 |
1 | ||
| 17881-70100 |
1GEU..GX71 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
1GEU..GX71 NO.1 |
1 | ||
| 96111-10800 |
1GEU..GX71 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
1GEU..GX71 NO.1 |
1 | ||
| 96111-10800 |
1GEU..GX71 NO.2 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
1GEU,1GG#..GX71 |
1 | ||
| Common parts | ||||
| 90119-06042 | ||||
| 90119-06142 | ||||
| 90179-06158 | ||||
| 94612-10601 | ||||
| Linked diagrams | ||||
| 1709 | ||||
